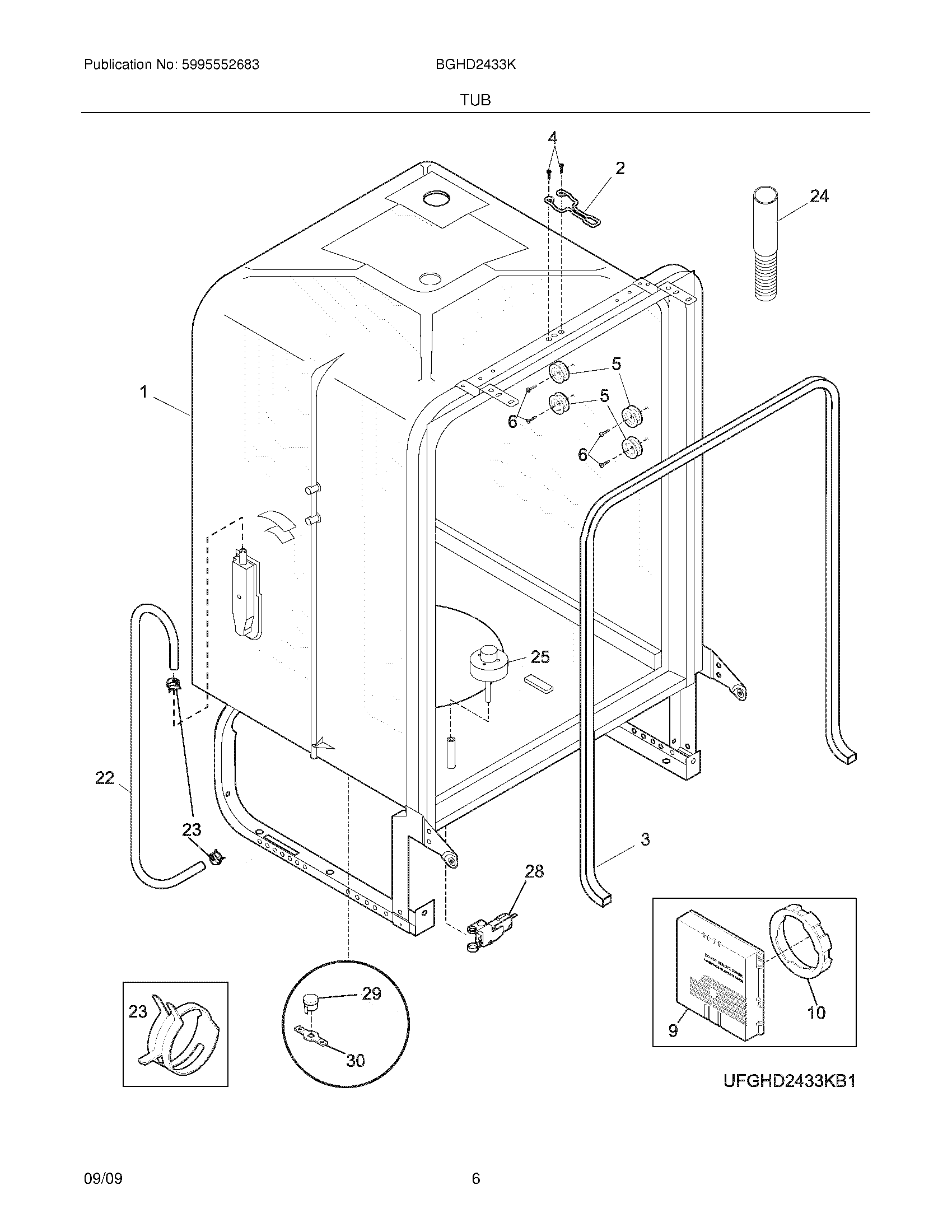

BGHD2433KF1 07 – TUB

Products

Position	Product
NI	WCI 154200601
NI	WCI 5300807270
NI	808690701 Frigidaire Dishwasher Screw
NI	154701001 Frigidaire Dishwasher Service Kit Splash Shield
NI	154380601 Frigidaire Dishwasher Clamp Assembly
NI	154297701 Frigidaire Dishwasher Screw
NI	5304520581 Frigidaire Dishwasher Insulation
NI	154691601 Frigidaire Dishwasher Cover
NI	154641601 Frigidaire Dishwasher Insulation
NI	154200701 Frigidaire Dishwasher Screw
1	WCI 154729502
2	5304532796 Frigidaire Dishwasher Strike
3	154827601 Frigidaire Dishwasher Tub Gasket
4	WCI 154200602
5	5304506916 Frigidaire Dishwasher Assembly-Roller
6	5303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
9	5304523304 Frigidaire Dishwasher Blower Vent Assembly
10	154562904 Frigidaire Bezel
22	5304523457 Frigidaire Inlet Hose
23	CLAMP, HOSE
24	807117001 Frigidaire Dishwasher Drain Hose
25	5304506520 Frigidaire Dishwasher Float Assembly
28	FLOAT SWITCH ASSY
29	5304525221 Frigidaire Dishwasher Thermostat
30	154241101 Frigidaire Dishwasher Retainer
