BGHS2634KP2 13 – SYSTEM

BGHS2634KP2 13 – SYSTEM

Written by

in

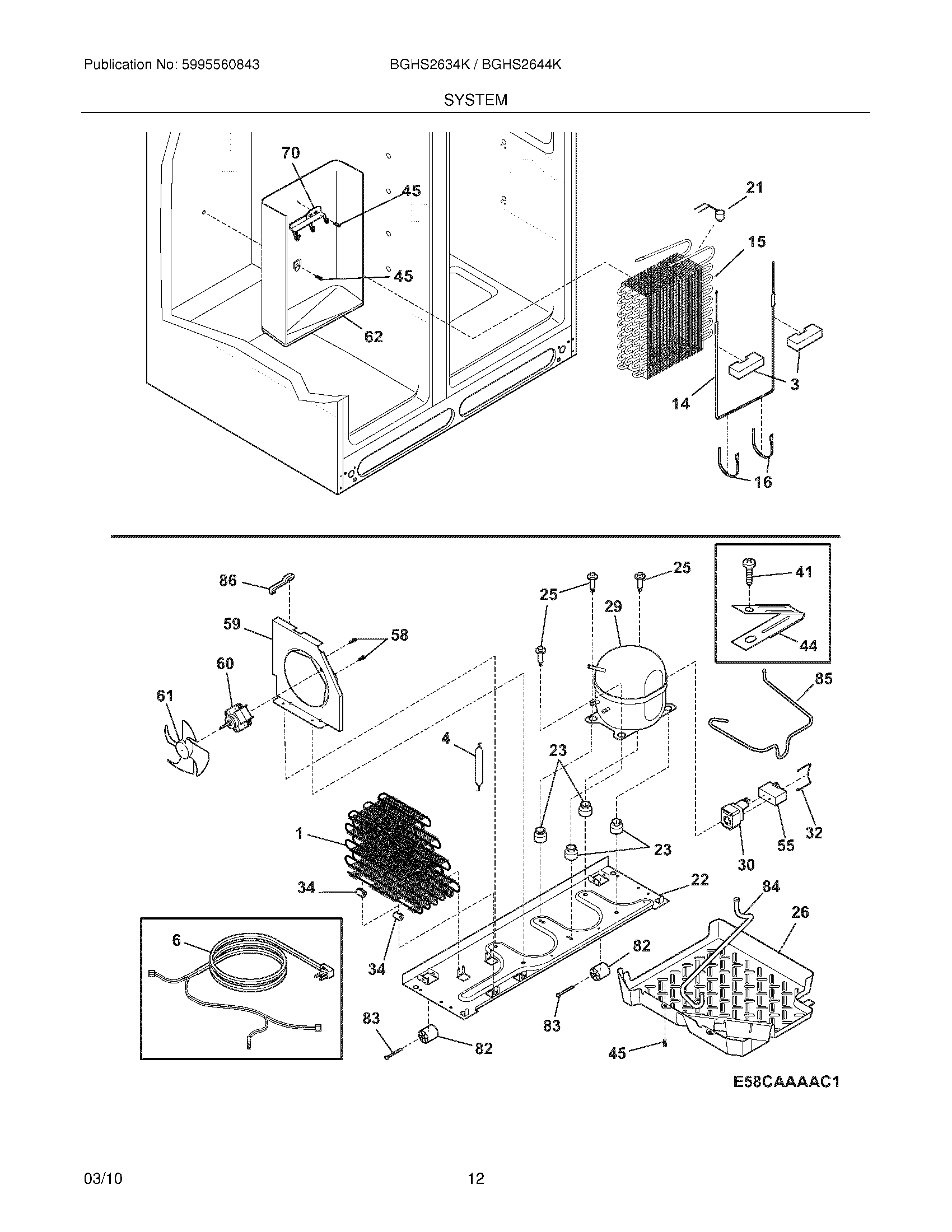

BGHS2634KP2 13 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	WCI 5303918222
NI	241852501 Frigidaire Refrigerator Clip
NI	WCI 241519902
NI	WCI 242008702
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918480 Frigidaire Refrigerator Evaporator Kit
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	WCI 240330011
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241697603 Frigidaire Defrost Pan
29	5304475098 Frigidaire Refrigerator Compressor Kit
30	241707701 Frigidaire Refrigerator Starter
32	241650901 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	5304464438 Frigidaire Compressor Run Capacitor
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304532798 Frigidaire Refrigerator Drain Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	241856909 Frigidaire Refrigerator Connector Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
