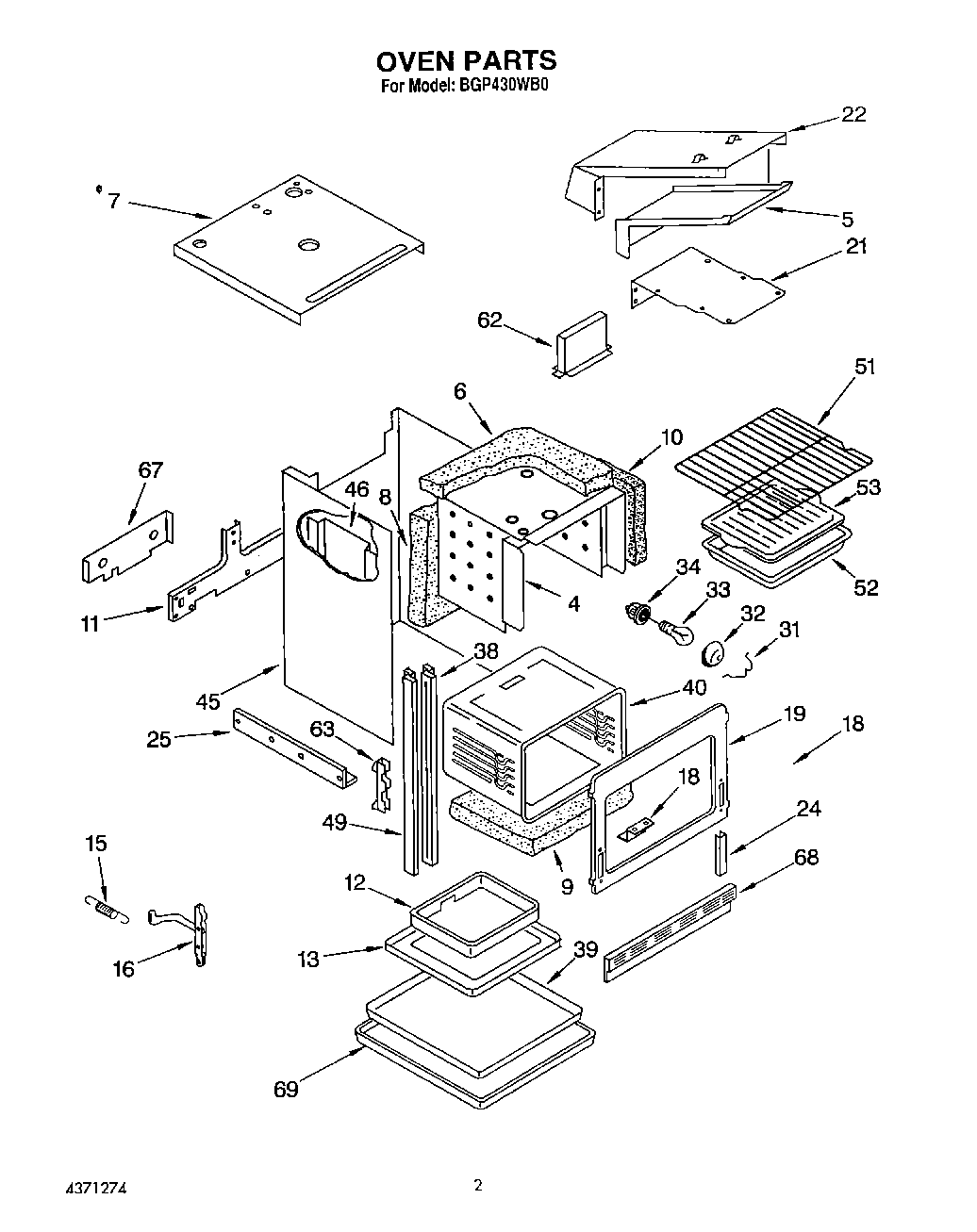

BGP430WB0 02 – OVEN

Products

Position	Product
4	Shield, Top And Sides
5	Flue
6	Insulation, Top & Sides
7	Top, Wrapper
7	Screw, 8-22 (5)
8	Insulation, Back
9	Insulation, Bottom
10	Insulation, Top
11	Bracket, Safety Valve
12	Box, Oven Burner
12	WP308685 Whirlpool Microwave Screw
13	Bottom, Oven
15	Spring, Door (2)
16	Hinge, Door
18	Shield, Vent
19	Frame, Front
21	Shield, Flue Bottom
22	WP488729 Whirlpool Refrigerator Door Screw
22	Shield, Flue Top
24	Support, Front (2)
25	Support, Height Adjustment (2)
25	Trim, Top (Screw, No.6x32x1/2 (6))
31	Retainer, Lens
32	Lens, Oven Light
33	RANGE ONLY 40W 120V APPL BULB
34	W10856866 Whirlpool Light Socket
38	Trim, Inner (Right Hand)
38	Trim, Inner (Left Hand)
39	Shield, Base
40	Liner, Oven
45	Wrapper, Back And Sides
46	Shield, Body Sides
49	Trim, Outer Side (White)
49	Trim, Outer
51	Rack, Oven Regular
52	Pan, Broiler
53	Insert, Broiler Pan
62	Adaptor, Flue
63	Channel, Hinge
67	Screw, 10-24 x 3/8 (2)
67	Shield, Housing
68	WPL 816901
68	WPL 816410
69	WPL 816908
