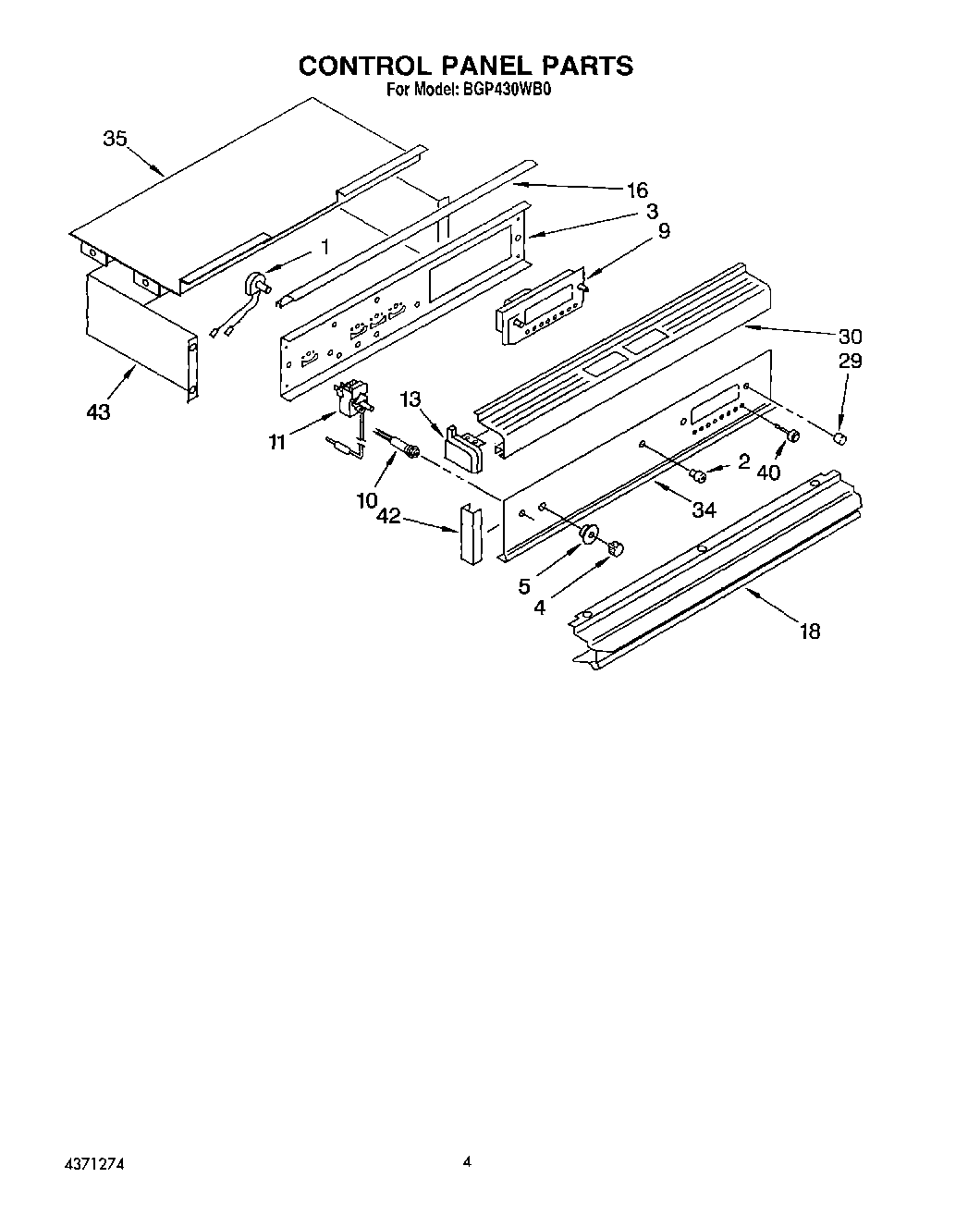

BGP430WB0 03 – CONTROL PANELadmin2025-04-26T12:06:01+00:00BGP430WB0 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Switch, Oven Light |
| 2 | Bezel, Switch |
| 3 | Plate, Control Mtg |
| 3 | Screw, 10-24 x 3/8 (2) |
| 4 | Knob, Thermostat |
| 5 | Spacer, Dial |
| 9 | Clock |
| 10 | Light, Indicator |
| 11 | Thermostat |
| 13 | Endcap (Right Hand) |
| 13 | Endcap (Left Hand) |
| 16 | Deflector, Heat (Black) |
| 16 | Deflector, Heat (Screw, No.6x18x1/4 (3)) |
| 18 | Trim, Center Vent |
| 29 | Knob, Clock (3) |
| 30 | Trim, Top |
| 30 | Trim, Top (Screw, No.6x32x1/2 (6)) |
| 34 | Panel, Control |
| 35 | Cover, Control |
| 40 | Button, Control, (8) |
| 42 | Trim, Control Panel (2) (Black) |
| 43 | Shield, Controls |
| 43 | Screw, 8-22 (5) |
