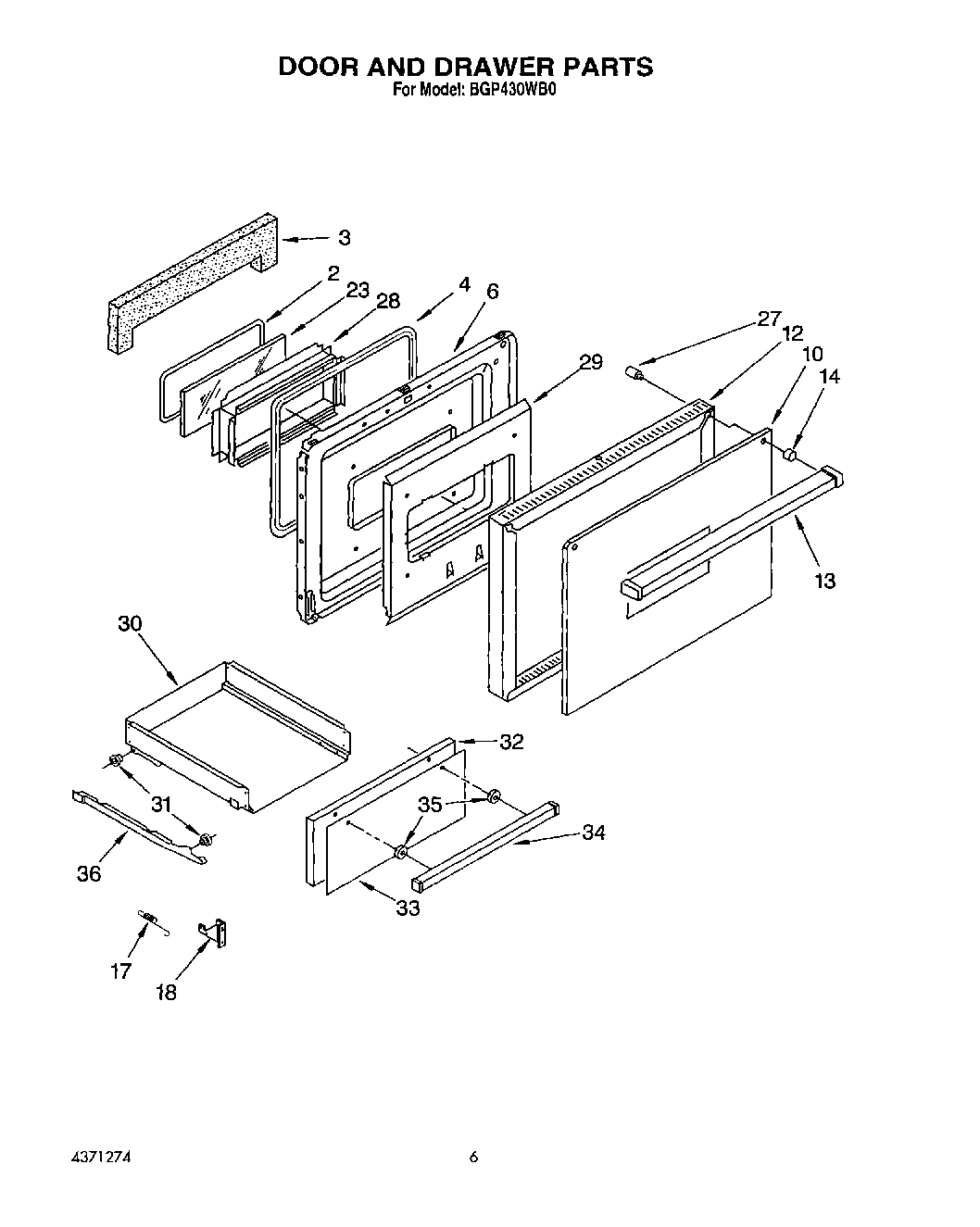

BGP430WB0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Guide, Use And Care
	Installation Instructions
2	Seal, Window
3	Insulation, Door
4	Seal, Door
6	Liner, Door
10	Glass, Outer Door (White)
10	Glass, Outer Door (Black)
12	Back Splash (Screw (4) 10AB x 1/2“)
12	Frame, Door
13	Handle, Door (Screw, No.10x24x21/4 (2))
13	Handle, Drawer (Black)
14	Spacer, Handle
17	Spring, Broiler
18	Hinge, Broiler (Right Hand)
18	Hinge, Broiler (Left Hand)
23	Glass, Inner
27	Spacer, Handle
28	Screw, 10-24 x 3/8 (2)
28	Retainer, Glass
29	Panel, Airwash
30	Drawer, Broiler
30	Screw, No.8x18x3/8 (4)
30	Panel, Broiler Drawer Bottom
31	Roller
32	Panel, Inner Door
33	Glass, Drawer
34	Handle, Door
34	Screw, No.10x24x5/8
35	Spacer, Handle
36	Track, Drawer (Left Hand)
36	Track, Drawer (Right Hand)
36	WP308685 Whirlpool Microwave Screw
36	W10080180 Whirlpool Nut
