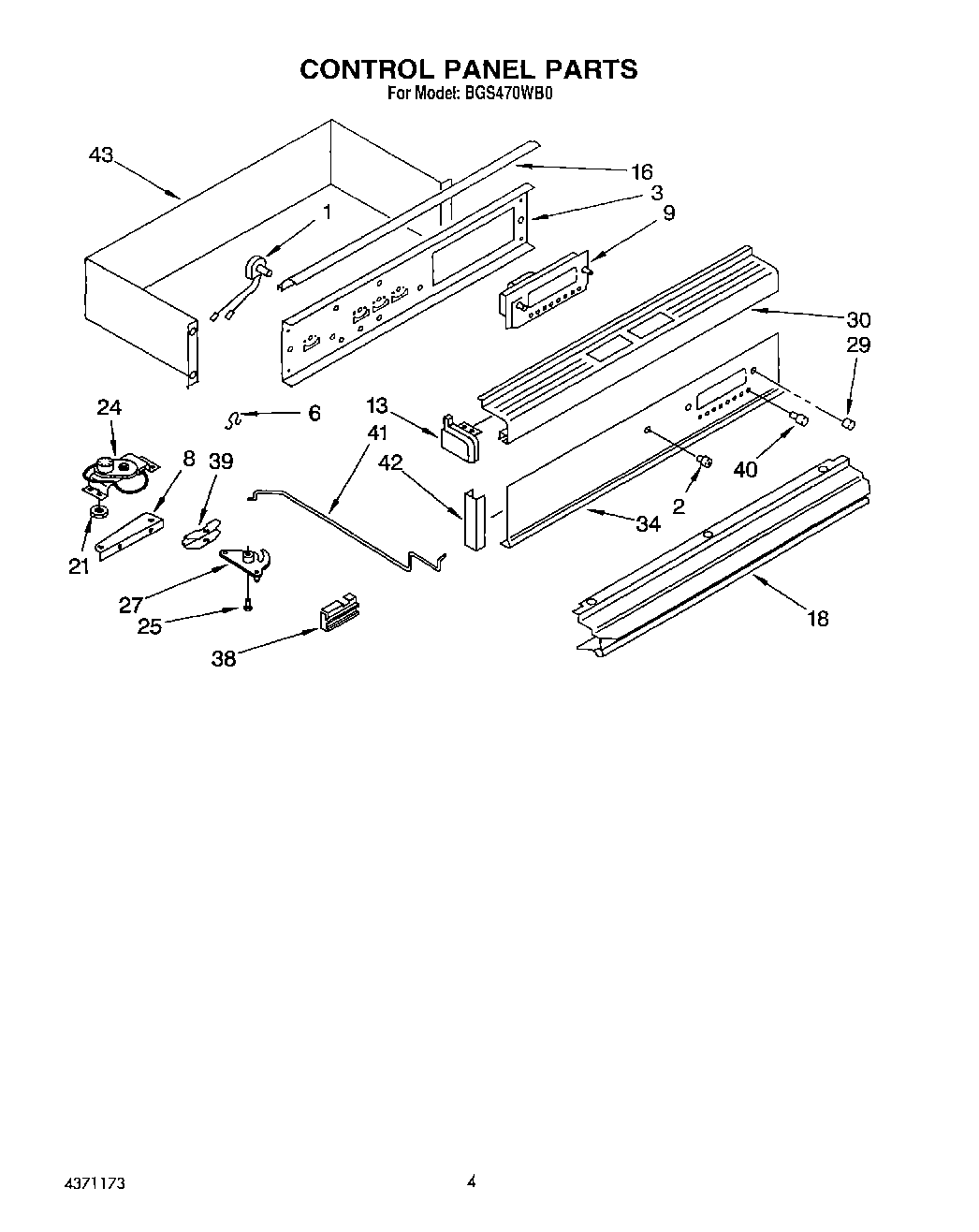

BGS470WB0 03 – CONTROL PANEL

Products

Position	Product
1	Switch, Oven Light
2	Bezel, Switch (Black)
3	Plate, Instrument Mtg.
6	Fastener, Wire
8	Base, Latch Motor
9	Screw, No.6x32x1/2
9	Nut, 6-32 (6)
9	Clock/Oven Control
13	Endcap (Right Hand)
13	Endcap (Left Hand)
16	Deflector, Heat (Screw, No.6x18x1/4 (3))
16	Deflector, Heat (Black)
18	Trim, Center Vent (Black)
21	W10080180 Whirlpool Nut
24	Motor, Lock
24	Screw, 10-24 x 3/8 (2)
25	Stud, Latch
27	Lever, Lock
29	Knob, Oven Control
30	Trim, Top (Black)
30	Trim, Top (Screw, No.6x32x1/2 (6))
34	Panel, Control (Black)
38	Cover, Latch
39	Base, Latch Motor
40	Button, Control, (8)
41	Rod, Latch Support
42	Trim, Control Panel (2) (Black)
43	Screw, 8-22 (5)
43	Shield, Controls
