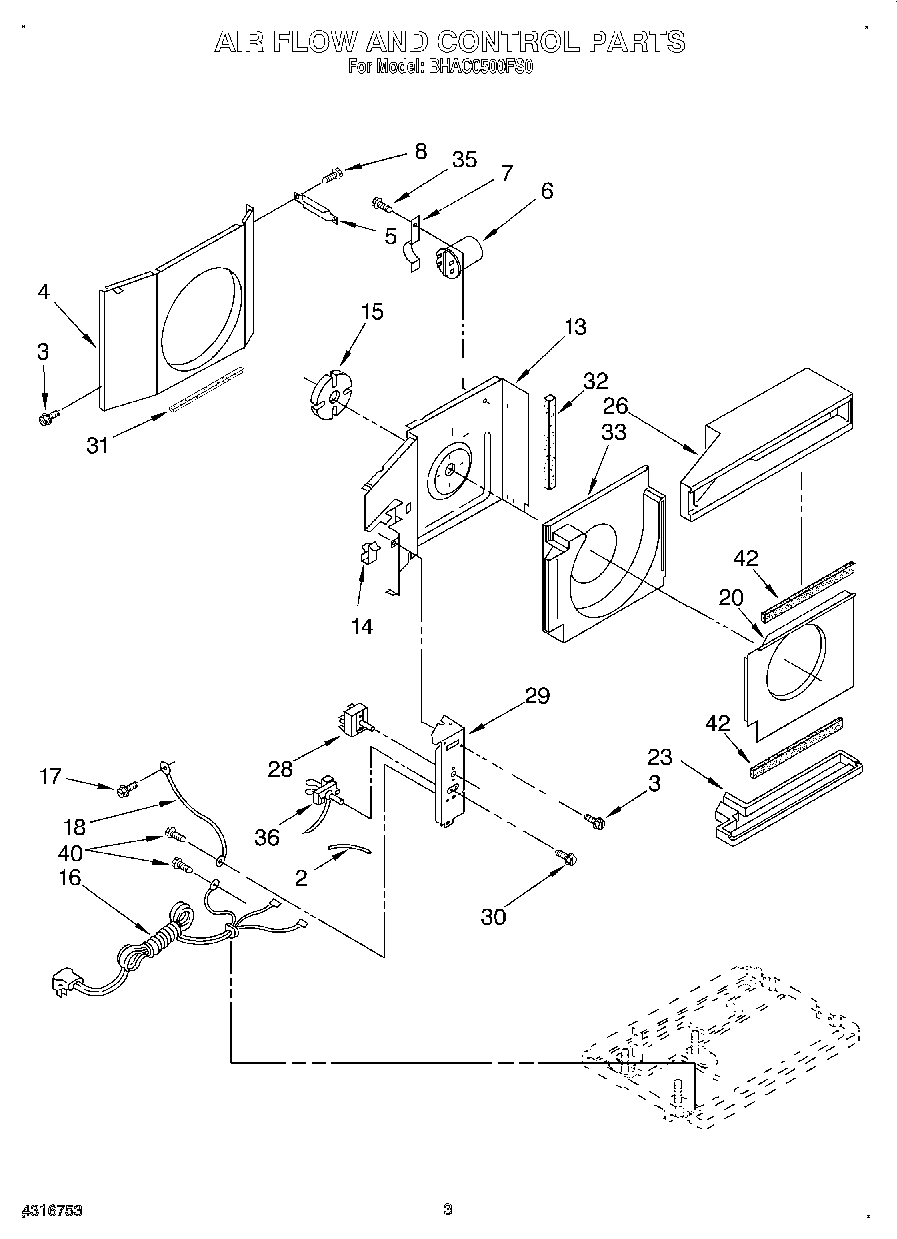

BHAC0500FS0 02 – AIRFLOW AND CONTROL

Products

Position	Product
2	Insulation, Sleeve
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	WP1163283 Whirlpool Air Conditioner Screw
13	Wall, Dividing
14	Clamp, Wiring
15	Insulation, Motor
16	Cord, Appliance
18	Wire, Ground
20	Shroud, Evaporator
23	Pan, Evaporator
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
35	Screw, 8 x 3/8
36	Control, Temperature
40	Screw 8-18 x .295
42	Seal (2)
