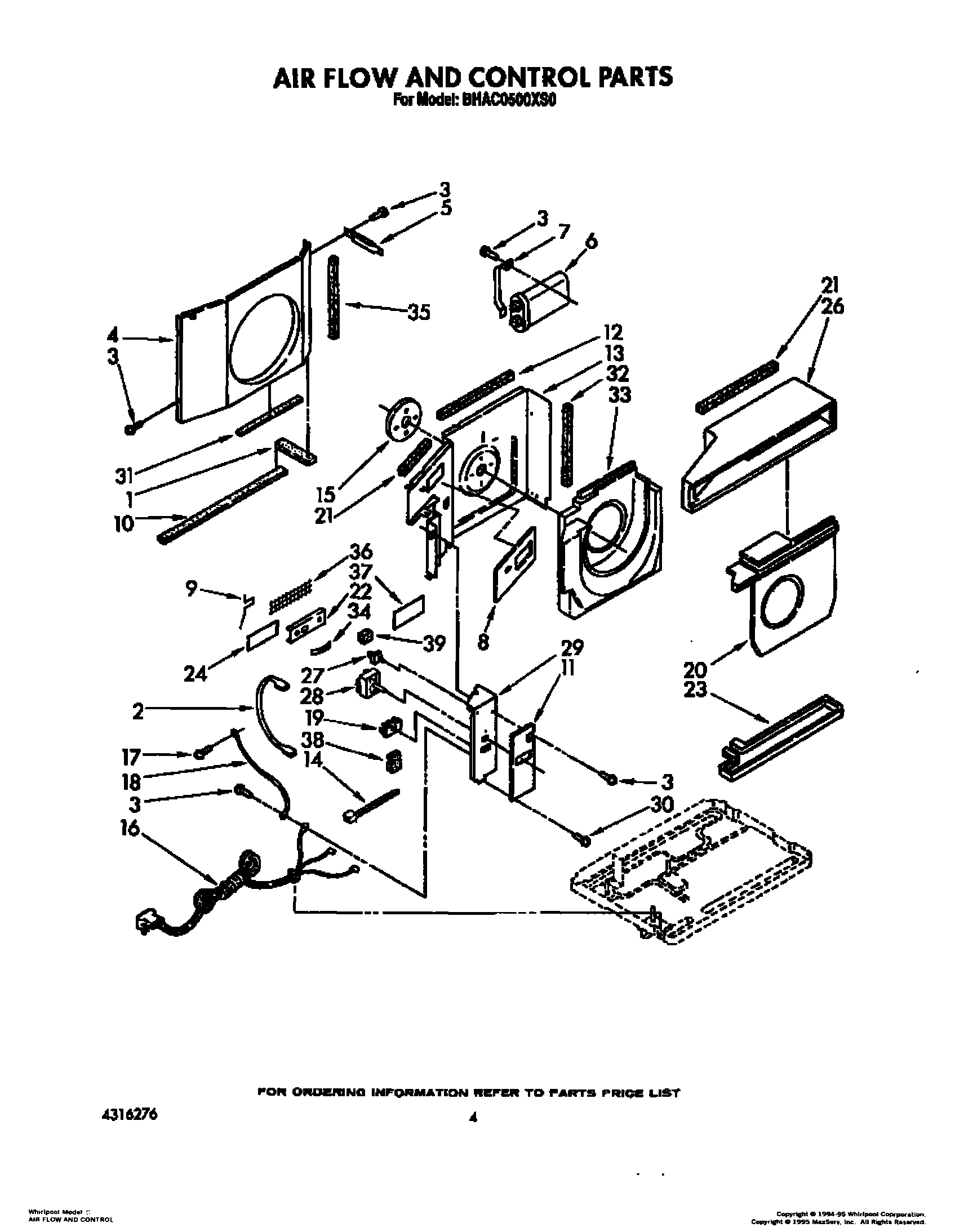

BHAC0500XS0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Wire, Jumper
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Run
7	Bracket, Capacitor
8	Insulation, Exhaust Door
9	Arm, Exhaust Door
10	Seal
11	Insulation, Control Panel
12	WP854334 Whirlpool Air Conditioner Sealing Strip
13	Wall, Dividing
14	WPW10339879 Whirlpool Wire Tie
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Control, Temperature
20	Orifice, Air Housing
22	Door, Exhaust
23	Pan, Evaporator
24	Barrier Protective
26	Hood, Air Housing
27	Actuator, Door
28	Switch, Rotary
29	Panel, Control
30	Screw, 6-32 x .175
33	Housing, Air
34	Spring, Retainer
35	Seal, Condenser (R.S.)
36	Screen, Exhaust Door
37	Spacer
38	Sealer, Tube
39	Sealer, Tube
