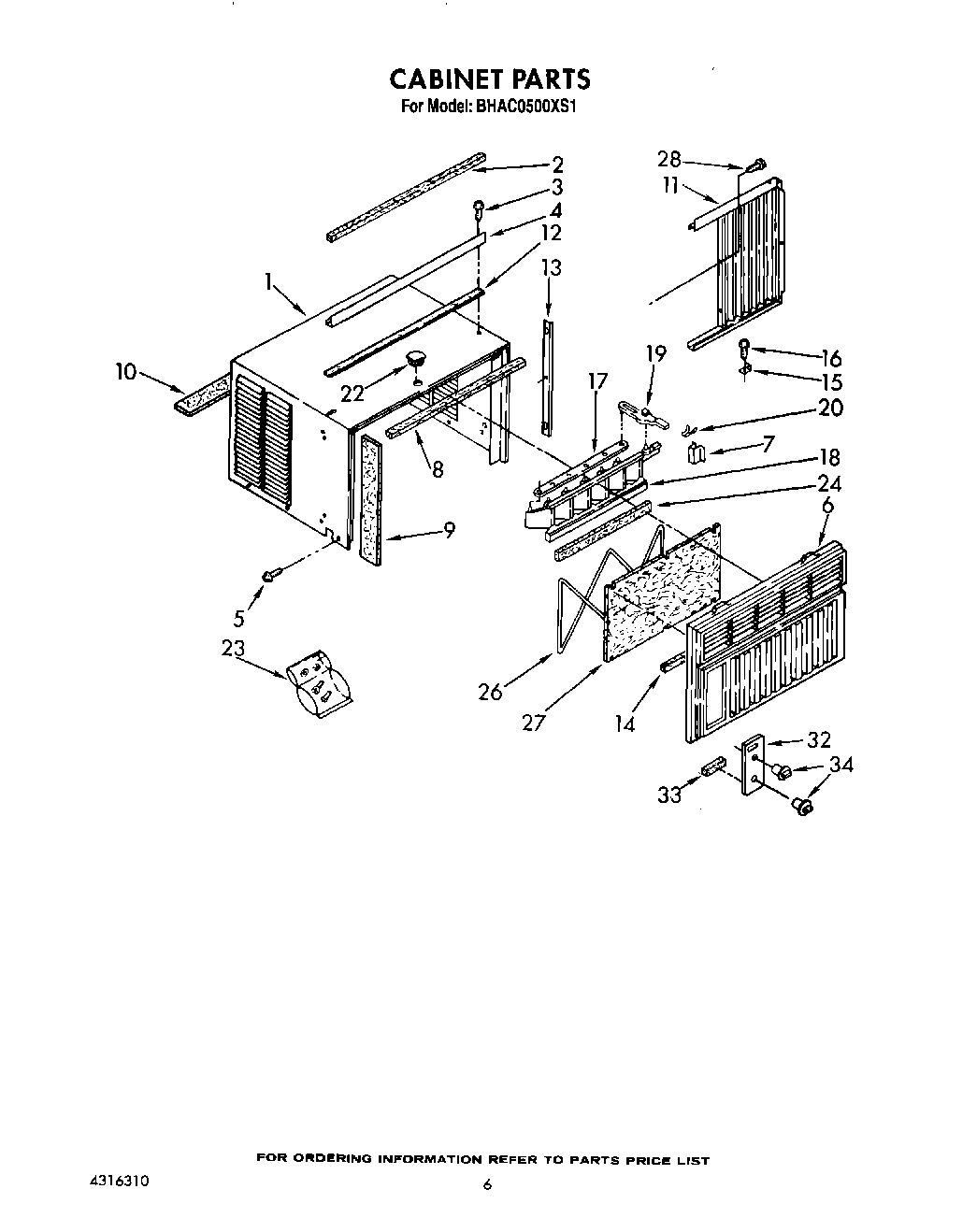

BHAC0500XS1 04 – CABINET

Products

Position	Product
1	Cabinet
2	Gasket, Meeting Rail
3	WP308685 Whirlpool Microwave Screw
4	Channel, Top
5	WP489069 Whirlpool Compactor Screw
6	Front, Cabinet Assembly
7	Clip, Vertical Louver
8	Seal
9	Insulation, Side
10	Insulation, Top
11	Housing, Curtain (L.S.)
11	Housing, Curtain (R.S.)
12	Seal, Strip
13	Retainer, Curtain (2)
15	Bracket
16	Screw, Wood 8-15 x .750
17	Link, Louver (2)
18	Louver, Vertical
19	Handle, Louver (2)
20	Detent Spring (2)
22	Cover, Hole
23	Bag, Accessory
24	Seal, Vertical Louver
26	Retainer, Filter
27	Filter
28	Screw, 8 x 7/16
32	Escutcheon
33	WP854334 Whirlpool Air Conditioner Sealing Strip
34	Knobs, (3)
