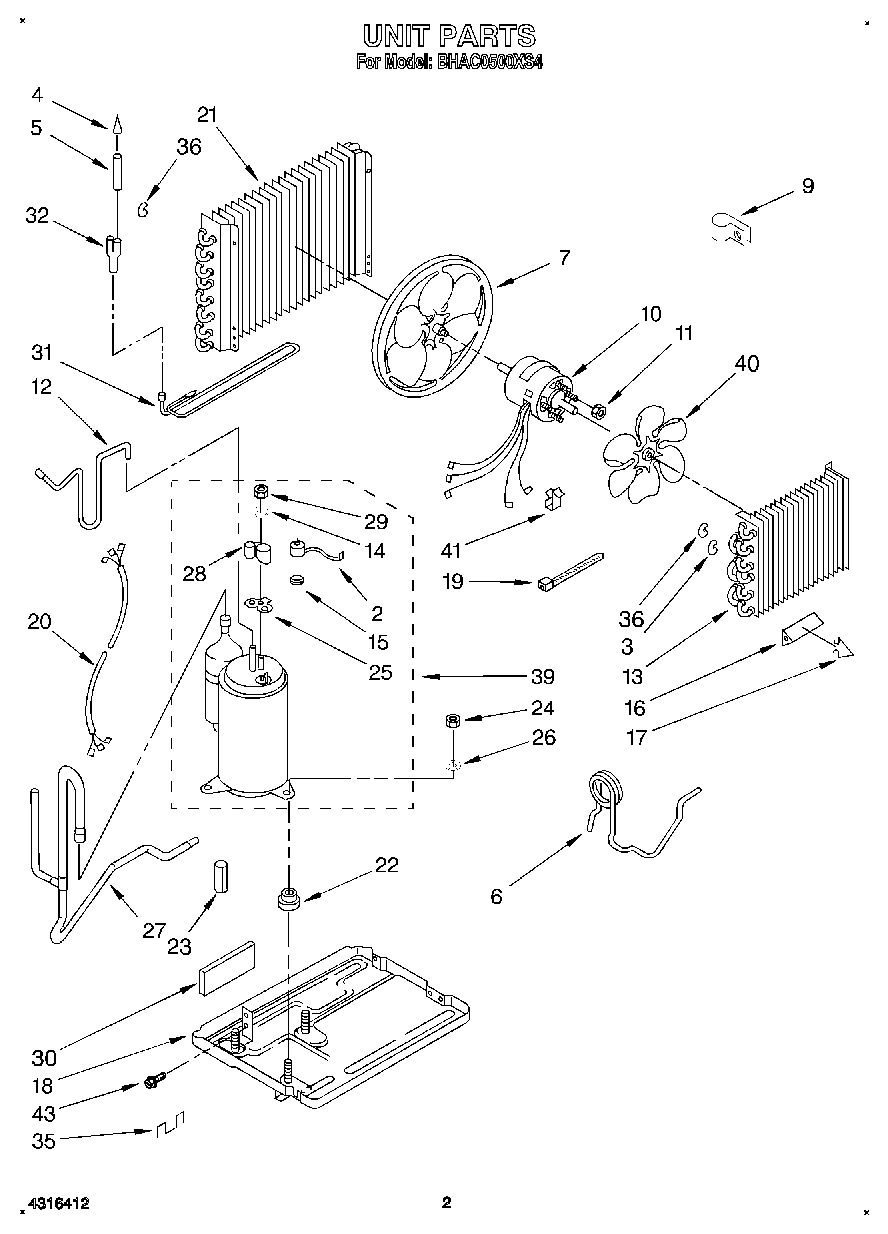

BHAC0500XS4 02 – UNIT, LITERATURE

Products

Position	Product
	Instructions, Installation
	Guide Operation
	Wiring Diagram
	Tech Sheet
2	WP1161170 Whirlpool Air Conditioner Overload
3	Bend, Return Condenser (4)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
9	Clamp, Tube (2)
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Discharge
13	Evaporator
14	Gasket, Nut
15	Spring, Overload
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Condenser
22	Grommet
23	WPL 1162344
24	Nut, Hex (4)
25	Gasket, Terminal Cover
26	WP120393 Whirlpool Washer Assembly
27	Tube, Suction
28	Cover, Terminal
29	WP950027 Whirlpool Mounting Nut
30	Seal, Anti-Rub
31	Tube, Condenser Extension
32	Tube, Flow Divider
35	Clip, Mtg. (2) (Base to Front)
36	Bend, Return Condenser (10)
39	Compressor Assembly
40	Blade, Fan
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
