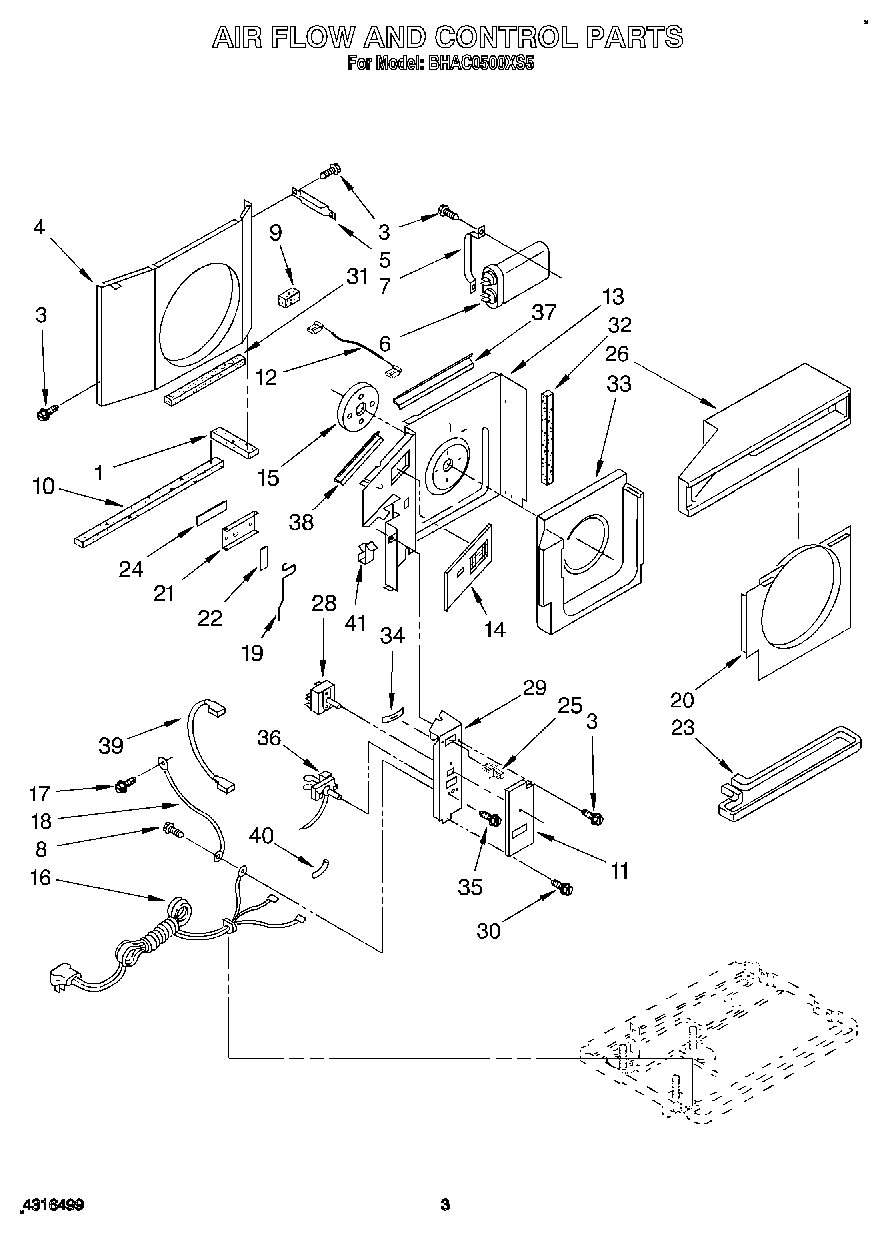

BHAC0500XS5 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
3	WP489069 Whirlpool Compactor Screw
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
8	Screw 8-18 x .295
9	Seal, Condenser (R.S.)
10	Seal
11	Insulation, Control Panel
12	Wire, Lead
13	Wall, Dividing
14	Screen/Insul. Assembly
15	Insulation, Motor
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
19	Arm, Exhaust Door
20	Shroud, Evaporator
21	Door, Exhaust
22	Spacer
23	Pan, Evaporator
24	Barrier Protective
25	Actuator, Door
26	Hood, Air Housing
28	Switch, Rotary
29	Panel, Control
30	Screw, 8-18 x 3/8
32	WP854334 Whirlpool Air Conditioner Sealing Strip
33	Housing, Air
34	Spring, Retainer
35	Screw, 6-32 x .175
36	Control, Temperature
37	Guard, Edge Seal
38	Guard, Edge Seal
39	Wire, Jumper
40	Insulation, Sleeve
41	Clamp, Wiring
