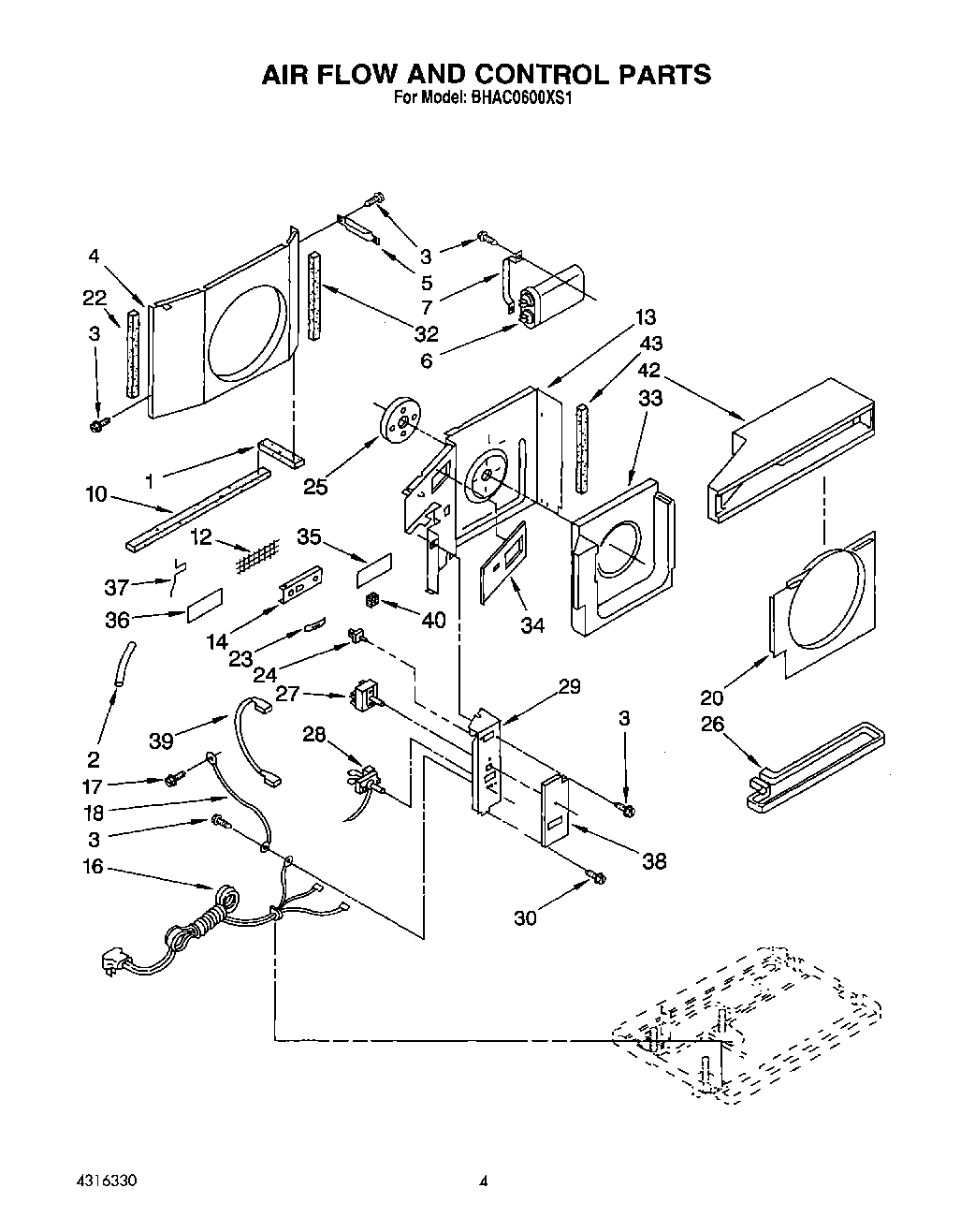

BHAC0600XS1 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Seal, Condensate
2Sealer, Foam Tube
3Screw, 8 x 3/8
4Shroud, Condenser
5Support, Unit
6Capacitor, Running
7Bracket, Capacitor
12Screen, Exhaust Door
13Wall, Dividing
14Door, Exhaust
16Cord, Appliance
17Screw 8-18 x .295
18Wire, Ground
20Shroud, Evaporator
22Seal
23Spring, Retainer
24Actuator, Door
25Insulation, Motor
26Pan, Evaporator
27Switch, Rotary
28Control, Temperature
29Panel, Control
30Screw, 6-32 x .175
32Seal, Condenser (R.S.)
33Housing, Air
34Insulation, Exhaust Door
35Spacer
36Barrier Protective
37Arm, Exhaust Door
38Insulation, Control Panel
39Wire, Jumper
40Sealer, Tube
42Hood, Air Housing
43WP854334 Whirlpool Air Conditioner Sealing Strip
