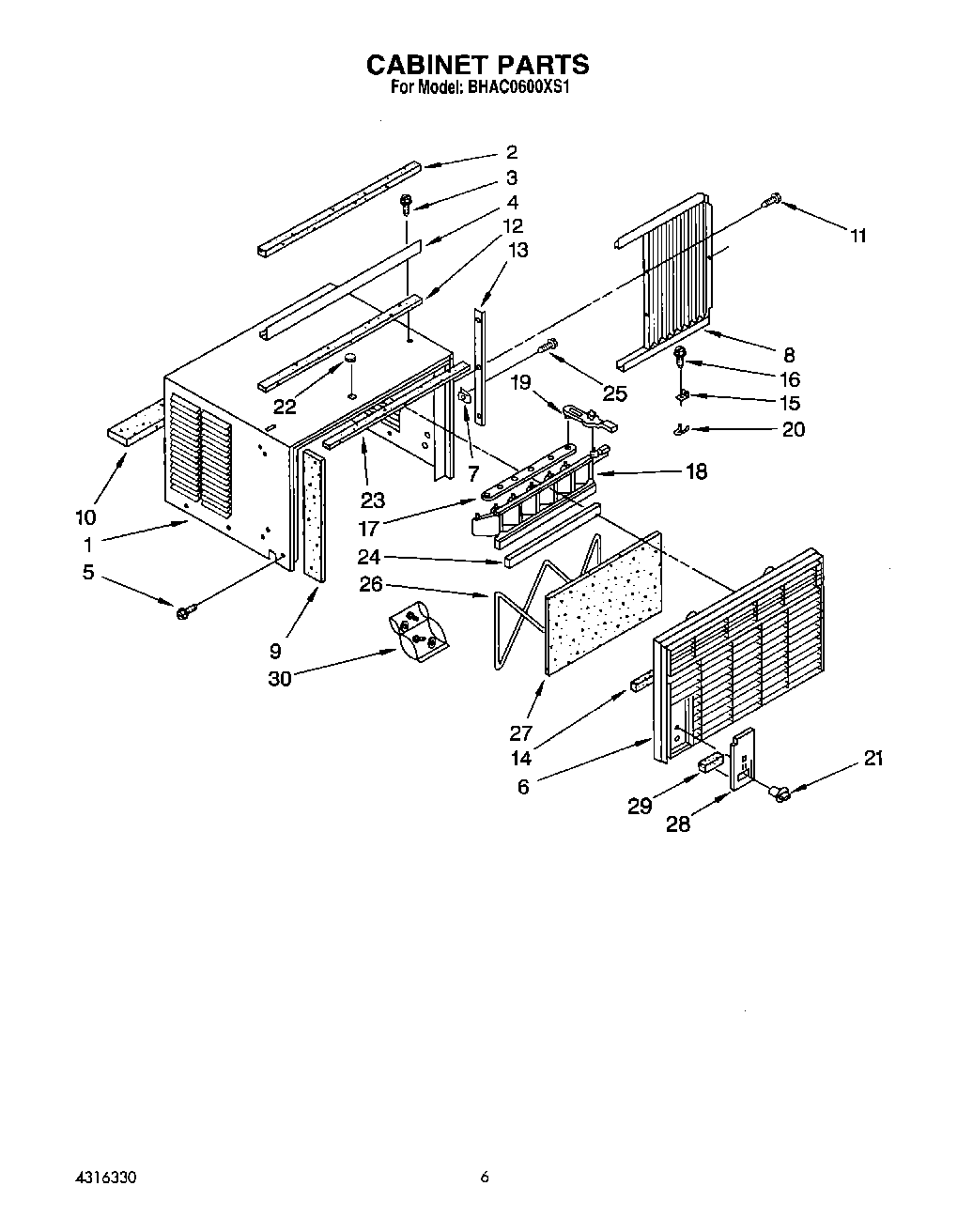

BHAC0600XS1 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP308685 Whirlpool Microwave Screw
4Channel, Top
5WP489069 Whirlpool Compactor Screw
6Front, Cabinet Assembly
7Clip, Vertical Louver
8Housing, Curtain (R.S.)
8Housing, Curtain (L.S.)
9Insulation, Side
10Insulation, Top
11Screw, 8-18 x 3/8
12Seal, Strip
13Retainer, Curtain (2)
15Bracket
16Screw, Wood 8-15 x .750
17Link, Louver (2)
18Louver, Vertical
19Handle, Louver (2)
20Detent Spring (2)
21Knobs, (3)
22Cover, Hole
23Seal
24Seal, Vertical Louver
25Screw 8-18 x .295
26Retainer, Filter
27Filter
28Escutcheon
29WP854334 Whirlpool Air Conditioner Sealing Strip
30Bag, Accessory
