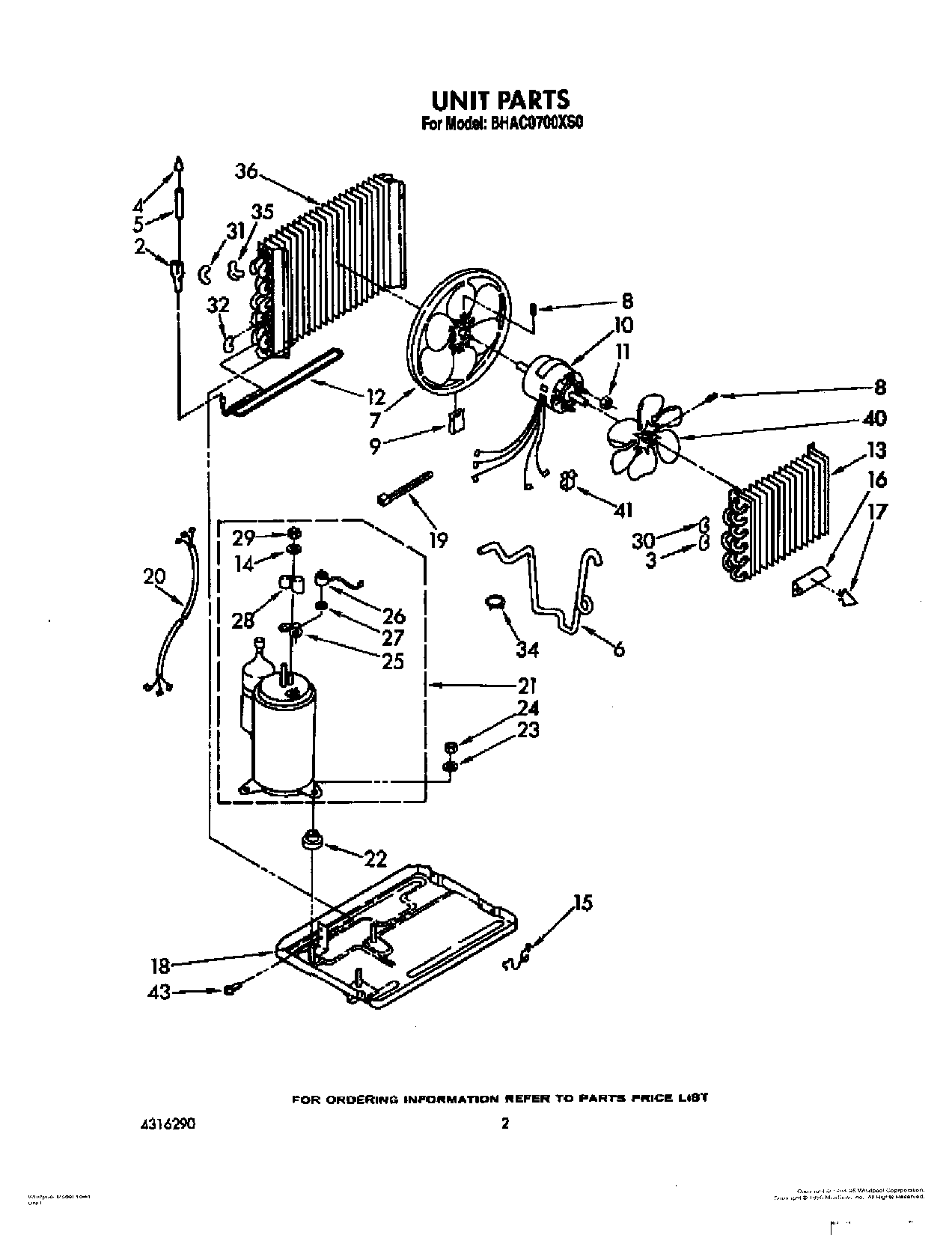

BHAC0700XS0 02 – UNIT

Products

Position	Product
	Repair Parts List
	Guide Operation
	Buy Guide
	Instructions, Installation
	Wiring Diagram
	Tech Sheet
2	Tube, Flow Divider
3	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Illus. 4)
6	Tube, Restrictor
7	Blade, Fan
9	Clip, Balancing
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Tube, Condenser Extension
13	Evaporator
14	Gasket, Nut
15	Clip, Mtg. (2) (Base to Front)
16	Anticipator, Temperature
17	Clip, Anticipator
18	Base
19	WPW10339879 Whirlpool Wire Tie
20	Harness, Wiring
21	Compressor
22	Grommet
23	WP120393 Whirlpool Washer Assembly
24	Nut, Hex (4)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Bend, Return Evaporator (4)
31	Bend, Return Condenser (4)
32	Bend, Return Condenser (10)
34	Clamp, Tube (2)
35	Bend Return Condenser (18)
36	Condenser
40	Fan, Blade Evaporator
41	Clamp, Wiring
43	WP489069 Whirlpool Compactor Screw
