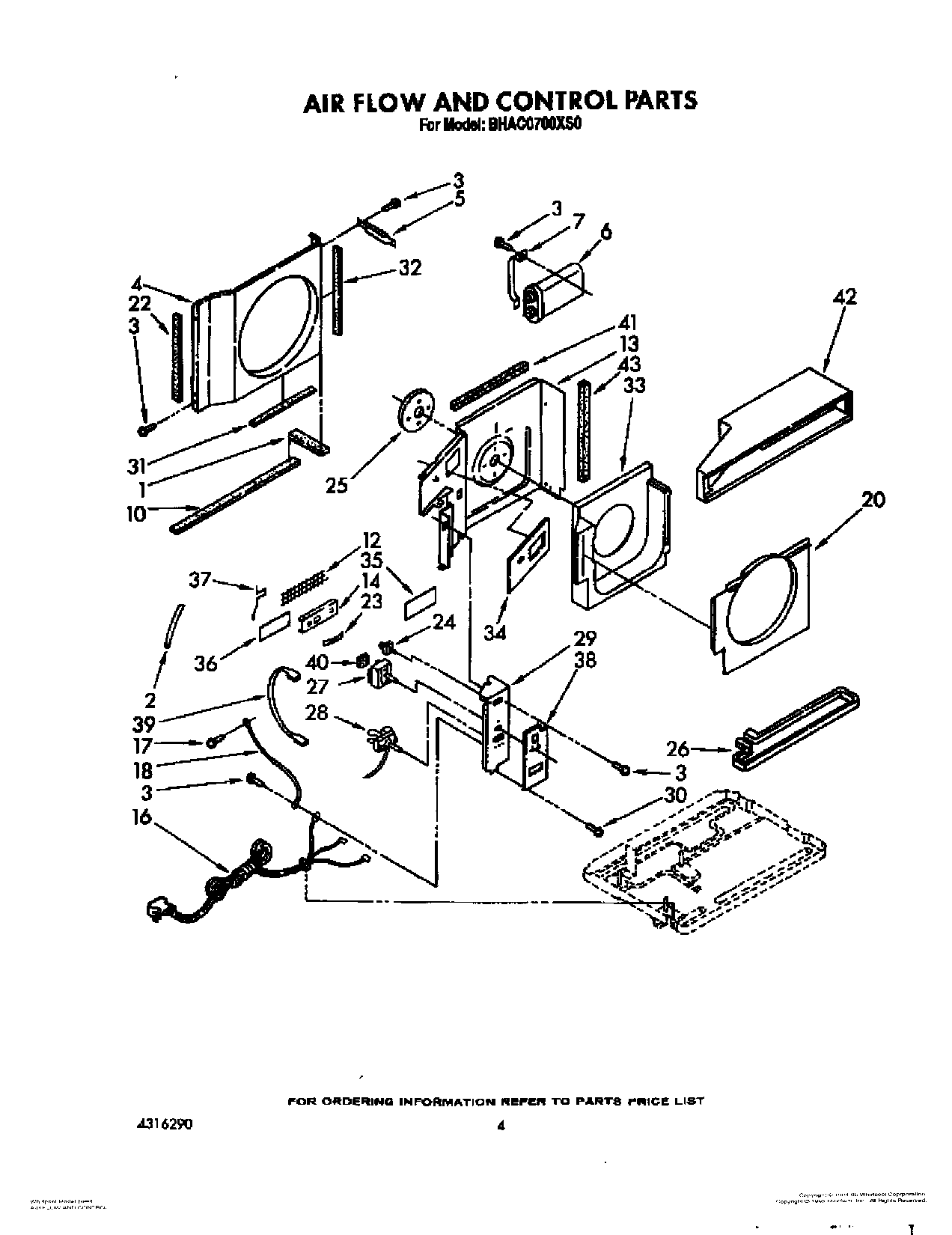

BHAC0700XS0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Seal, Condensate
2	Sealer, Tube
3	Screw 8-18 x .295
4	Shroud, Condenser
5	Support, Unit
6	Capacitor, Running
7	Bracket, Capacitor
10	Seal
12	Screen, Exhaust Door
13	Wall, Dividing
14	Door, Exhaust
16	Cord, Appliance
17	Screw, 8 x 3/8
18	Wire, Ground
20	Shroud, Evaporator
23	Spring, Retainer
24	Actuator, Door
25	Insulation, Motor
26	Pan, Evaporator
27	Switch, Rotary
28	Control, Temperature
29	Panel, Control
30	Screw, 6-32 x .175
32	Seal, Condenser (R.S.)
33	Housing, Air
34	Insulation, Exhaust Door
35	Spacer
36	Barrier Protective
37	Arm, Exhaust Door
38	Insulation, Control Panel
39	Wire, Jumper
40	Seal, Switch
41	WP854334 Whirlpool Air Conditioner Sealing Strip
42	Hood, Air Housing
