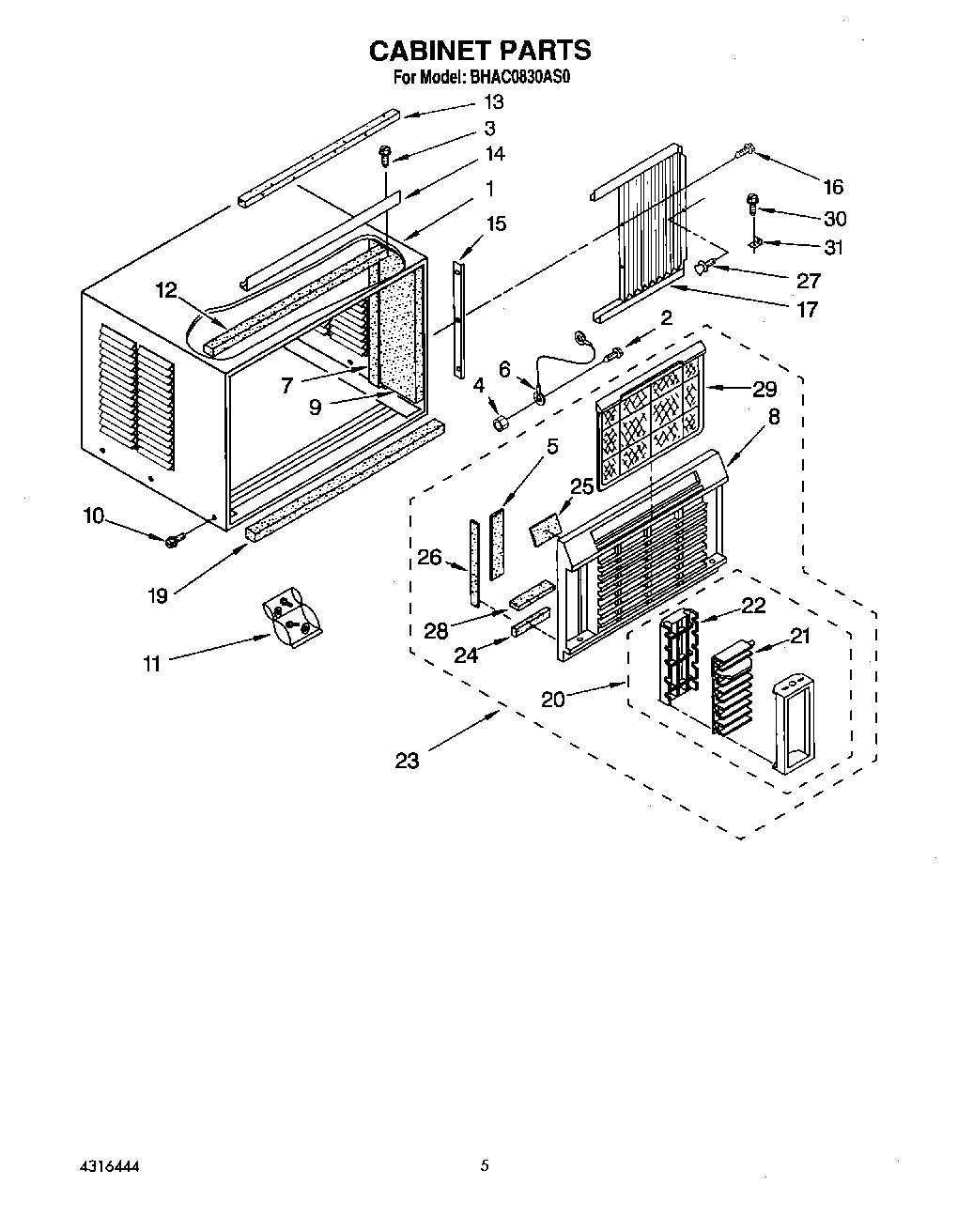

BHAC0830AS0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Screw, 8 x 3/8
4	WP486255 Whirlpool Air Conditioner Nut
5	Seal, Side (2)
6	Wire, Ground
7	Seal, Strip (2)
8	Cabinet Front
9	Insulation (2)
10	WP489069 Whirlpool Compactor Screw
11	Accessory, Bag
12	Seal, Cabinet Top
13	Gasket, Meeting Rail
14	Chanel, Top
15	Retainer, Curtain
16	Screw, 8-18 x 3/8
17	Curtain (L.S.)
17	Curtain (R.S.)
19	Seal
20	Cartridge, Complete
21	Horzontal Louver
22	Ribs, Vertical
23	Front, Complete
24	Seal, (2)
25	Seal, Front
26	Seal, Front – Sides (2)
27	Thumbscrew (2)
28	Seal, Front
29	Filter
30	Screw, Wood 8-15 x .750
31	Bracket
