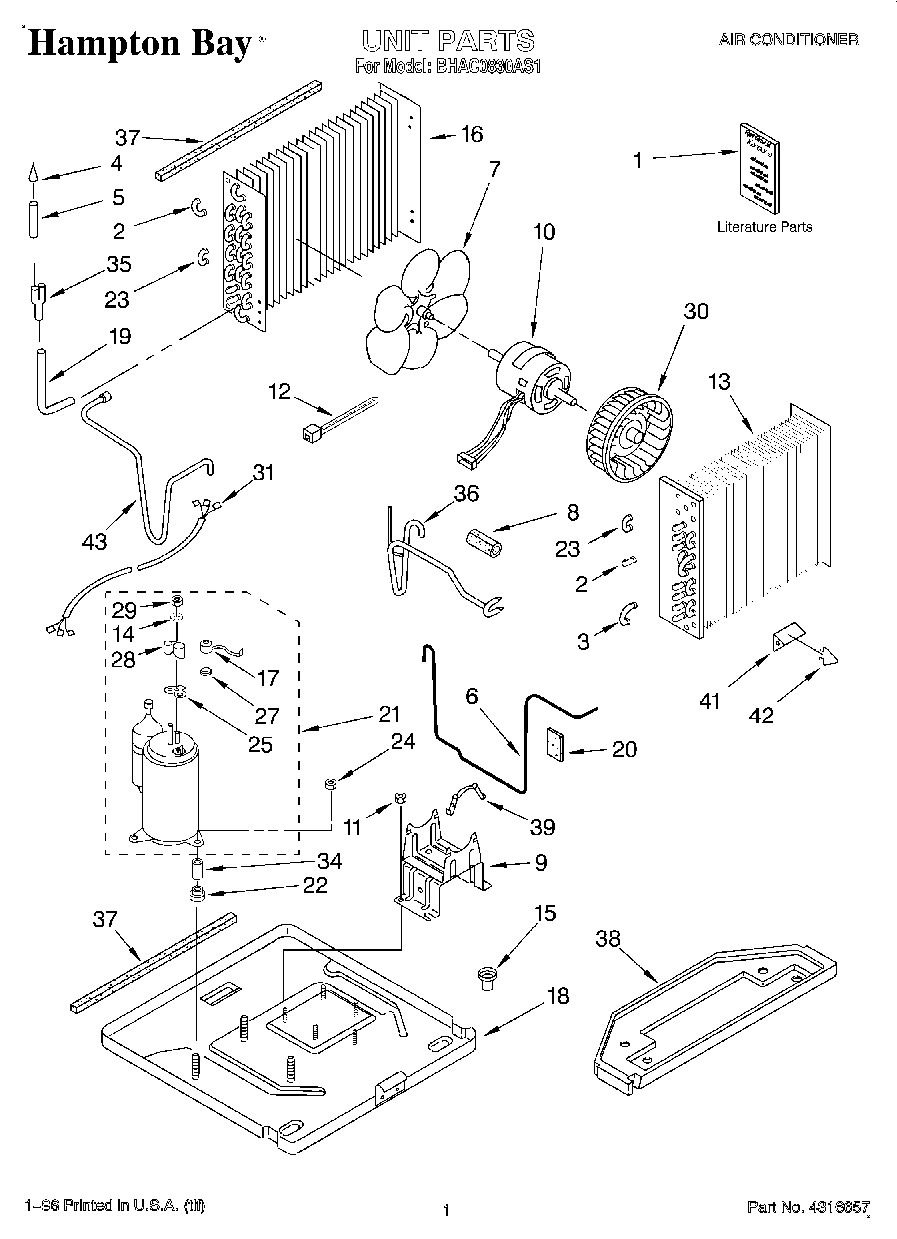

BHAC0830AS1 01 – UNIT, LITERATURE

Products

Position	Product
1	Guide, Use And Care
1	Tech Sheet
1	Instructions, Installation
1	Wiring Diagram
2	Bend, Return Condenser (10)
3	Tube, Riser (2)
4	Strainer
5	Tube, Outlet (Includes No. 26)
6	Tube, Restrictor
7	Blade, Fan (Condenser)
8	Insulation, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Cup, Condensate Drain
16	Condenser
17	WP1161170 Whirlpool Air Conditioner Overload
18	Base
19	Tube, Connecting
20	Spacer
21	4317916 Whirlpool Air Conditioner Compressor
22	Grommet
23	Bend, Return Condenser (4)
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Harness, Compressor
34	Sleeve, Compressor (3)
35	Tube, Flow Divider
36	Tube, Suction Asy
37	WP854334 Whirlpool Air Conditioner Sealing Strip
37	Seal, Condenser Bottom
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	Tube, Discharge
