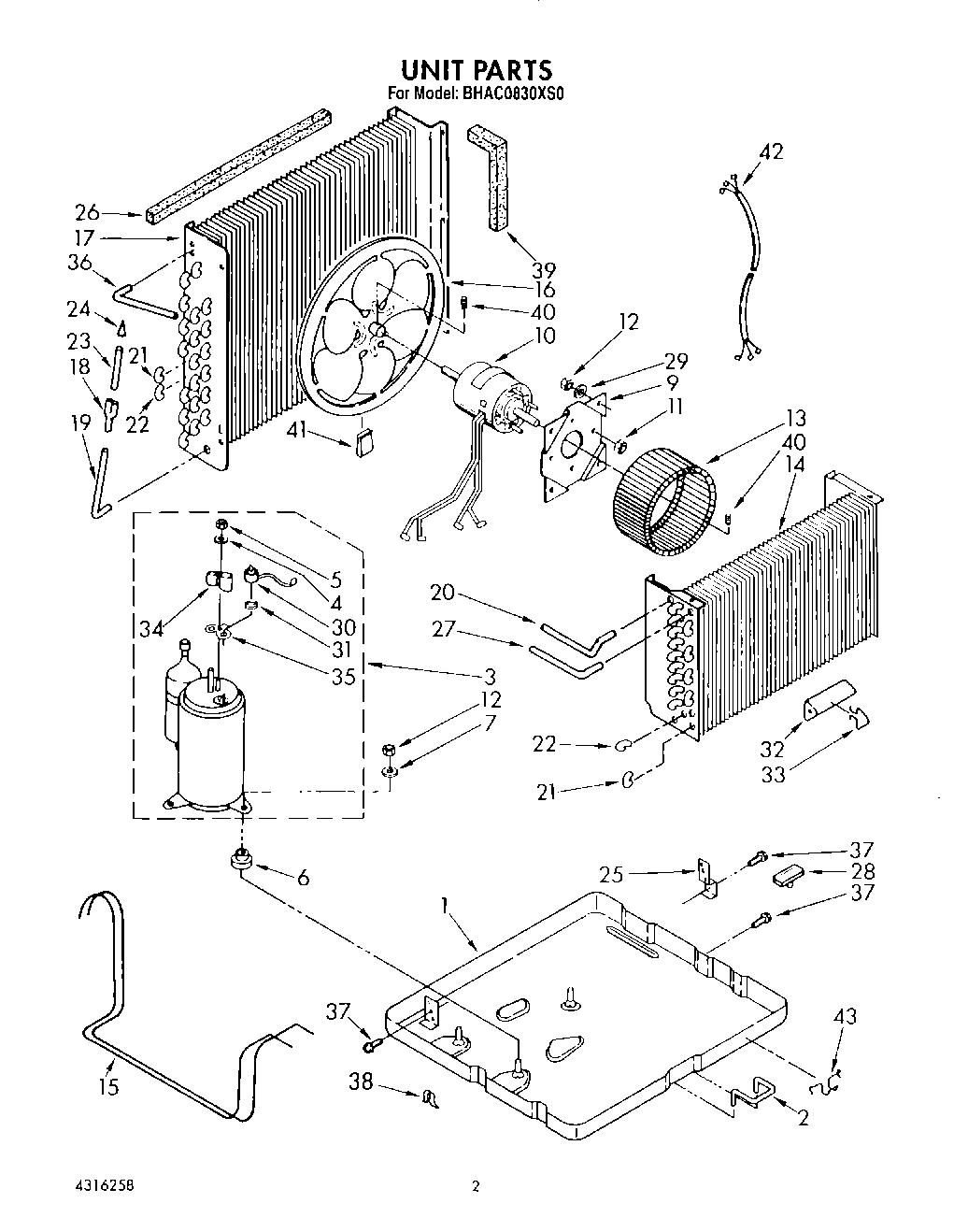

BHAC0830XS0 02 – UNIT , LITERATURE

Products

Position	Product
1	Base
2	WPL 647971
3	compressor
4	Gasket, Nut
5	WP950027 Whirlpool Mounting Nut
6	WP950021 Whirlpool Grommet
7	WP120393 Whirlpool Washer Assembly
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (Length 25.5“)
16	Blade, Fan
17	Condenser
18	Tube, Flow Divider
19	Tube, Outlet
20	Tube, Inlet
21	WP855199 Whirlpool Bend Return
22	WPL 1155631
23	Tube, Outlet (Includes Illus. 24)
24	Strainer
25	support, condenser R.S.
26	WPL 649609
27	Bend, 90~
28	WPL 647850
29	Washer, Repair (4)
30	WP1161170 Whirlpool Air Conditioner Overload
31	Spring, Overload
32	Anticipator
33	Clip, Anticipator
34	WP950036 Whirlpool Cover Assembly
35	WP950035 Whirlpool Cover Gasket
36	Tube, 90~ Connect
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	WPL 649610
40	Setscrew, 5/16 x 1/4
41	Clip, Fan Balancing
42	Harness, Wiring
43	Clip, Mtg. (2) (Base to Front)
