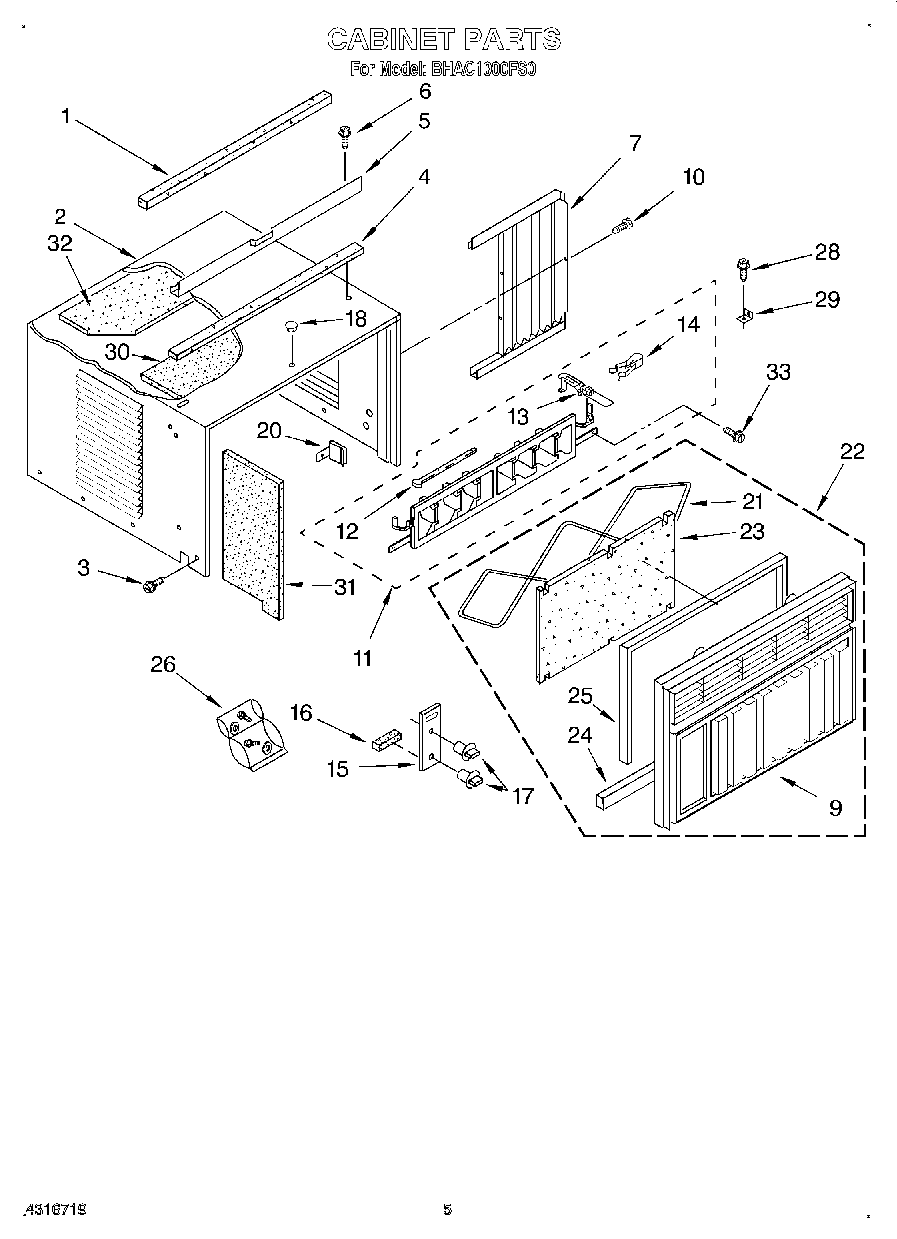

BHAC1000FS0 03 – CABINET

Products

Position	Product
1	Gasket, Meeting Rail
2	Cabinet
3	WP489069 Whirlpool Compactor Screw
4	Strip, Seal
5	Channel, Top
6	WP308685 Whirlpool Microwave Screw
7	Housing, Curtain R.S.(Includes No.8)
7	Housing, Curtain L.S. (Includes No.8)
9	Front, Cabinet
10	Screw, 8-18 x 3/8
11	Louver, Vertical (Includes Illus. 12, 13, 14 and 27)
12	Link, Vertical Louver (2)
13	Handle, Vertical Louver (2)
14	Spring, Detent (2)
15	Plate, Escutcheon
16	Spacer, Escutcheon Plate (3)
17	Knob, Control (2)
18	Cover, Hole
20	Clip, Vertical Louver
21	Retainer, Filter
22	Front, Complete
23	Filter
24	Seal, Front
25	Seal, Top & Sides
26	Bag, Accessory
28	Screw, Wood 8-15 x .750
29	Bracket
30	Insul. Cabinet Top
31	Insul. Cabinet (Left Side)
31	Insul. Cabinet (Right, Side)
32	Insul. Cabinet
33	Screw 8-18 x .295
