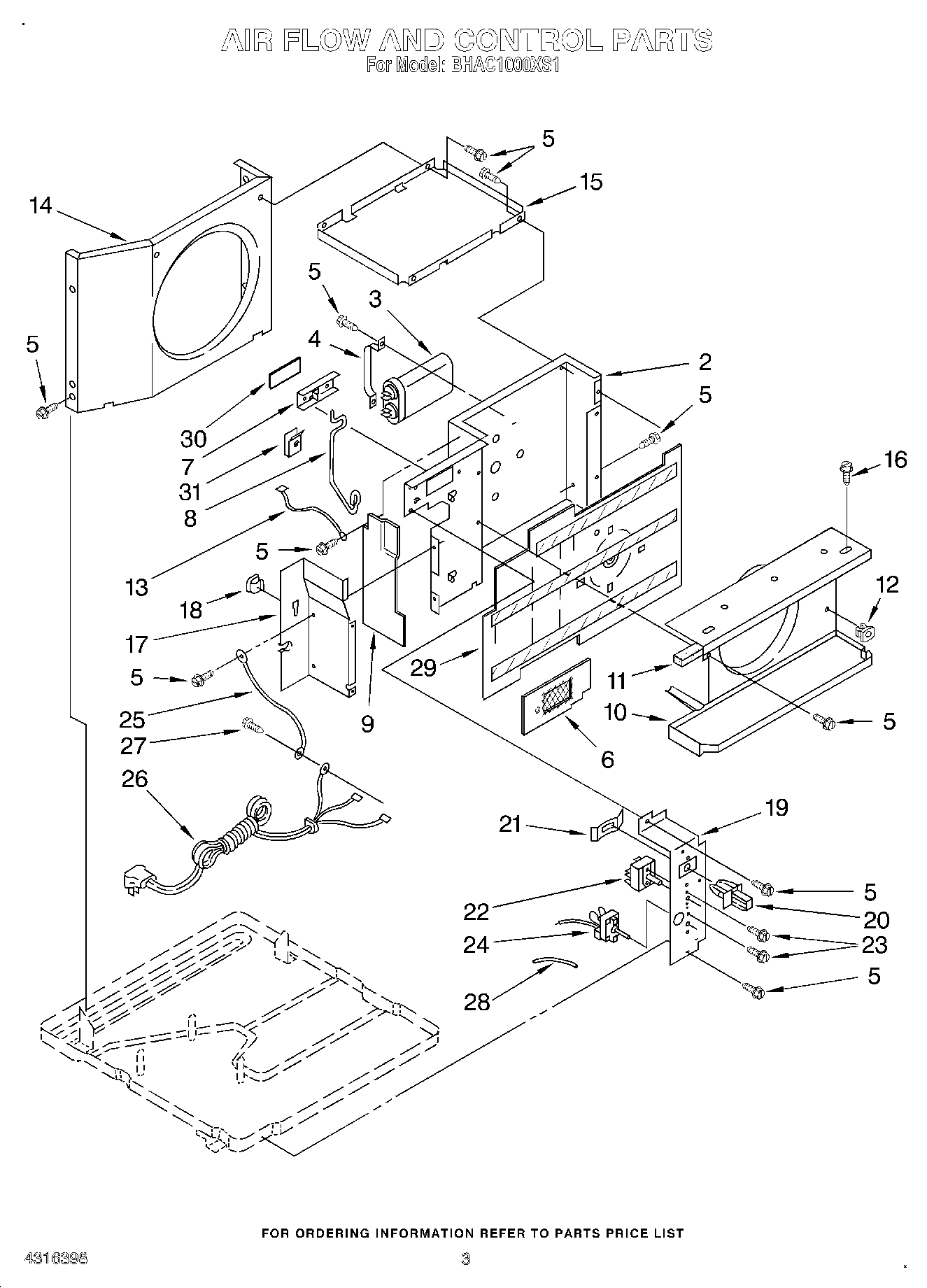

BHAC1000XS2 02 – AIR FLOW AND CONTROL

Products

Position	Product
2	Wall, Dividing Also Order:
3	Capacitor, Running
4	Bracket, Capacitor
5	WP489069 Whirlpool Compactor Screw
6	Screen, Insulation Assembly
7	Door, Exhaust
8	Arm, Door
9	Insulation, Dividing Wall
10	Shro\ud,\ Evaporator (Includes Item 11)
11	Insulation, Evaporator Cover
12	Fastener, snap (2)
13	Wire, Ground
14	Shroud, Condenser
15	Support, Unit
16	WP488729 Whirlpool Refrigerator Door Screw
17	Extension, Dividing Wall (Requires Insulation Part No. 469938)
18	Clip, Retainer
19	Panel, Control
20	Actuator, Door
21	Spring, Retainer
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Control, Tempetature
25	Wire, Ground
26	Cable, Appliance
27	WPW10141604 Whirlpool Screw
28	Insulation, Sleeve
29	Insulation Dividing Wall
30	Spacer
31	Clip, Exhaust Door Linkage
