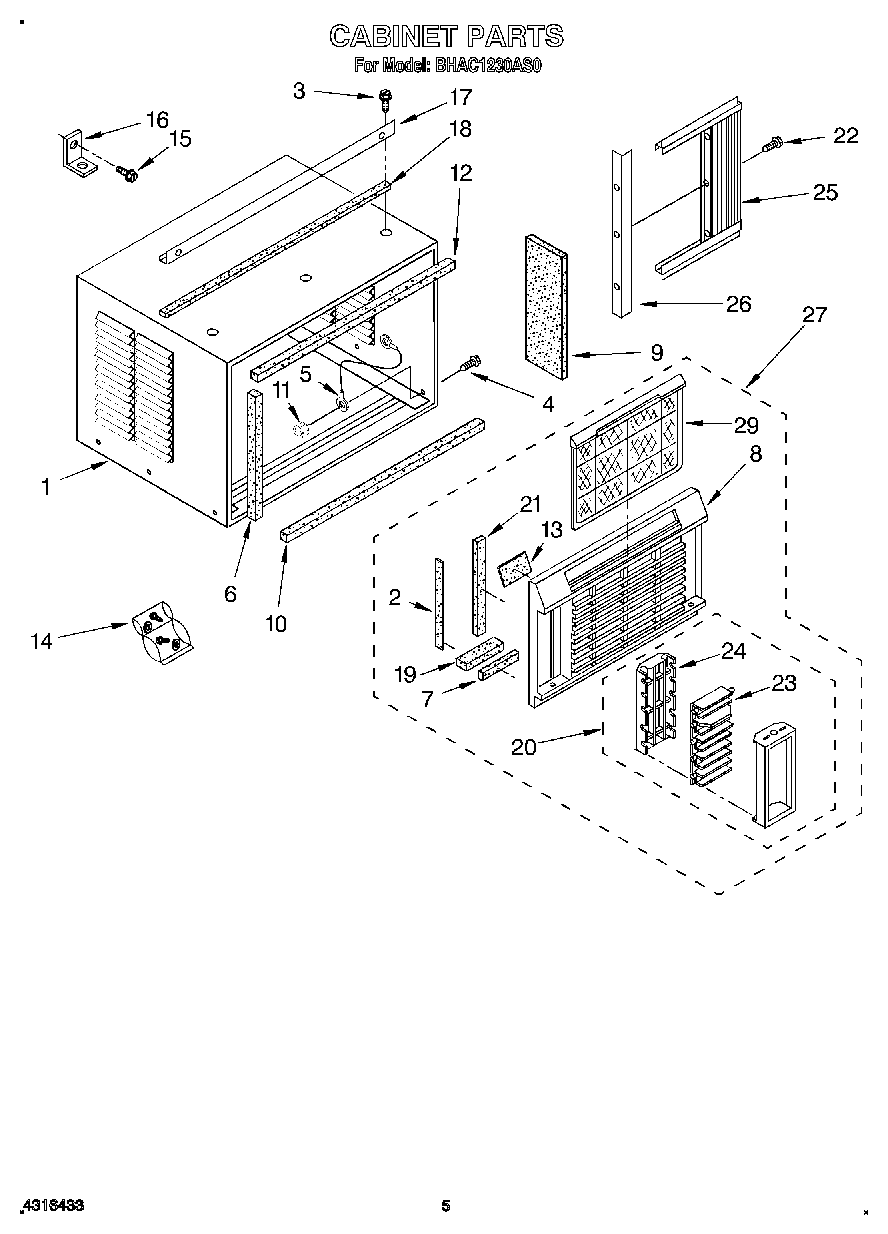

BHAC1230AS0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
4	Screw, 8 x 3/8
5	Wire, Ground
6	Seal, Strip (2)
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
10	Seal
11	WP486255 Whirlpool Air Conditioner Nut
12	Seal, Cabinet Top
13	Seal, Front
14	Accessory, Bag
15	Screw, Wood 8-15 x .750
16	Bracket
17	Chanel, Top
18	Gasket, Meeting Rail
19	Seal, Front
20	Cartridge, Complete
21	Seal, Side (2)
22	Screw, 8-18 x 3/8
23	Horzontal Louver
24	Ribs, Vertical
25	Curtain (L.S.)
25	Curtain (R.S.)
26	Retainer, Curtain
27	Front, Assembly
29	Filter
