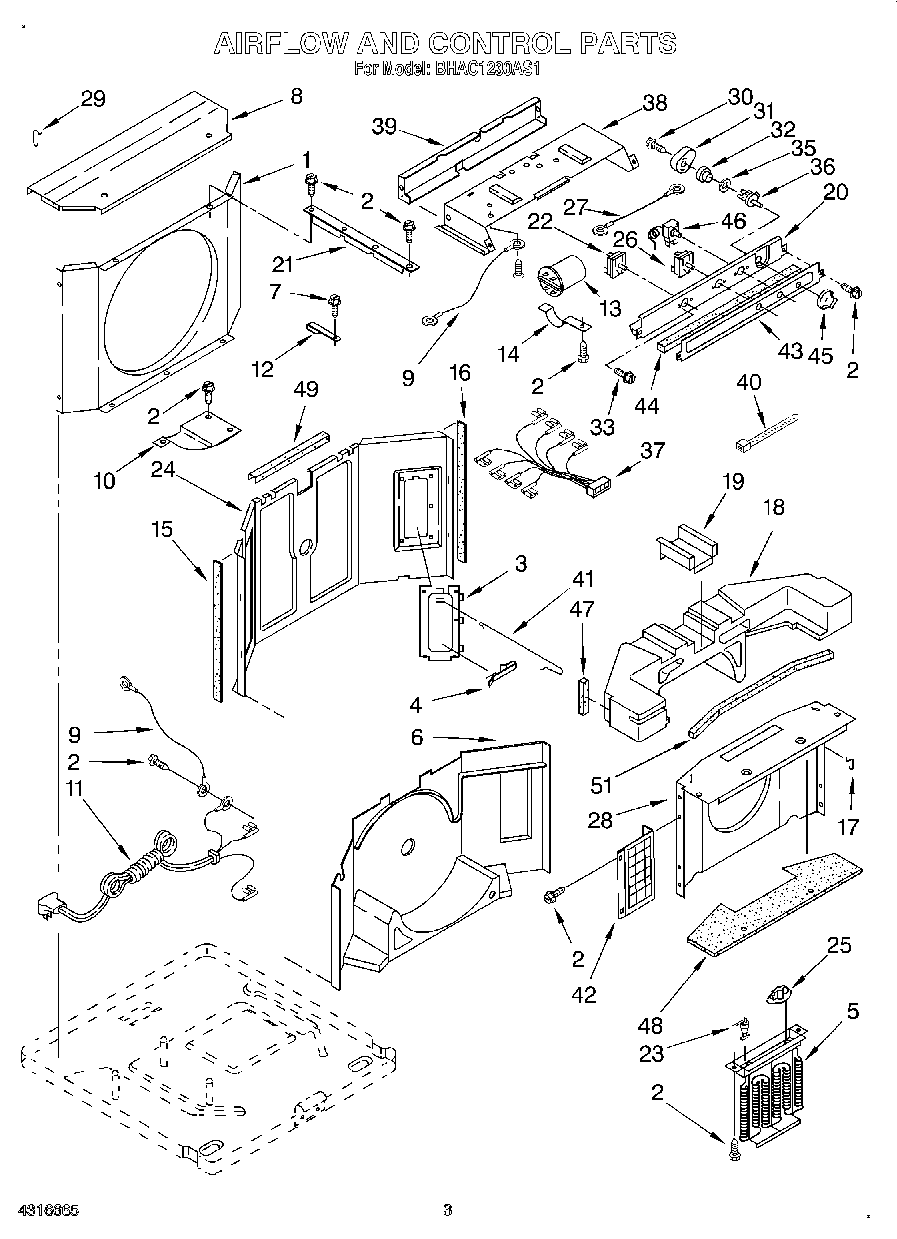

BHAC1230AS1 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
5	Element, Heating
6	Scroll (Lower)
7	Screw, 8-18 x 3/8
8	Top, Condenser
9	Wire, Ground
10	Cup, Condensate
11	Cord, Appliance
12	Strap, Dividing Wall
13	Capacitor, Running
14	Bracket, Capacitor
15	Seal, Left Side
16	Seal, Right Side
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Switch, Rotary
23	Fuse Link Asy
24	Wall, Dividing
25	Limit Switch
26	Switch, Fan
27	Wire, Thermostat To Switch
28	Shroud Assembly, Evaporator
29	Clip, Shroud (2)
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring (Control Box)
38	Box, Control
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	Wire, Exhaust Door
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Seal, Housing
48	Insulation, Shroud
49	Grommet, Divider Wall
51	Seal
