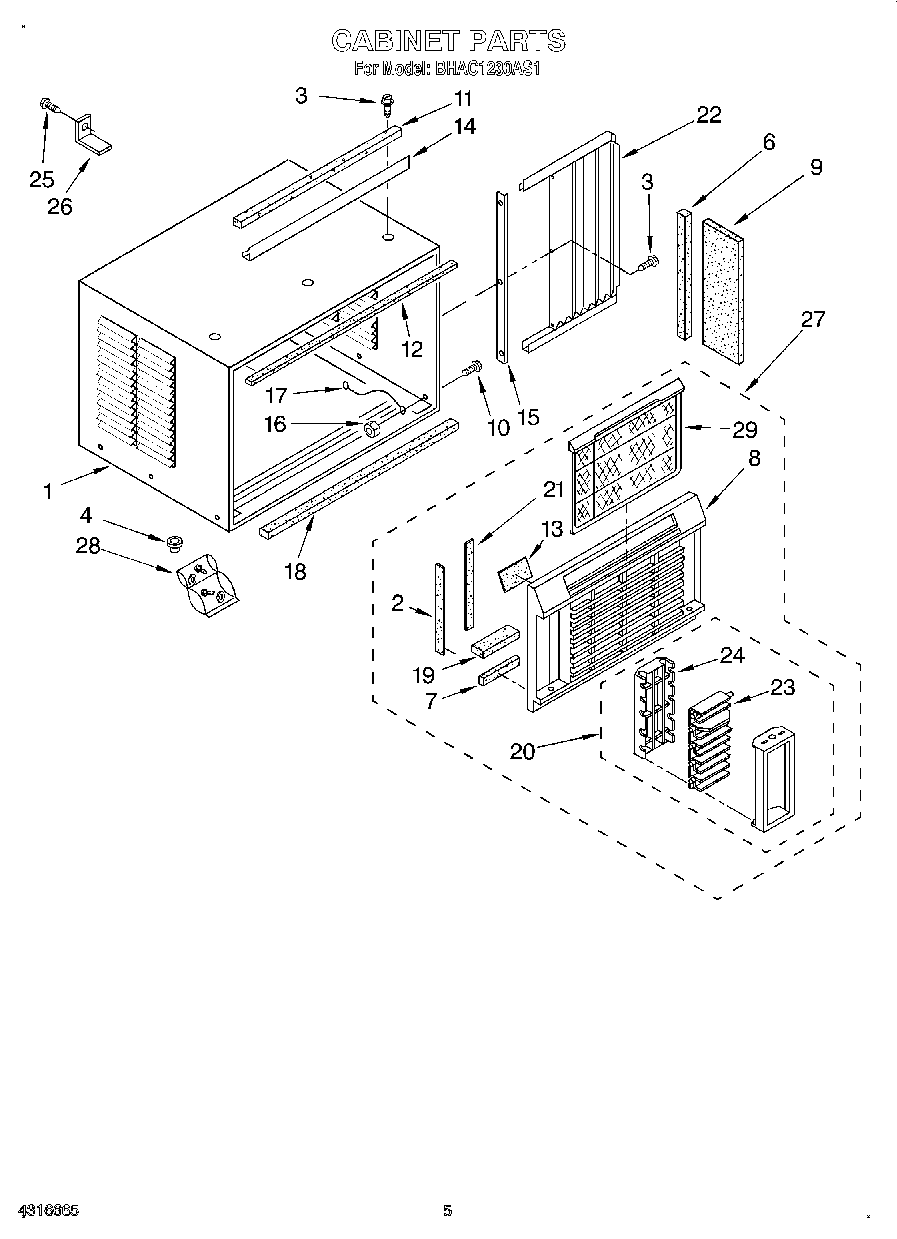

BHAC1230AS1 03 – CABINET

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
4	Cup, Condensate Drain
6	Seal, Strip (2)
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
10	Screw, 8 x 3/8
11	Gasket, Meeting Rail
12	Seal, Cabinet Top
13	Seal, Front
14	Chanel, Top
15	Retainer, Curtain
16	WP486255 Whirlpool Air Conditioner Nut
17	Wire, Ground
18	Seal
19	Seal, Front
20	Cartridge, Complete
21	Seal, Side (2)
22	Curtain (L.S.)
22	Curtain (R.S.)
23	Horzontal Louver
24	Ribs, Vertical
25	Screw, Wood 8-15 x .750
26	Bracket
27	Front, Assembly
28	Accessory, Bag
29	Filter
