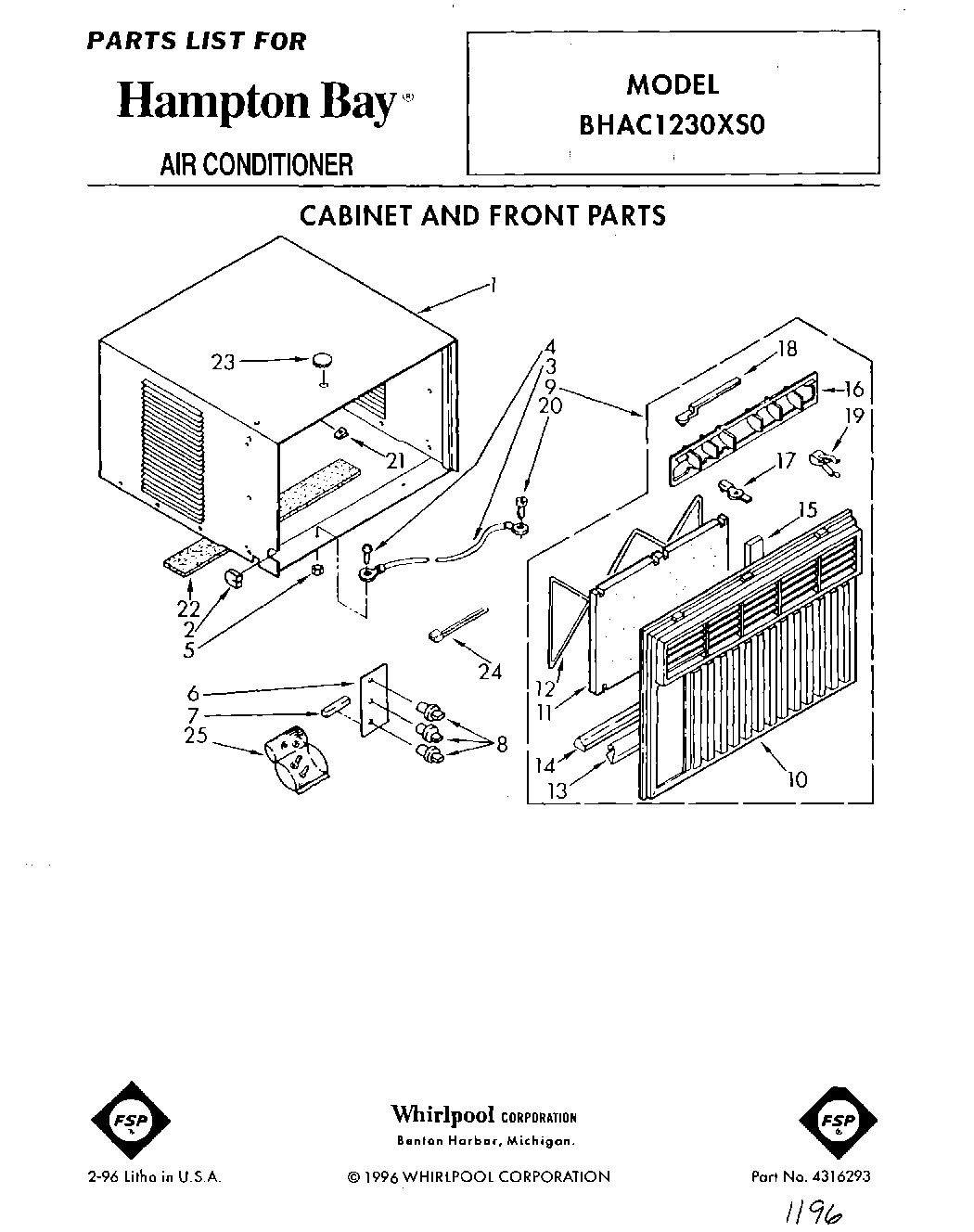

BHAC1230XS0 01 – CABINET AND FRONT

Products

PositionProduct
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6escutcheon, control
7Spacer, Escutcheon Plate (3)
8Knob, Control (3)
9Front Assembly, Cabinet (Complete)
10Front, Cabinet
11Filter
12Retainer, Filter
13WP854334 Whirlpool Air Conditioner Sealing Strip
14Seal
15Seal
16Louver, Vertical
17Handle, Vertical Louver
18Link, Vert. Louver (2)
19Detent Spring (2)
20Screw, 8 x 3/8
21Clip, Mtg. (2) (Base to Front)
22Seal
23Cover, Hole
24WPW10339879 Whirlpool Wire Tie
25Bag, Accessory
