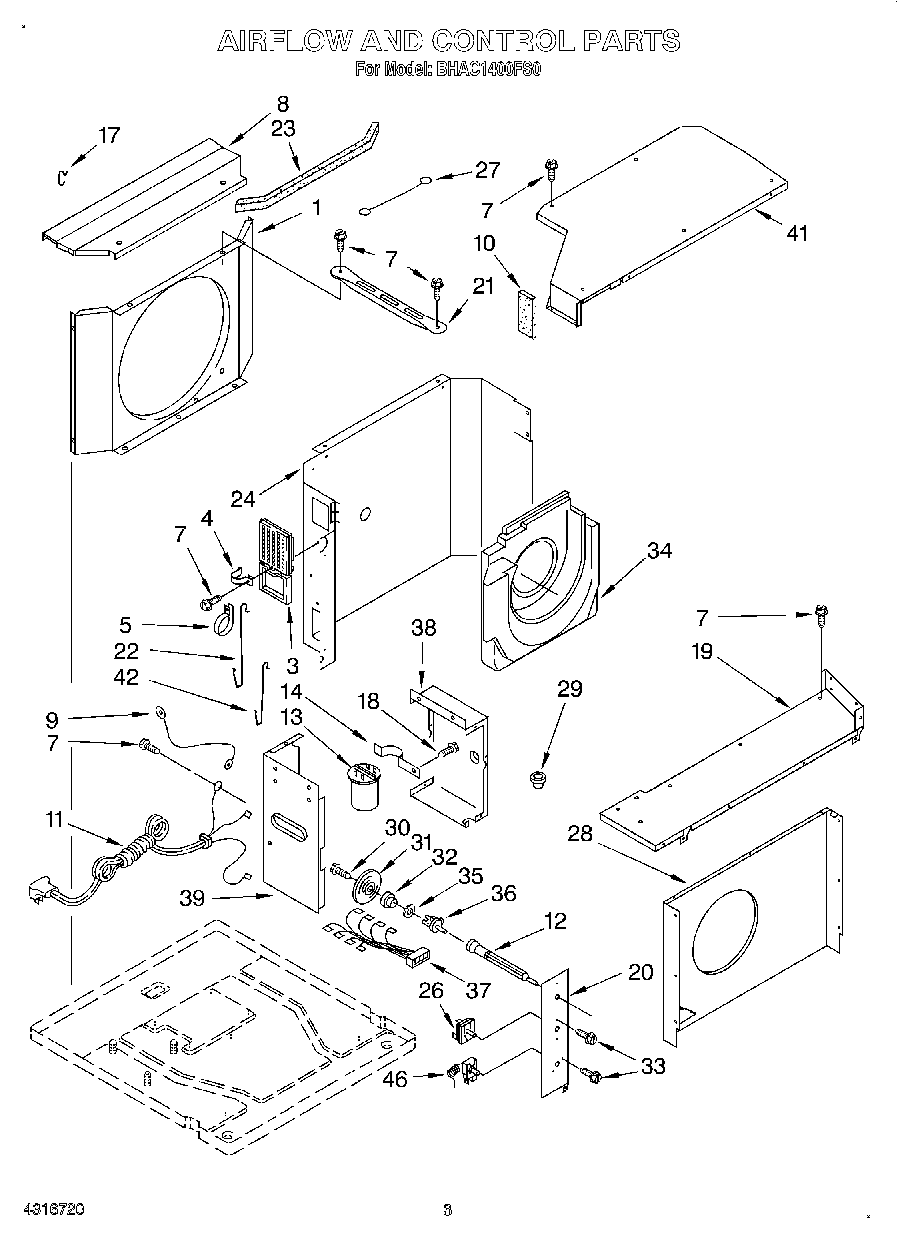

BHAC1400FS0 02 – AIRFLOW & CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Air (2)
4	Spring, Door (2)
5	Clamp, Wiring
7	WP489069 Whirlpool Compactor Screw
8	Top, Condenser
9	Wire, Ground
10	Seal, Anti-Rub
11	Cable, Appliance
12	Control, Shaft
13	CAPACITOR
14	Bracket, Capacitor
17	Clip, Shroud (2)
18	WP488787 Whirlpool Refrigerator Screw
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control Fresh Air
23	Seal, Shroud
24	Dividing Wall
26	Switch, Rotary
27	Wire, Thermostat To Switch
28	Shroud Assembly, Evaporator
29	Cup, Condensate Drain
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring – Control Box
38	Control Box (R.S.)
39	Control Box (L.S.)
41	Cover, Top
42	Wire, Control Exhaust
46	Control, Temperature
