Products
| Position | Product |
|---|
| Instructions, Installation (Wide Window Kit) |
| Wiring Diagram |
| Sheet, Tech |
| Guide, Use and Care |
| Guide, Energy |

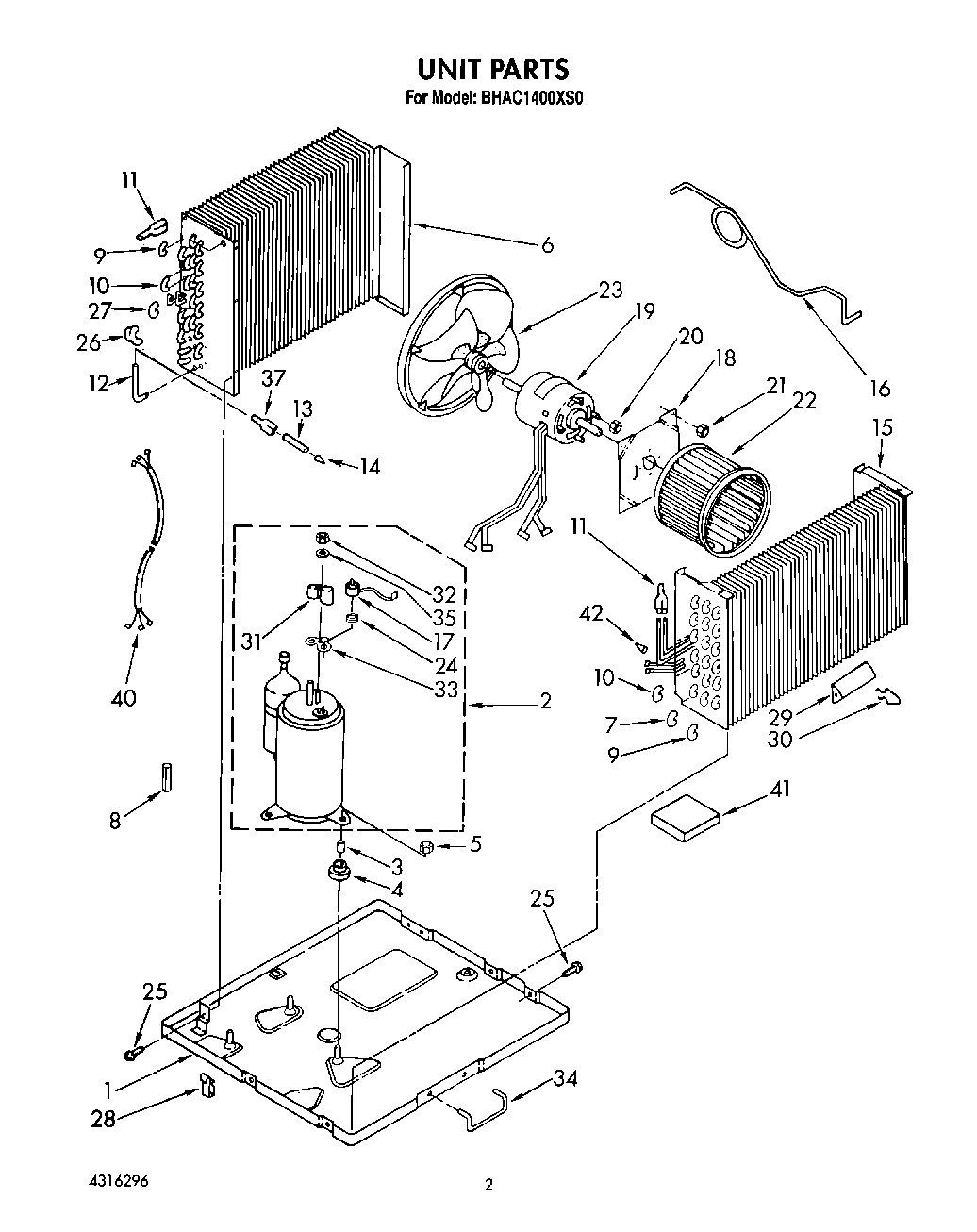

| List, Repair Parts |
| 1 | Base |
| 2 | Compressor |
| 3 | Sleeve (3) |
| 4 | WP950021 Whirlpool Grommet |
| 5 | Locknut (3) |
| 6 | Condenser |
| 7 | Bend, Return Evaporator (4) |
| 8 | Dampener, Tube 1/2`` |
| 9 | Bend, Return Evaporator (4) |
| 10 | Bend, Return Evaporator (11) |
| 11 | Tube, Flow Divider |
| 12 | Tube, Outlet |
| 13 | Tube, Outlet |
| 14 | Strainer |
| 15 | WPL 947225 |
| 16 | WPL 950812 |
| 17 | Overload, Protector |
| 18 | WPL 998024 |
| 19 | Motor, Fan |
| 20 | WP488130 Whirlpool Air Conditioner Nut |
| 21 | Nut, Hex (4) |
| 22 | Wheel, Blower |
| 23 | Blade, Fan |
| 24 | Spring, Overload |
| 25 | WP489069 Whirlpool Compactor Screw |
| 26 | Bend, Tube (3-Way) |
| 27 | Bend, Return Condenser (3) Evaporator (1) |
| 28 | Clamp, Restrictor Tube |
| 29 | Anticipator, Temperature |
| 30 | Clip, Anticipator |
| 31 | WP950036 Whirlpool Cover Assembly |
| 32 | WP950027 Whirlpool Mounting Nut |
| 33 | WP950035 Whirlpool Cover Gasket |
| 34 | WPL 647971 |
| 35 | Gasket, Nut |
| 37 | Tube, Flow Divider |
| 40 | Harness, Wiring |
| 41 | Seal |
| 42 | Strainer |
