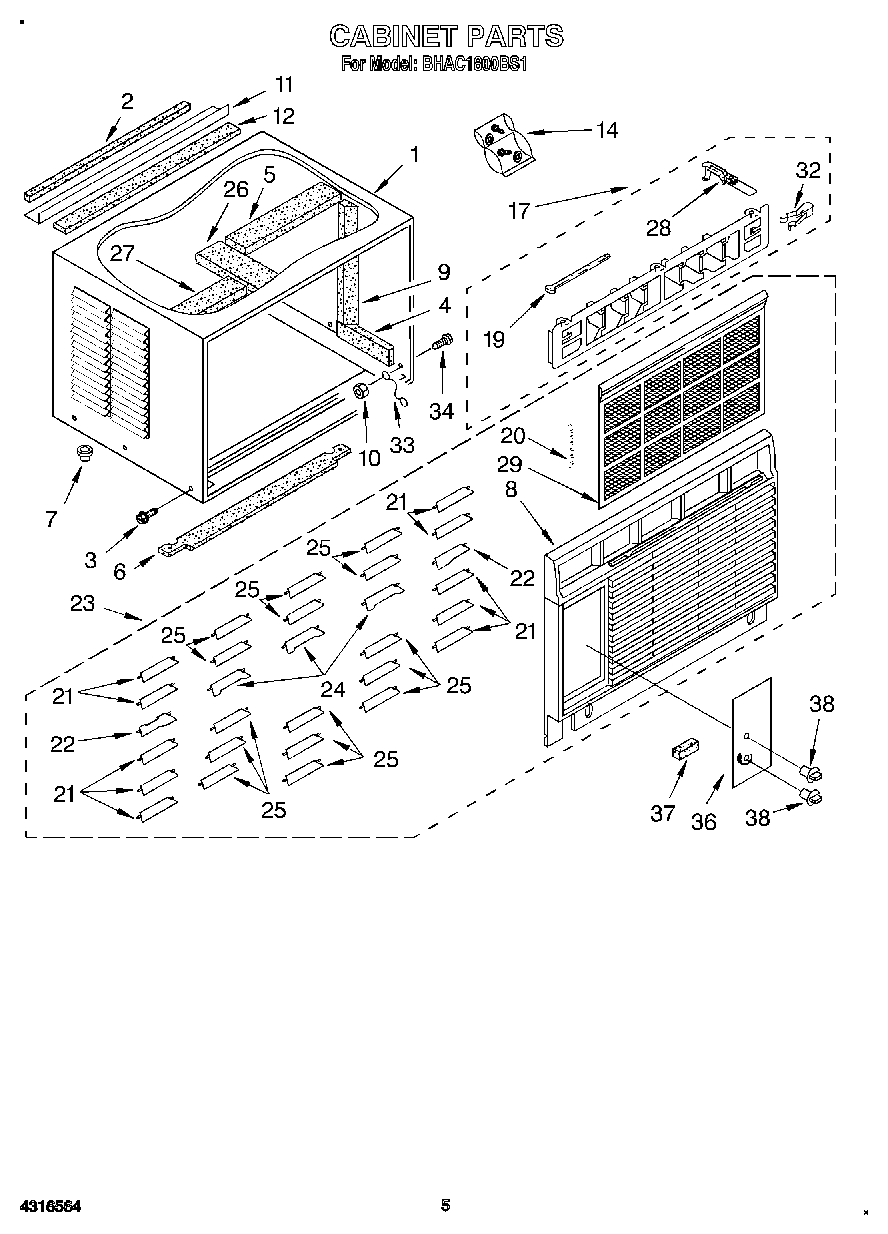

BHAC1800BS1 03 – CABINET

Products

Position	Product
1	Cabinet (Includes Insulation)
2	Gasket, Meeting Rail
3	WP489069 Whirlpool Compactor Screw
4	Insulation, Cabinet Side (2)
5	Insulation, Cabinet
6	Seal
7	Cup, Condensate Drain
8	Front, Cabinet
9	Insulation, Cabinet Side (2)
10	WP486255 Whirlpool Air Conditioner Nut
11	Angle, Top Mounting
12	Seal, Top Mounting Angle
14	Bag, Accessory
17	Vertical, Louver
19	Link, Vertical Louver (2)
20	Link, Horizontal Louver (5)
21	Louver, Horizontal (10)
22	Louver, Horizontal W/ Handle (2)
23	Front, Complete
24	Louver, Horizontal W/ Handles (3)
25	Louver, Horizontal (15)
26	Insulation, Cabinet
27	Insulation, Cabinet
28	Louver, Actuator
29	Filter
32	Detent Spring (2)
33	Wire, Ground
34	WP488234 Whirlpool Air Conditioner Screw
36	Plate, Escutcheon
37	Spacer, Escutcheon Plate (3)
38	Knob, Control (2)
