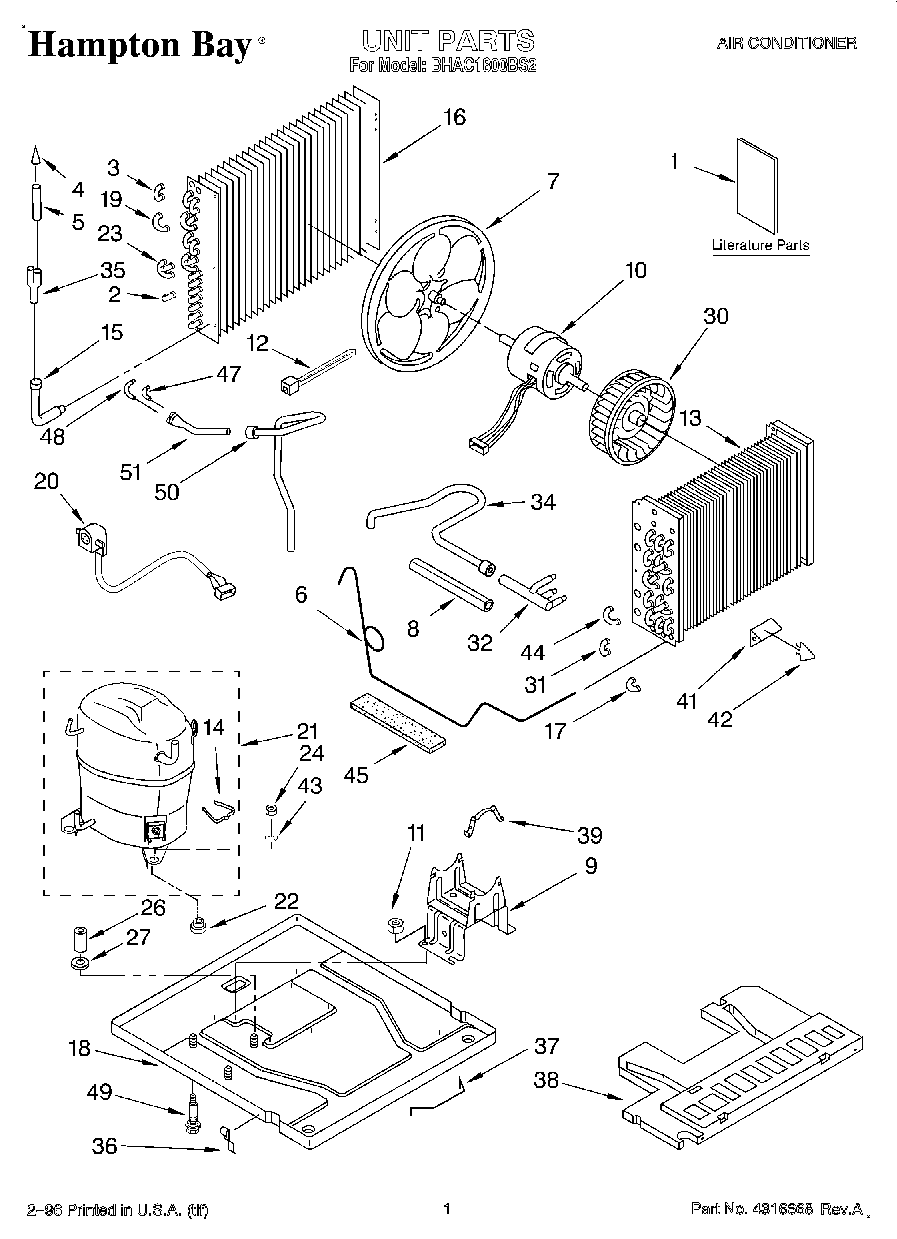

BHAC1800BS2 01 – UNIT, LITERATURE

Products

Position	Product
	Wiring Diagram
	Tech Sheet
	Owners Manual
1	LITERATURE PARTS
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Retainer, Terminal Cover
15	Tube, Connecting
16	Condenser
17	Bend, Return Evaporator (4)
18	Base
19	Bend, Return Condenser (1)
20	Harness, Wiring
21	Compressor
22	Grommet (3)
23	Bend, Return (3-Way)
24	Locknut (3)
26	Sleeve, Mounting
27	Spacer, Grommet
30	Wheel, Blower
31	Bend, Return Evaporator (11)
32	Manifold, Suction
34	Tube, Suction
35	Tube, Flow Divider
36	Clamp (2)
37	WPL 647971
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bend, Return Evaporator (4)
45	Seal, Restrictor Tube
47	Tube, Feeder
48	Tube, Feeder
49	Bolt, Compressor
50	Tube, Discharge
51	Tube, Discharge (Top)
