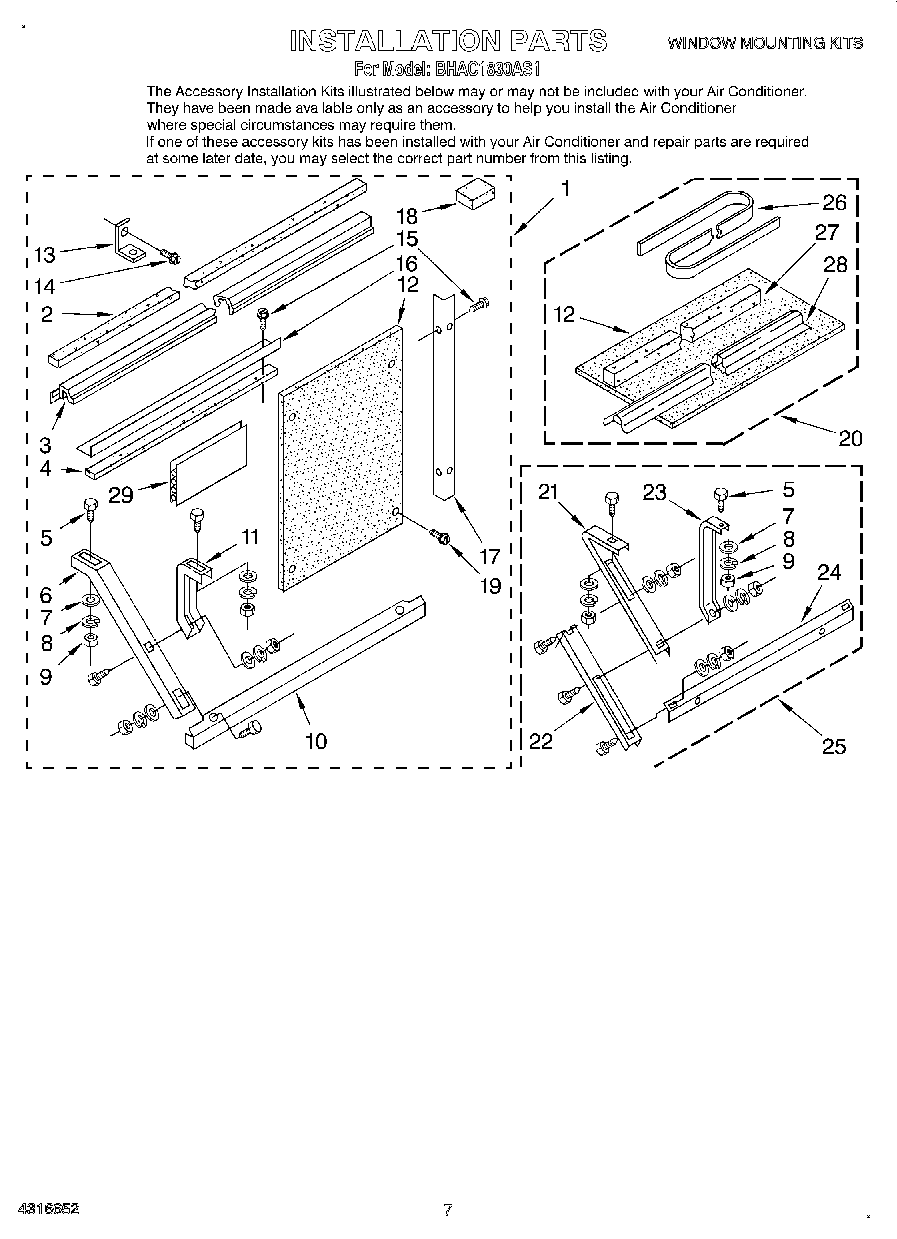

BHAC1830AS1 05 – INSTALLATION

Products

Position	Product
	Instructions, Installation (Wide Window Kit)
	Instructions, Installation (Standard Mounting Kit)
	Instructions, Installation (Outside Support Kit
1	Kit, Standard Installation
2	Gasket, Meeting Rail
3	Gasket, Sash
4	Strip, Seal
5	Bolt, 1/4 x 3/4 (6)
6	Support, Cabinet (2)
7	WP120393 Whirlpool Washer Assembly
8	Lockwasher (6)
9	Nut, Hex (6)
10	Bracket, Support
11	Support, Retainer (2)
12	Board, Filler
13	Bracket
14	Screw (Window Lock Bracket)
15	Screw, 8 x 3/8
16	Angle, Top Mounting
17	Angle (2)
18	Spacer, Block (4)
19	Screw (Side Angle To Filler Board)
20	Kit, Outside Support
21	Support, Cabinet (2)
22	Extension, Support (2)
23	Retainer, Cabinet (2)
24	Bracket, Support
25	Kit, Wide Window
26	Strip, Seal
27	Seal, Meeting Rail
28	Gasket, Sash (54“)
29	212643 Whirlpool Refrigerator Permagum Sealer
