BHDH2500AS0 02 – UNIT

Products

PositionProduct
WPL LIT1162709
WPL LIT1157768
Sheet, Tech

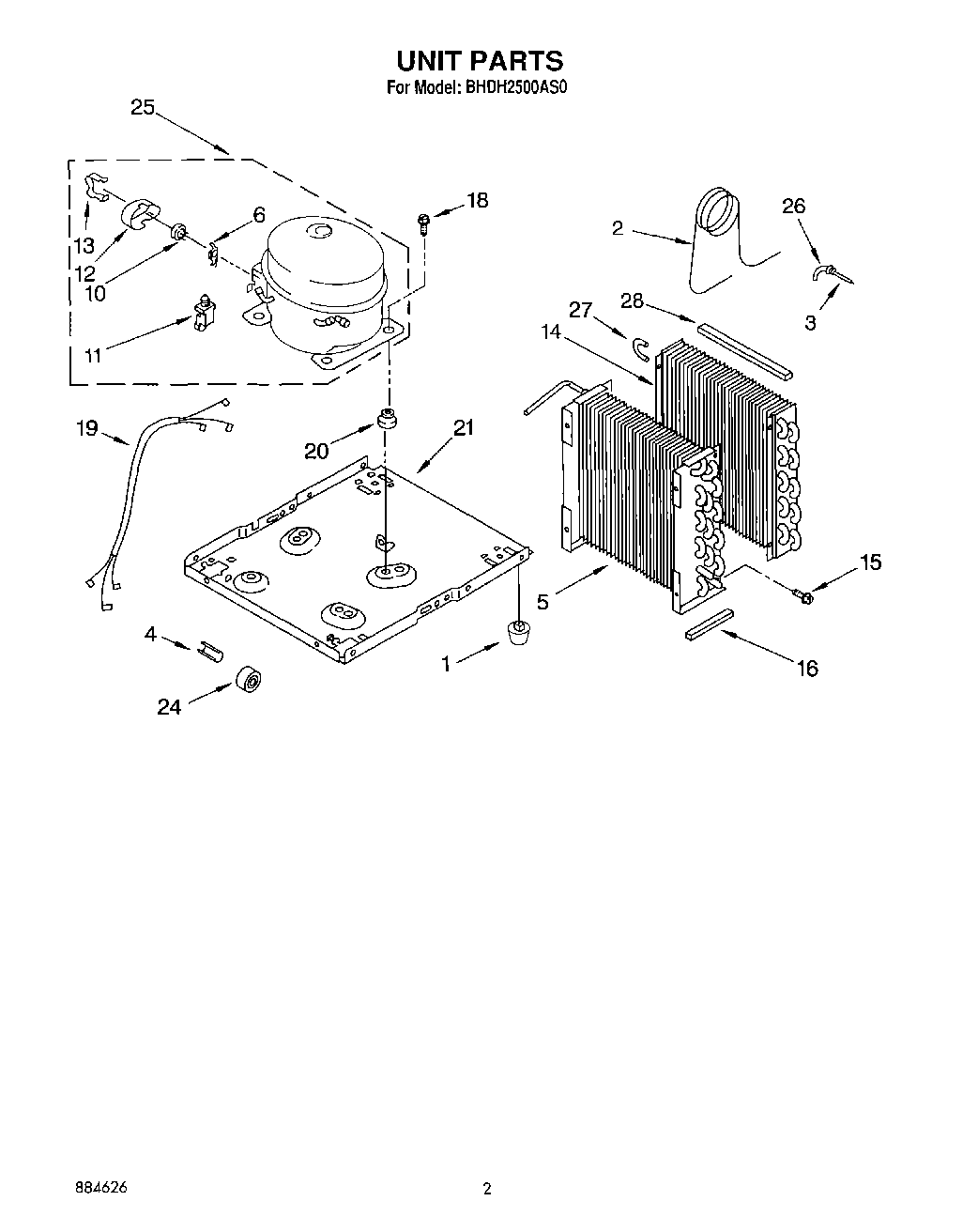

List, Repair Parts
1Glide (2)
2Tube, Restrictor (Length 36.00“)
3Strainer
4Pin, Roller (2)
5Condenser
6Spring, Overload
10Overload
10OverLoad (Service)
11Relay (Service)
11Relay, Start
12Cover, Terminal (Production)
12Cover, Spring
13Strap
13Retainer, Cover (Service)
14Evaporator
15Screw, 8 x 3/8
16Seal
18Screw, 1/4-28 x 1“ (4)
19Harness, Wiring
20Grommet (4)
21Base
24Roller (2)
25WPL 1157552
26Bend, Return Evaporator (11)
27Bend, Return Evaporator (4)
28Seal, Evaporator Top
