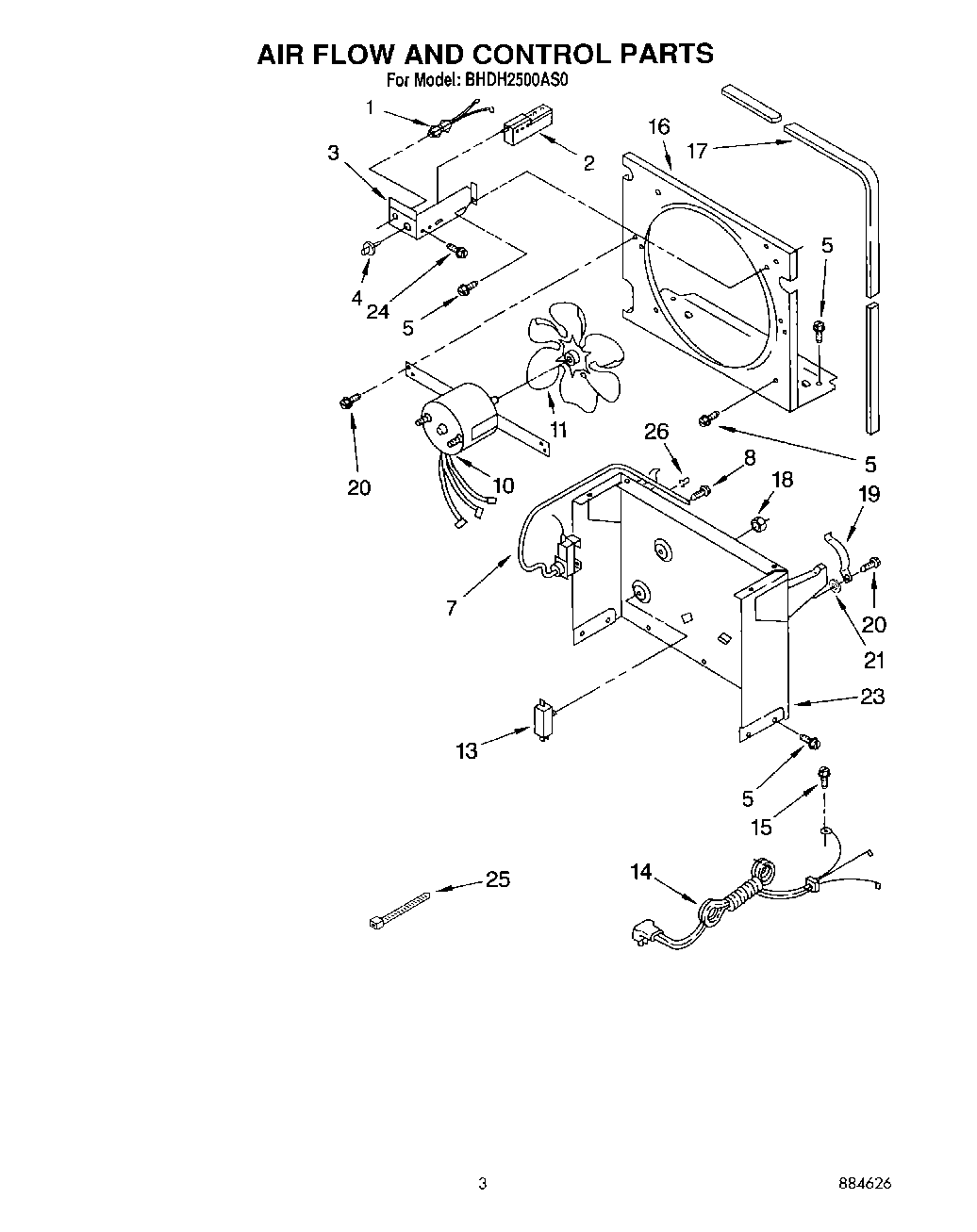

BHDH2500AS0 03 – AIR FLOW AND CONTROL

Written by

Products

Position	Product
1	Light, Indicator
2	Humidistat, Control
3	Bracket, Humidistat
4	WPL 1162670
5	WP489069 Whirlpool Compactor Screw
7	Thermostat, De-Icer
8	WP488234 Whirlpool Air Conditioner Screw
10	Motor, Fan
11	Blade, Fan
13	Switch, Water Level Control
14	Cord, Appliance
15	WPW10141604 Whirlpool Screw
16	Plate, Orifice
17	Seal
18	Palnut, 3/8-32
19	Spring, Water Level
20	WP488163 Whirlpool Refrigerator Screw
21	Washer (Repair) (.062 Thickness)
21	Washer, Repair (.045 Thickness)
23	Support
24	WP3177991 Whirlpool Screw
25	WPW10339879 Whirlpool Wire Tie
26	Clamp, Tube To Evaporator Mtg (2)
