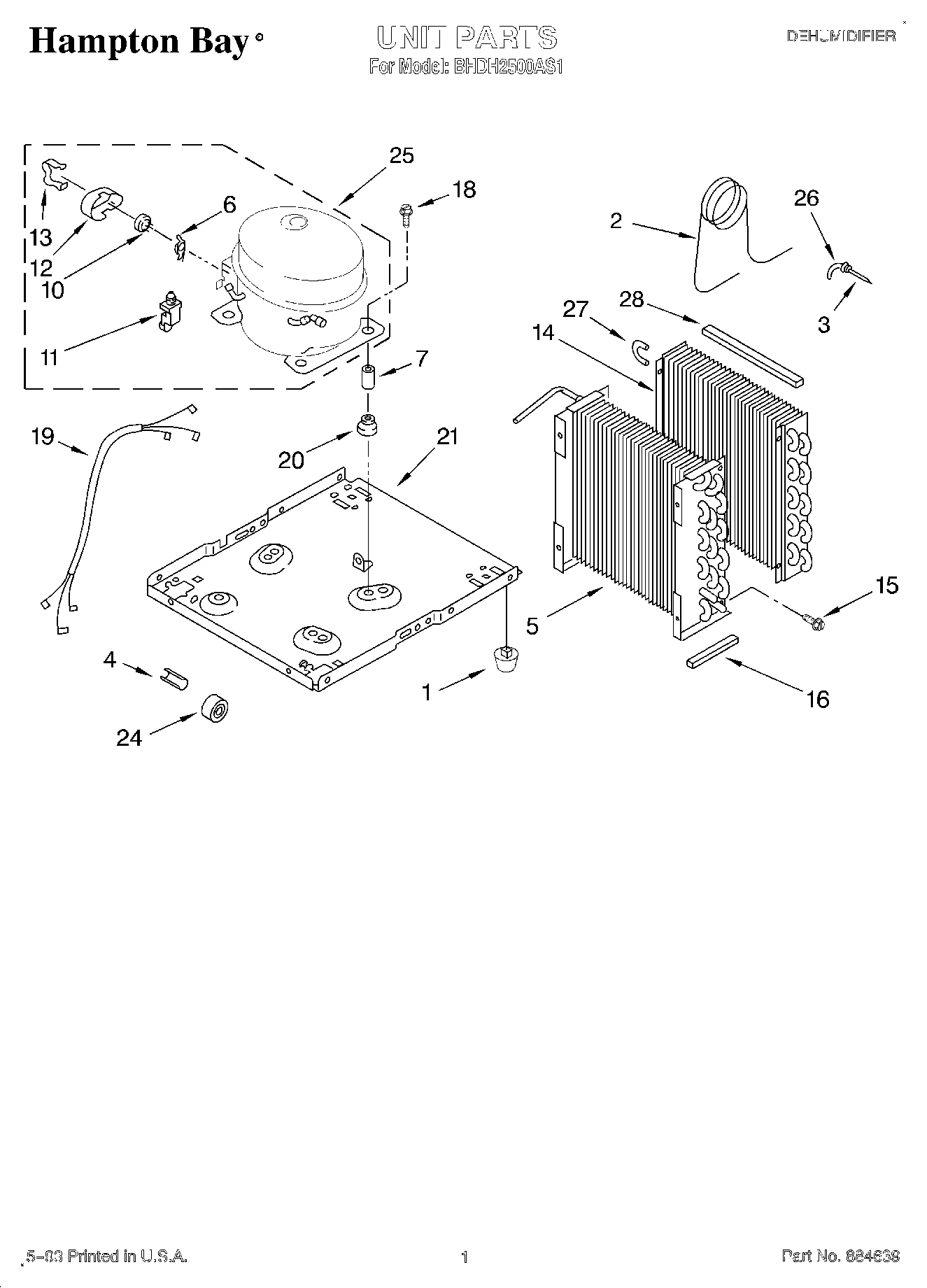

BHDH2500AS1 01 – SECTION

Products

Position	Product
	List, Repair Parts
	WPL LIT1164212
	WPL LIT1164210
	WPL LIT1162709
1	Glide (2)
2	Tube, Restrictor (36.00“ Length)
3	Strainer
4	Pin, Roller (2)
5	Condenser
6	Spring, Overload
7	Sleeve (4)
10	Overload
10	OVERLOAD
11	WP2262181 Whirlpool Refrigerator Start Relay
11	Relay, Start (Production)
12	Cover, Terminal
12	Cover
13	Retainer, Cover
13	Strap
14	Evaporator
15	Screw, 8 x 3/8
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	Harness, Wiring
20	Grommet (4)
21	Base
24	Roller (2)
25	Compressor, (Complete Assembly)
26	Bend, Return Evaporator (11)
27	Bend, Return Evaporator (4)
28	Seal, Evaporator Top
