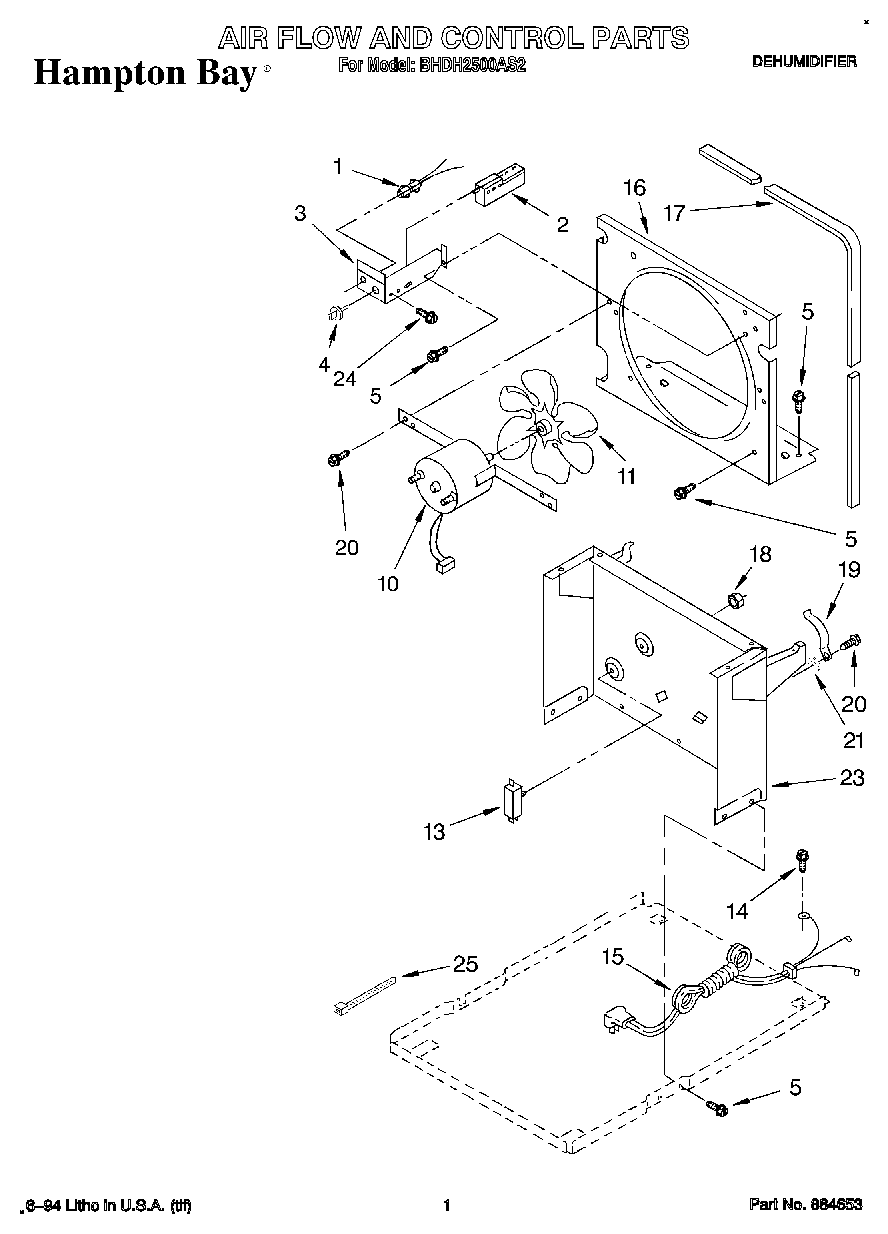

BHDH2500AS2 01 – SECTION

Products

PositionProduct
1Light, Indicator
2Humidistat, Control
3Bracket, Humidistat
4WPL 1162670
5WP489069 Whirlpool Compactor Screw
10Motor, Fan
11Blade, Fan
13Switch, Water Level Control
14WPW10141604 Whirlpool Screw
15Cord, Appliance
16Plate, Orifice
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP488163 Whirlpool Refrigerator Screw
21Washer (Repair) (.062 Thickness)
21Washer, Repair (.045 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
