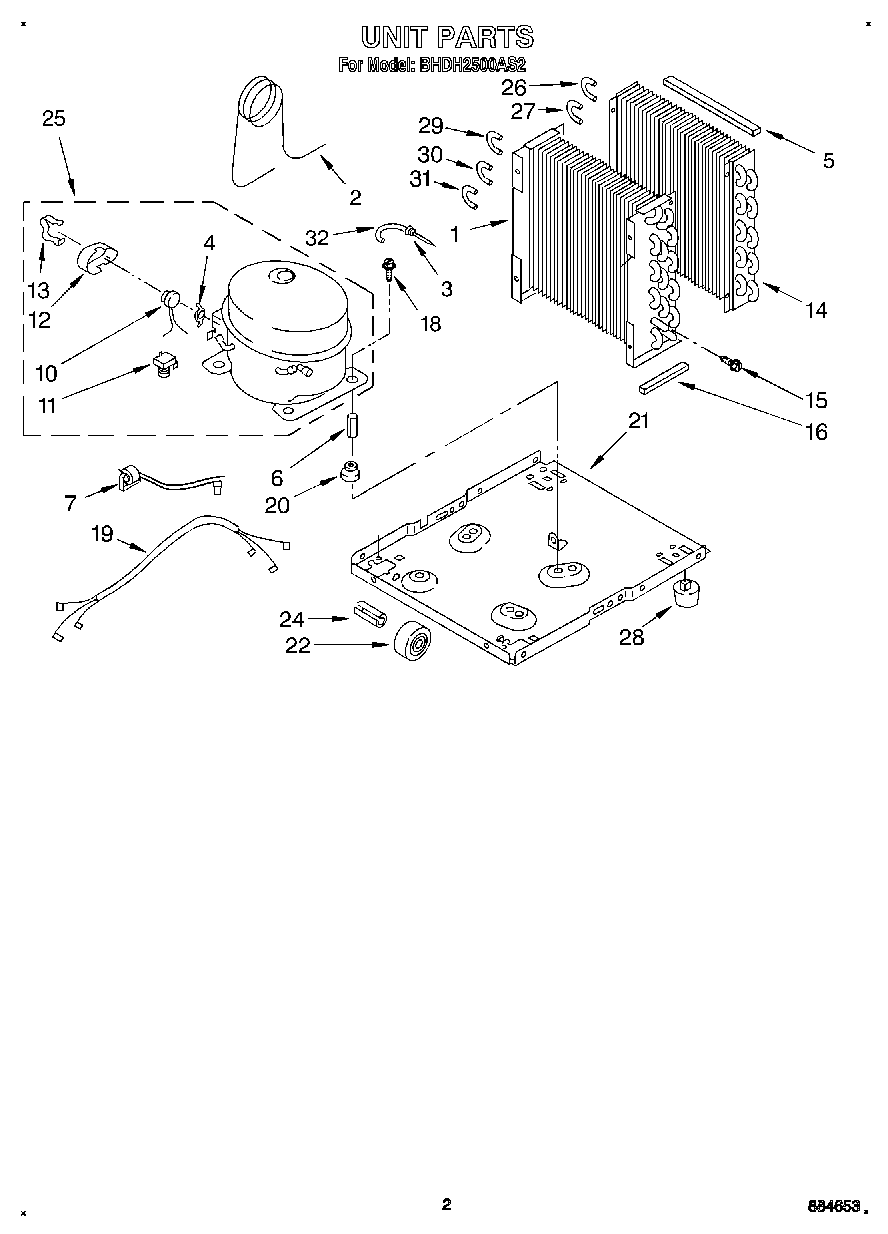

BHDH2500AS2 02 – SECTION

Products

Position	Product
1	Condenser
2	Tube, Restrictor (Length 36.00“)
3	WP1162526 Whirlpool Air Conditioner Strainer
4	Spring, Overload
5	Seal, Evaporator Top
6	Sleeve (4)
7	WPL 1166013
10	WPL 1164775
11	Relay
12	Cover, Terminal
13	Retainer, Cover
14	Evaporator
15	WP489069 Whirlpool Compactor Screw
16	Seal
18	Bolt, 1/4-28 x 1“ (4)
19	WPL 1165265
20	Grommet (4)
21	Base
22	Roller (2)
24	Pin, Roller (2)
25	WPL 1164773
26	Bend, Return Evaporator (4)
27	Bend, Return Evaporator (11)
28	Glide (2)
29	Bend, Return Condenser (1)
30	Bend, Return Condenser (4)
31	Bend, Return Condenser (10)
32	Bend Return
