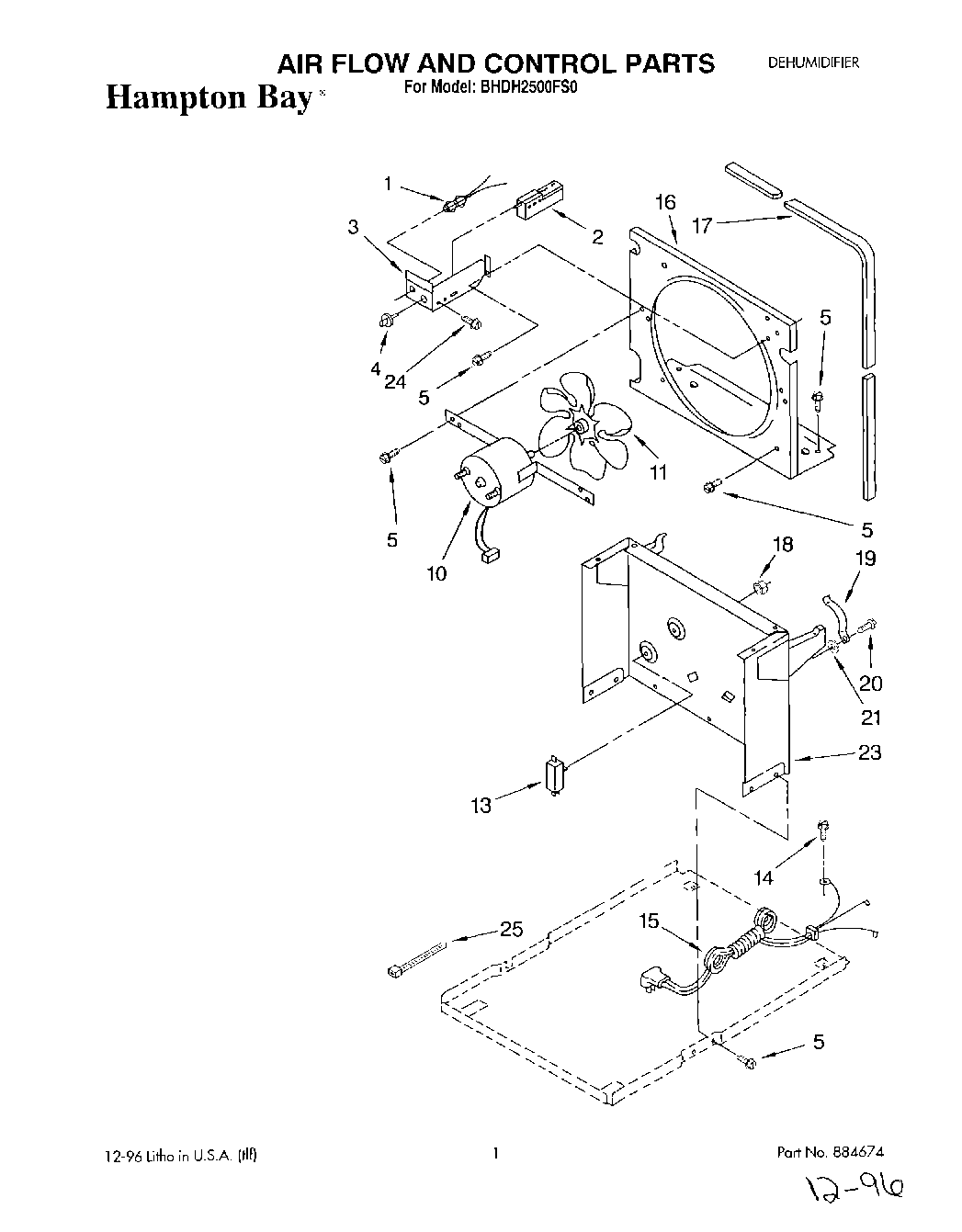

| 1 | Light, Indicator |
| 2 | WPL 1166055 |
| 3 | WPL 1167040 |
| 4 | WPL 1166806 |
| 5 | WP489069 Whirlpool Compactor Screw |
| 10 | Motor, Fan |
| 11 | Blade, Fan |
| 13 | Switch, Water Level Control |
| 14 | WPW10141604 Whirlpool Screw |
| 15 | Cord, Appliance |
| 16 | WPL 1166838 |
| 17 | Seal |
| 18 | Palnut, 3/8-32 |
| 19 | Spring, Water Level |
| 20 | W11624204 Whirlpool Screw |
| 21 | Washer, Repair (.045 Thickness) |
| 21 | WPL 1168324 |
| 23 | Support |
| 24 | Screw 8-18 x .295 |
| 25 | WPW10339879 Whirlpool Wire Tie |
