BHDH2500FS0 02 – SECTION

BHDH2500FS0 02 – SECTION

Written by

in

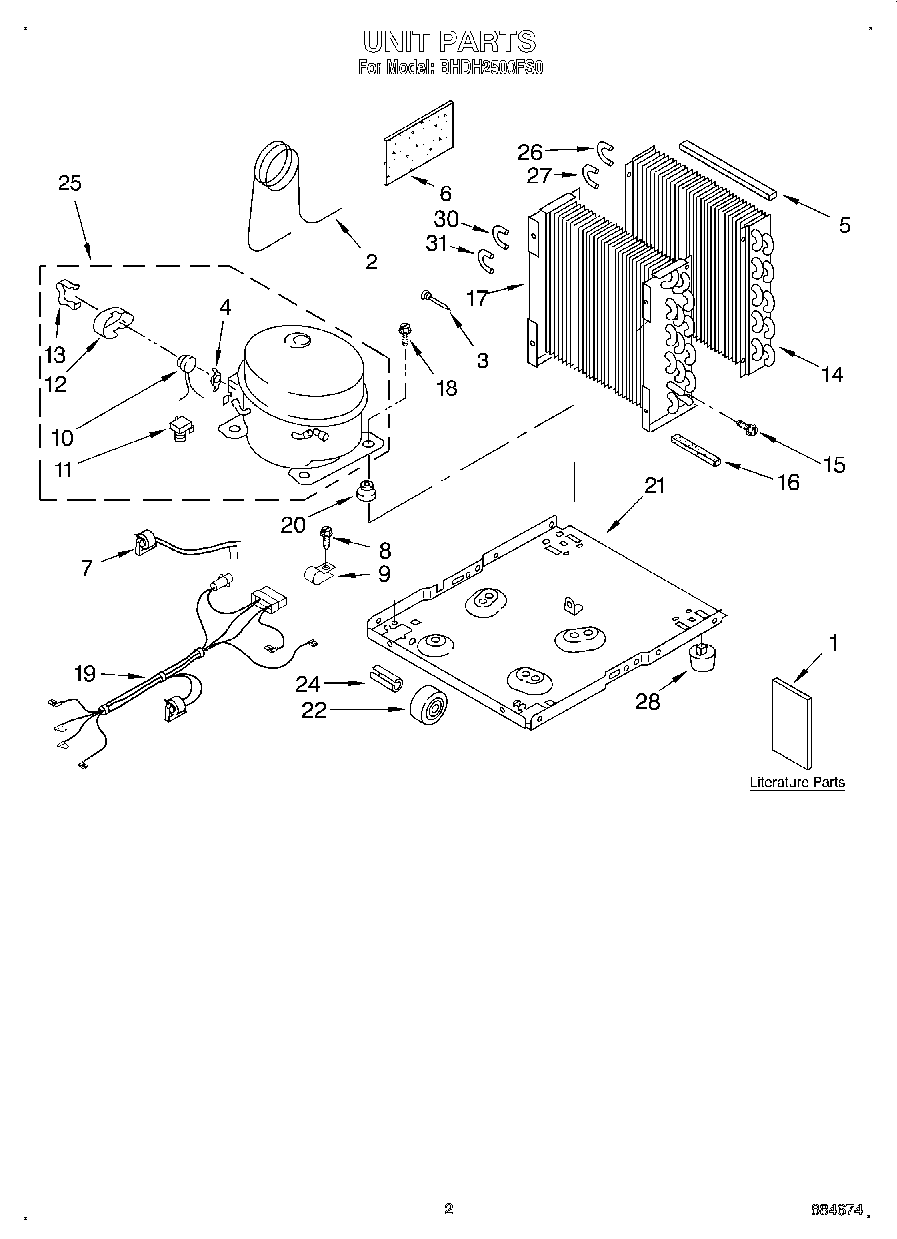

BHDH2500FS0 02 – SECTION

Products

PositionProduct
1WPL LIT1169993
1WPL LIT1166033
1WPL LIT1166032
2Tube, Restrictor (36.0“ Length)
3WP1162526 Whirlpool Air Conditioner Strainer
4Spring, Overload
5Seal, Evaporator Top
6WPL 1162650
7WPL 1166013
8W11624204 Whirlpool Screw
9Relief, Strain
10WPL 1164775
11Relay
12Cover, Terminal
13Retainer, Cover
14WPL 1168184
15WP489069 Whirlpool Compactor Screw
16Seal
17WPL 1167544
18Bolt, 1/4-28 x 1“ (4)
19WPL 1165265
20876811 Whirlpool Grommet
21Base
22Roller (2)
24Pin, Roller (2)
25WPL 1164773
26Bend, Return Evaporator (4)
27Bend, Return Evaporator (11)
28Glide (2)
30Bend, Return Condenser (4)
31Bend, Return Condenser (10)
