BHDH4000AS2 01 – SECTION

BHDH4000AS2 01 – SECTION

Written by

in

BHDH4000AS2 01 – SECTION

Products

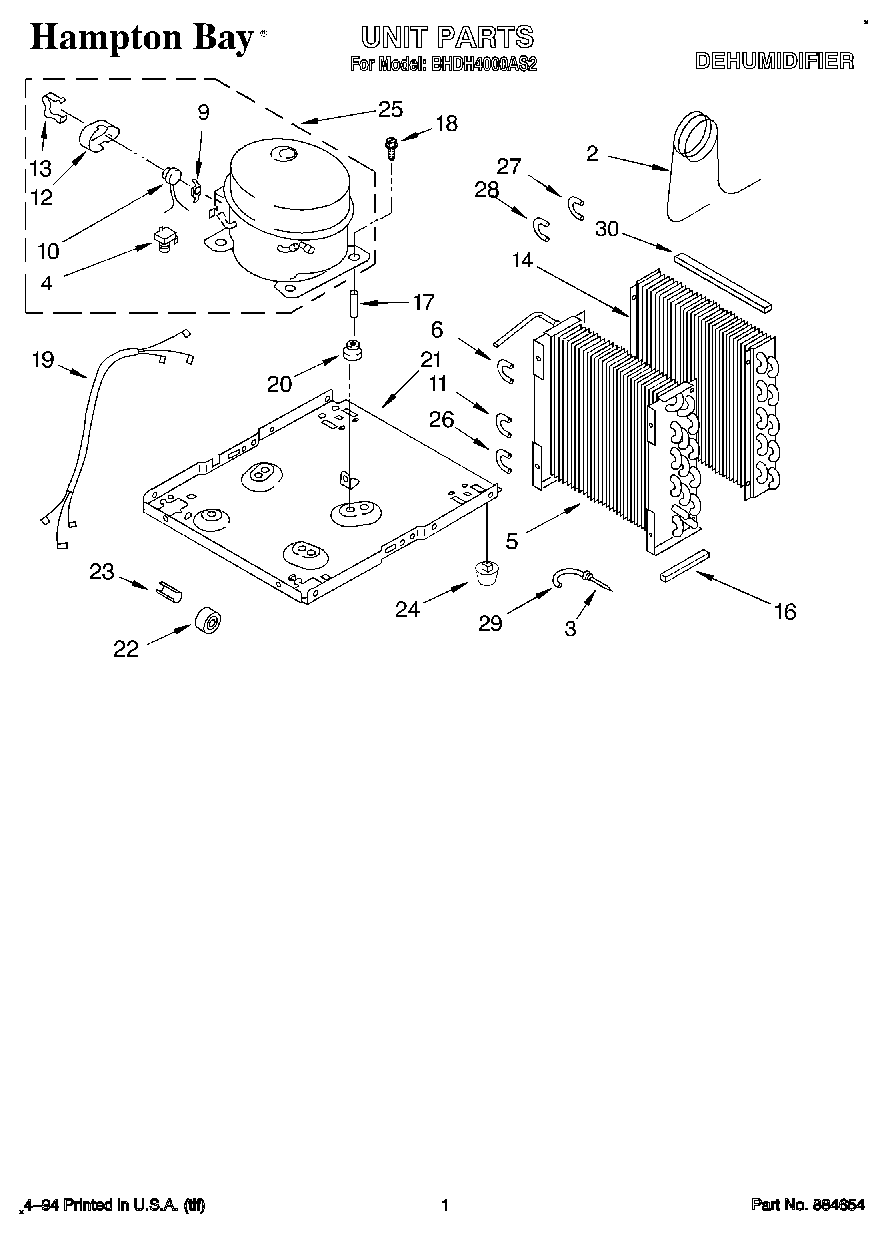

PositionProduct
WPL LIT1165310
WPL LIT1162709
WPL LIT1165327
2Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
4Relay
5Condenser
6Bend, Return Condenser (1)
9Spring, Overload
10Overload
11Bend, Return Condenser (4)
12Cover, Terminal
13Retainer, Cover
14Evaporator
16Seal
17Sleeve (4)
18Bolt, 1/4-28 x 1“ (4)
19WPL 1164816
20Grommet (4)
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25Compressor (Complete Assembly)
26Bend, Return Condenser (10)
27Bend, Return Evaporator (11)
28Bend, Return Evaporator (4)
29Bend Return
30PTC Clamp
30PTC Start Device
30Wire Assy. (2)
30Seal, Evaporator Top
30WP489069 Whirlpool Compactor Screw
