BHDH5000BS1 02 – SECTION

Products

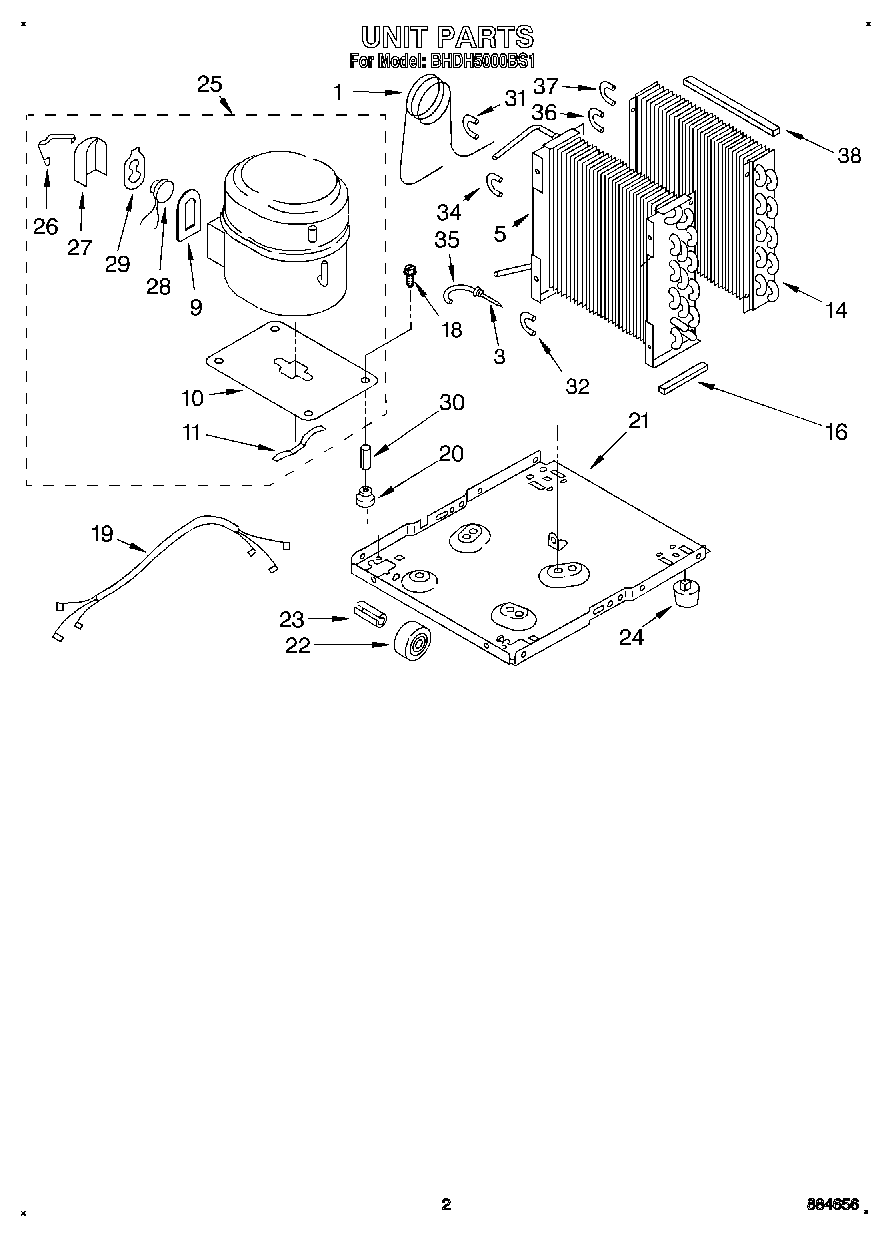

PositionProduct
1Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
5Condenser
9Gasket, Cover
10Plate, Compressor
11Spring, Clip
14Evaporator
16Seal
18Bolt, 1/4-28 x 1“ (4)
19Harness, Wire
20Grommet (4)
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25WPL 1162658
26Retainer, Cover
26Retainer, Cover
27Cover, Terminal
27Cover, Terminal
28Overload
28Overload (Production)
29Spring, Overload
29Spring, Overload
30Sleeve (4)
31Bend, Return Condenser (1)
32Bend, Return Condenser (10)
34Bend, Return Condenser (4)
35Bend Return
36Bend, Return Evaporator (11)
37Bend, Return Evaporator (4)
38Seal, Evaporator Top
