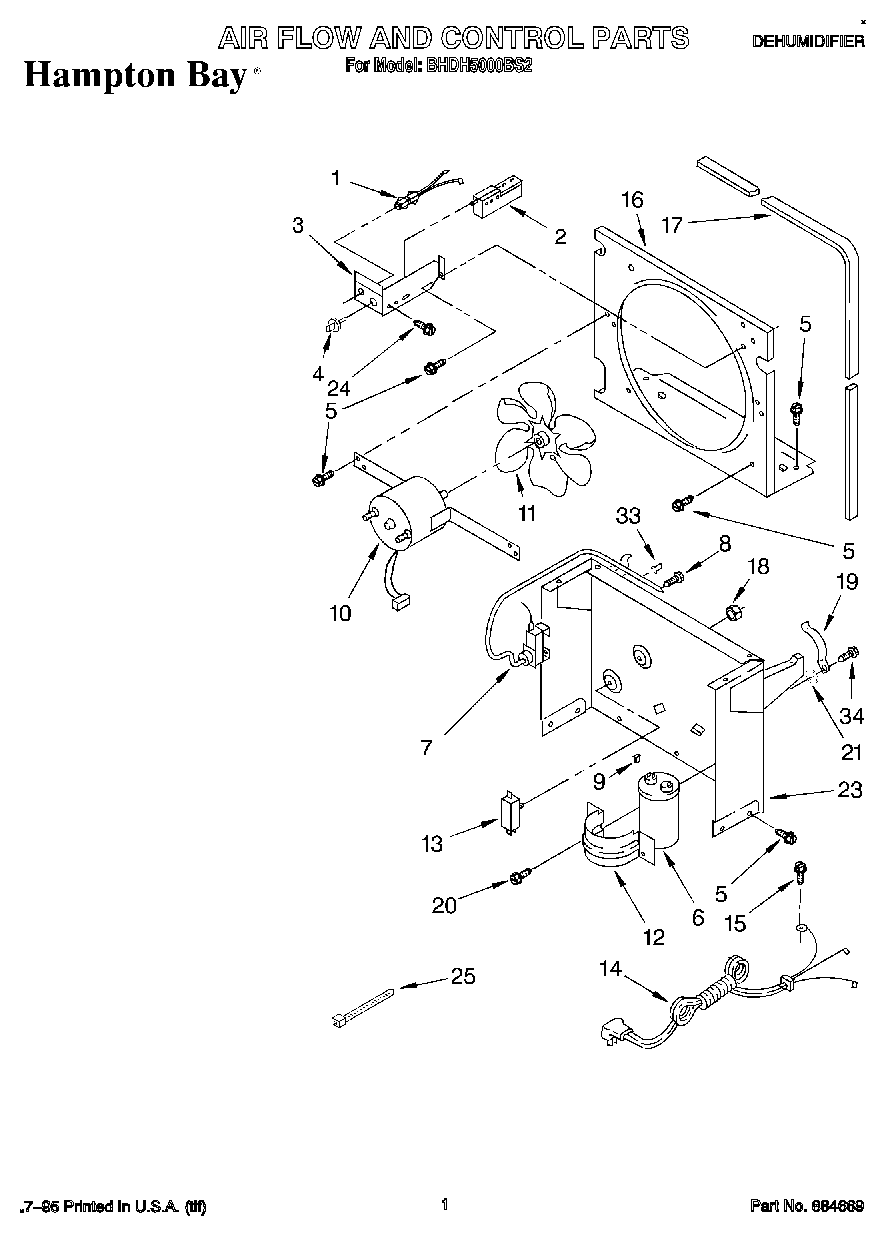

BHDH5000BS2 01 – SECTION

BHDH5000BS2 01 – SECTION

Written by

in

BHDH5000BS2 01 – SECTION

Products

PositionProduct
1Light, Indicator
2WPL 1166055
3Bracket, Humidistat
4WPL 1162670
6WPL 1162586
7WPL 1164779
8WP488234 Whirlpool Air Conditioner Screw
9WPL 1159258
10Motor, Fan
11Blade, Fan
12WPL 1163801
13Switch, Water Level Control
14Cord, Appliance
15WPW10141604 Whirlpool Screw
16WPL 1166838
17Seal
18Palnut, 3/8-32
19Spring, Water Level
20WP489069 Whirlpool Compactor Screw
21Washer (Repair) (.091 Thickness)
21Washer (Repair) (.062 Thickness)
21Washer, Repair (.045 Thickness)
23Support
24WP3177991 Whirlpool Screw
25WPW10339879 Whirlpool Wire Tie
33Clamp, Tube To Evaporator Mtg (2)
34Screw 8-18 x 5/8
