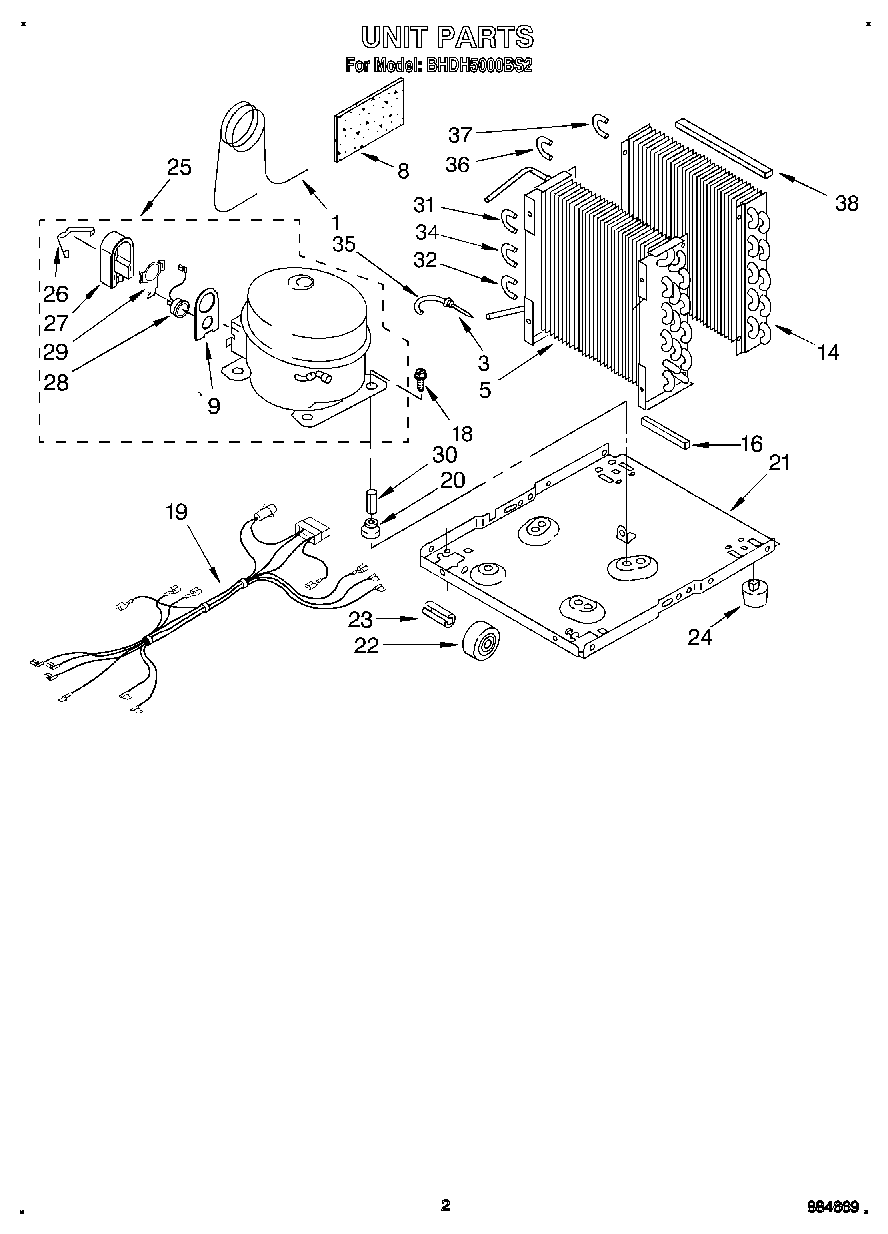

BHDH5000BS2 02 – SECTION

Products

PositionProduct
1Tube, Restrictor (Length 36.00“)
3WP1162526 Whirlpool Air Conditioner Strainer
5Condenser
8WPL 1162650
9WPL 1167017
14Evaporator
16Seal
18Bolt, 1/4-28 x 1“ (4)
19WPL 1167026
20Grommet (4)
21Base
22Roller (2)
23Pin, Roller (2)
24Glide (2)
25WPL 1167003
26WPL 1167006
27WPL 1167005
28WPL 1167004
29WPL 1167008
30Sleeve (4)
31Bend, Return Condenser (1)
32Bend, Return Condenser (10)
34Bend, Return Condenser (4)
35Bend Return
36Bend, Return Evaporator (11)
37Bend, Return Evaporator (4)
38Seal, Evaporator Top
