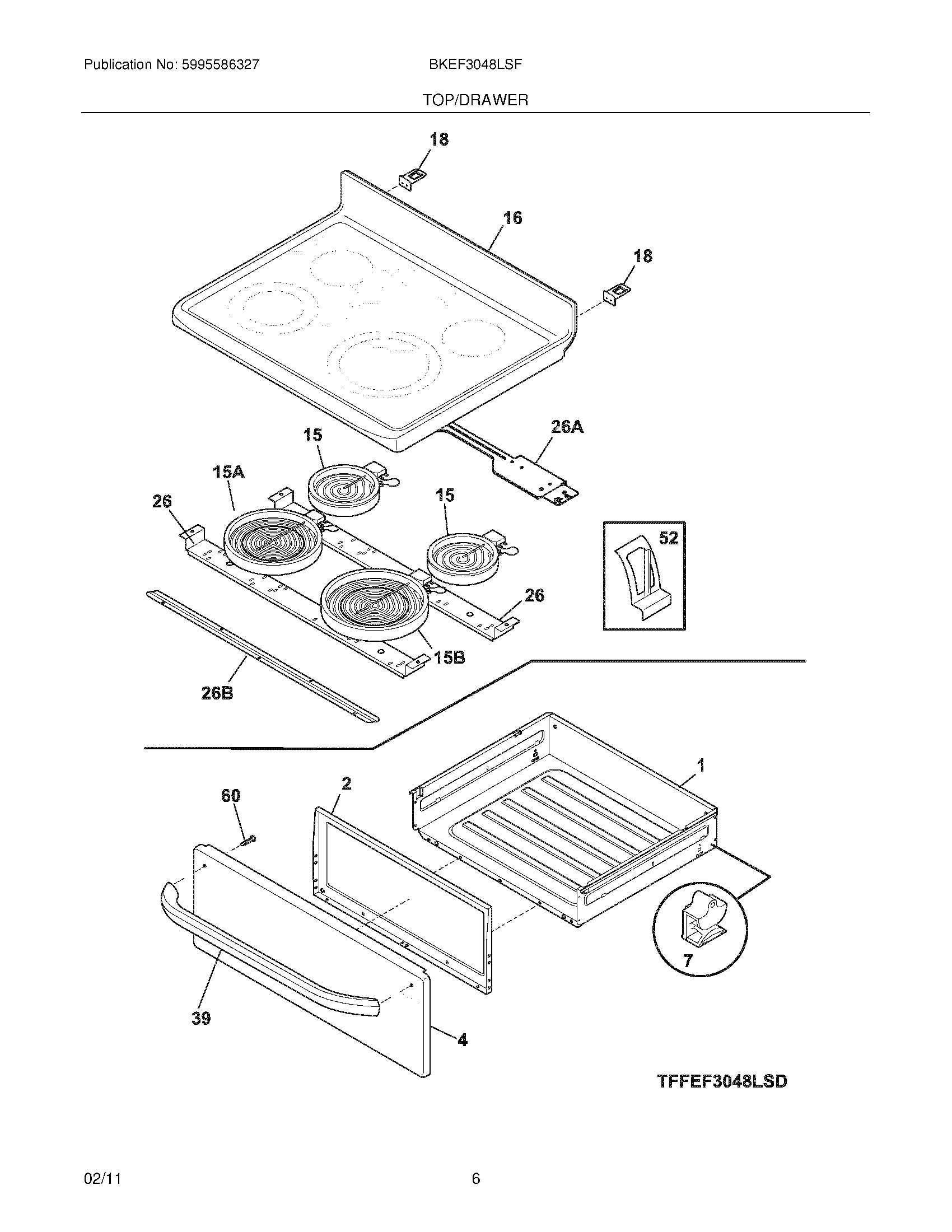

BKEF3048LSF 07 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 316580403
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
NI	316468101 Frigidaire Cleaner Assembly
NI	5308014215 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	WCI 5303935275
7	316407402 Frigidaire Range Drawer Glide
15	318178110 Frigidaire Oven Range 6" Surface Element
15A	DUAL RADIANT ELEMENT
15B	316291200 Frigidaire Oven Range 12" 2700W Radiant Surface Element
16	316531983 Frigidaire Oven Main
18	316580800 Frigidaire Hinge Bracket
26B	WCI 316214202
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
39	316558201 Frigidaire Oven Handle
52	316461700 Frigidaire Oven Clip Assembly
60	5304414648 Frigidaire Oven Screw
