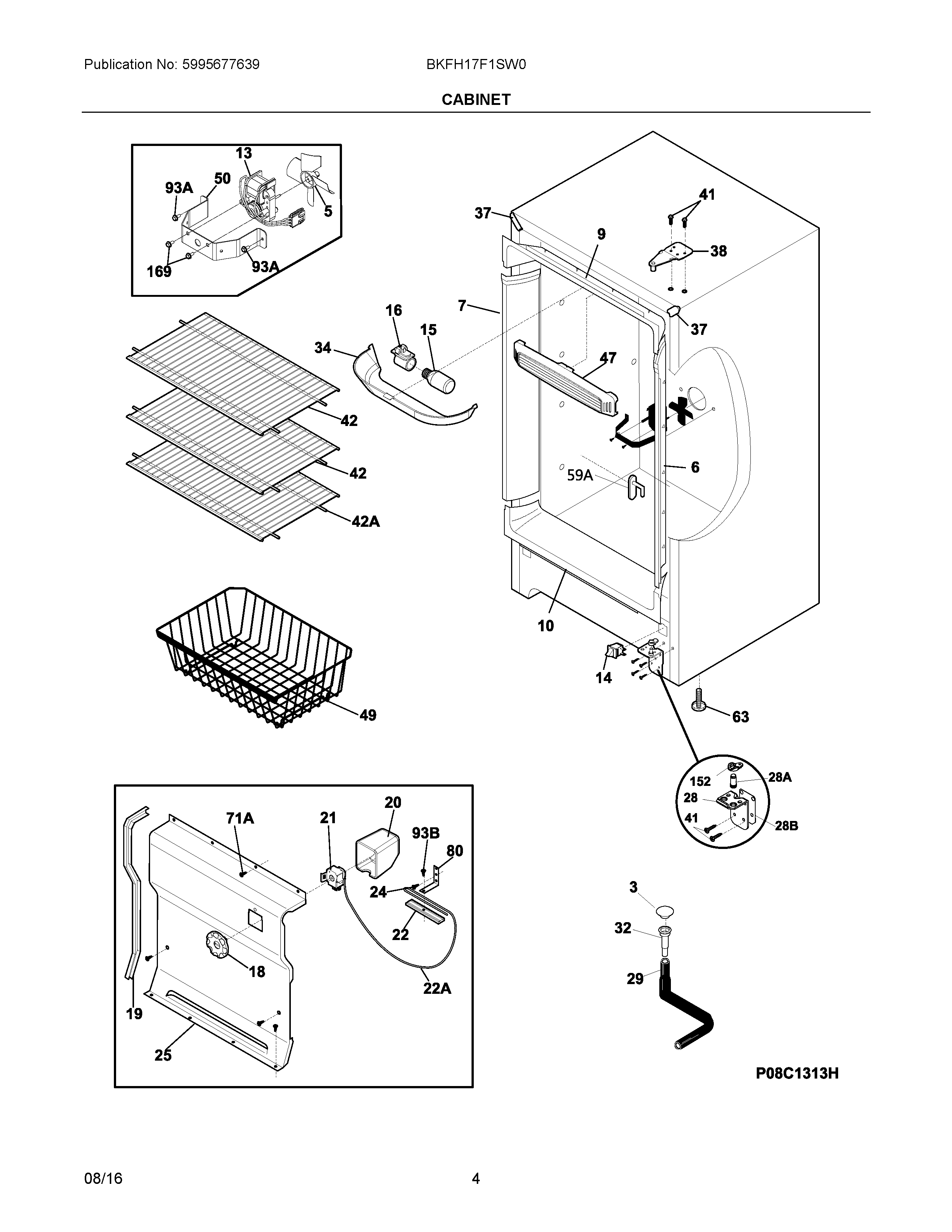

BKFH17F1SW0 03 – CABINET

BKFH17F1SW0 03 – CABINET

Written by

in

BKFH17F1SW0 03 – CABINET

Products

PositionProduct
NIABracket,LH leg levelor
NI297001704 Frigidaire Refrigerator Insulation
NI216502400 Frigidaire Refrigerator Grommet Unit
NI216337701 Frigidaire Refrigerator Screw
NIBBracket,RH leg levelor
NIWCI 5303313703
NI5304498525 Frigidaire Service Data Sheet
3216503100 Frigidaire Refrigerator Screen-Drain
55304513294 Frigidaire Refrigerator Freezer Fan Blade
6297435601 Frigidaire Breaker
7297435600 Frigidaire Refrigerator Breaker
9297403901 Frigidaire Refrigerator Breaker
10297403902 Frigidaire Refrigerator Breaker
12WCI 242062801
13EVAP FAN MOTOR – 115V
14216822900 Frigidaire Refrigerator Switch
155304517886 Frigidaire Refrigerator Light
16297139501 Frigidaire Refrigerator Socket
18216707200 Frigidaire Refrigerator Cold Control Knob
19216204902 Frigidaire Refrigerator Gasket-Evaporator Cover
20216967201 Frigidaire Refrigerator Temp Control Cover
215304513033 Frigidaire Refrigerator Temperature Control
22CLAMP, CAP TUBE, COLD CONTROL
22ATUBE
24Screw,type A ,10-24 x 3/8
25WCI 297099250
26297415900 Frigidaire Door Closer Ramp
28A297438300 Frigidaire Refrigerator Pin
28297416301 Frigidaire Refrigerator Hinge
295304512272 Frigidaire Hose Drain
325304511843 Frigidaire Refrigerator Sleeve
34WCI 297184400
37297273904 Frigidaire Refrigerator Corner Cabinet Trim
38297283803 Frigidaire Freezer Upper Door Hinge
41240578902 Frigidaire Screw Mounting Hinge
42WCI 297441905
42A297441901 Frigidaire Refrigerator Shelf
47297192903 Frigidaire Refrigerator Baffle
50216394050 Frigidaire Refrigerator Bracket
59ASTOP-BASKET, (2)
59WCI 5304497659
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
71AScrew,8-18AB x.470 QX
80WCI 06594601
93A241853202 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
93B216036601 Frigidaire Refrigerator Screw
1525304511026 Frigidaire Refrigerator Freezer Hinge Bearing
169216912401 Frigidaire Refrigerator Screw
