BLB14BRANA0 06 – PUMP, WASHARM AND MOTOR PARTS

BLB14BRANA0 06 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

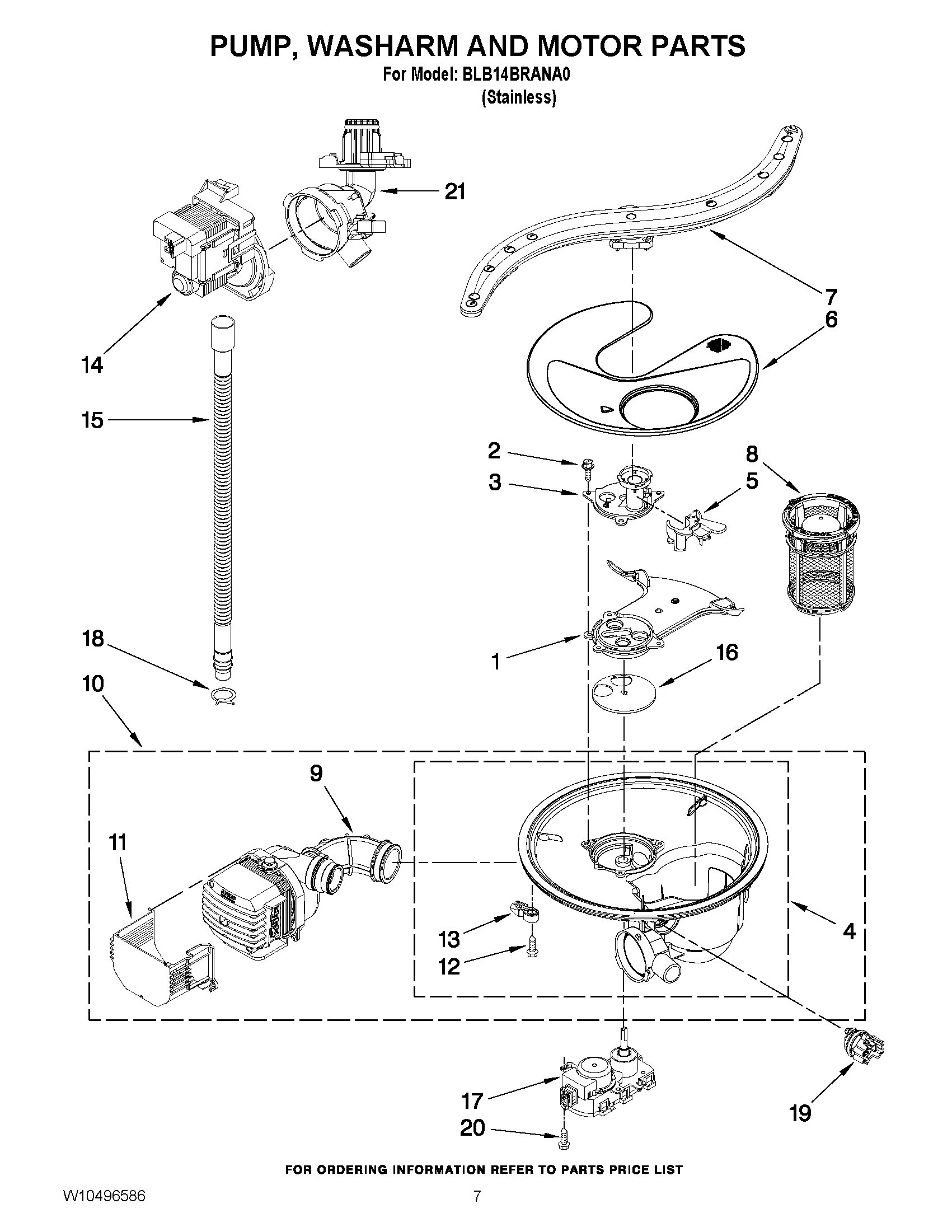

BLB14BRANA0 06 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1Cover, Sieve
2SCREW
3COVER, OUTLET
4W10168822 Whirlpool Dishwasher Sump Assembly
5Retainer, Feed Tube
6WP8579253 Whirlpool Screen Filter
7ARM-SPRAY
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9HOSE, INLET (INCLUDES 3 HOSE CLAMPS)
10WPW10418332 Whirlpool Dishwasher Pump and Motor
118579272 Whirlpool Shield
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14WPW10348269 Whirlpool Washer Drain Pump
158269144A Whirlpool Dishwasher Drain Hose
16Disc-Valve Diverter
17MOTOR-DIVERTER DW
18WP8269146 Whirlpool Dishwasher Clamp
19WPW10705575 Whirlpool Dishwasher Sensor
20WP9741232 Whirlpool Dishwasher Screw
21WPW10179455 Whirlpool Housing Drain Pump
