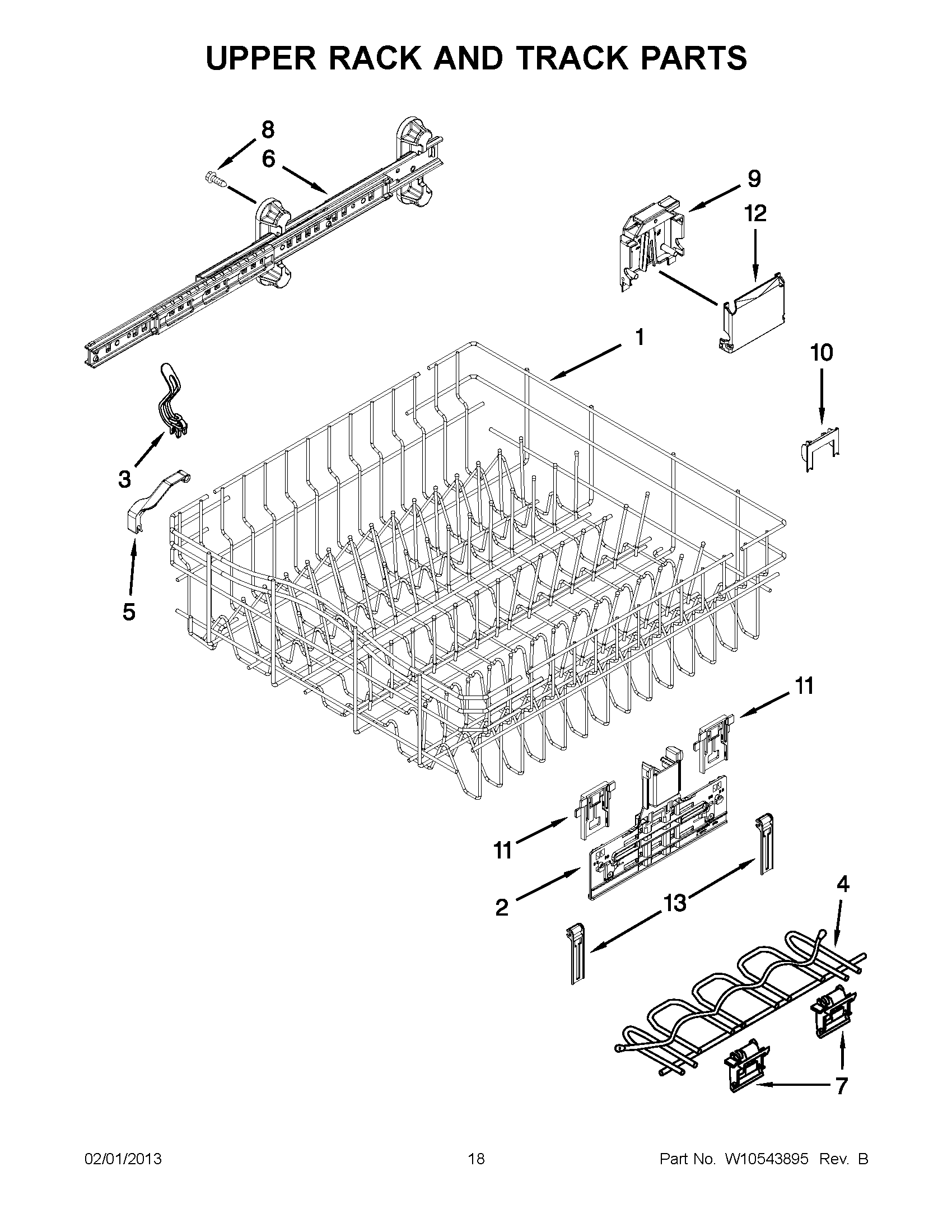

BLB14DRANA0 09 – UPPER RACK AND TRACK PARTS

BLB14DRANA0 09 – UPPER RACK AND TRACK PARTS

Written by

in

BLB14DRANA0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10194864 Whirlpool Dishwasher Dishrack
2WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
3W10238406 Whirlpool Dishwasher Clip
4W11238398 Whirlpool Dishwasher Cup Shelf
5WPW10267076 Whirlpool Guard Clip
6W11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
6W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
7MOUNT, CUPSHELF
8WPW10309090 Whirlpool Dishwasher Screw
9WPW10588165 Whirlpool Adjuster Housing
9WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
10W10418320 Whirlpool Dishwasher Clip
11WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
12COVER
13W11214484 Whirlpool Dishwasher Adjuster
