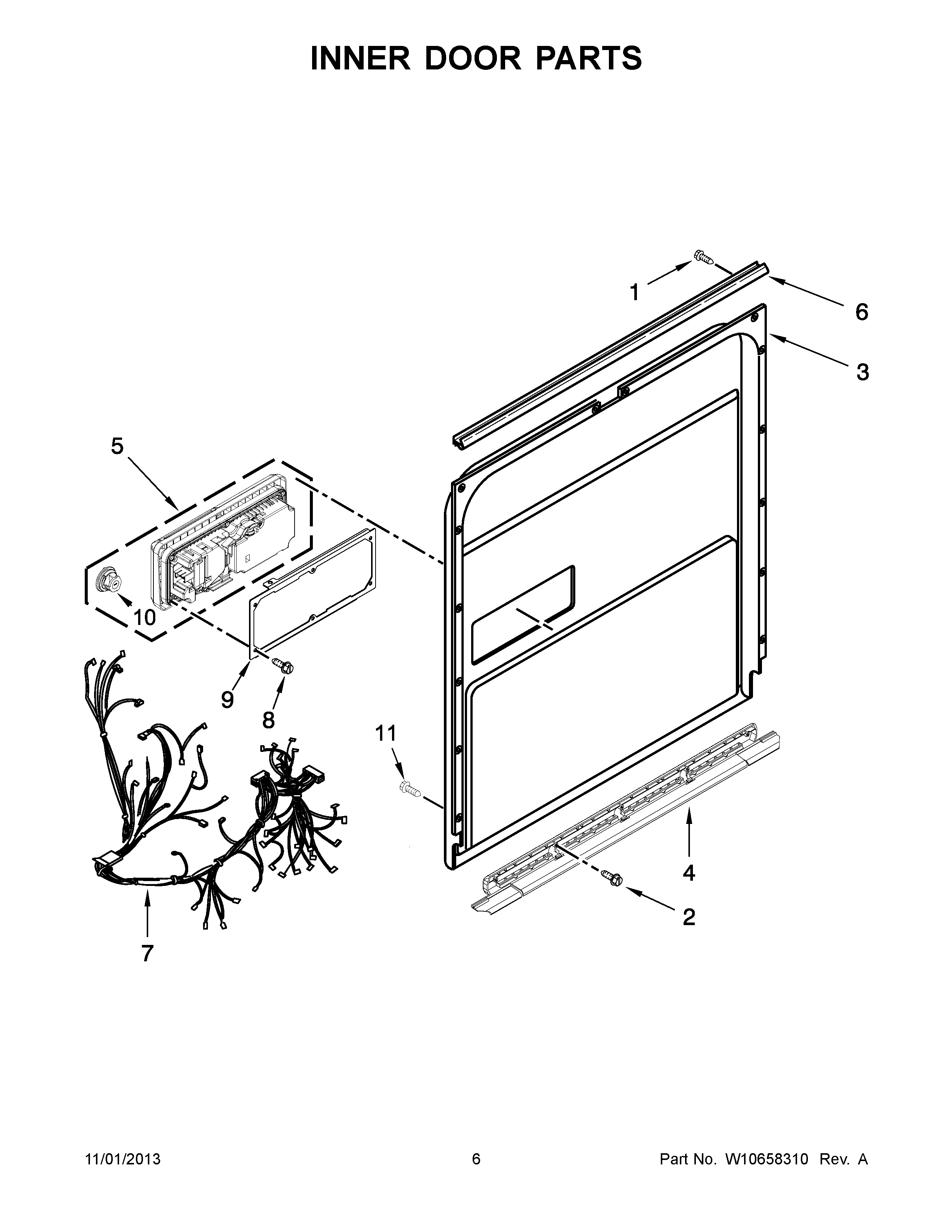

BLB14DRANA2 04 – INNER DOOR PARTS

BLB14DRANA2 04 – INNER DOOR PARTS

Written by

in

BLB14DRANA2 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10309090 Whirlpool Dishwasher Screw
2W11631670 Whirlpool Screw
3WPW10480715 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10460801 Whirlpool Dispenser Assembly
6WPW10195007 Whirlpool Dishwasher Seal
7WPW10518615 Whirlpool Wire Harness
8WPW10177098 Whirlpool Dishwasher Screw
9WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
10WPW10524919 Whirlpool Dishwasher Dispenser Cap
11WPW10348409 Whirlpool Screw
