BLB14DRANA4 02 – DOOR AND PANEL PARTS

BLB14DRANA4 02 – DOOR AND PANEL PARTS

Written by

in

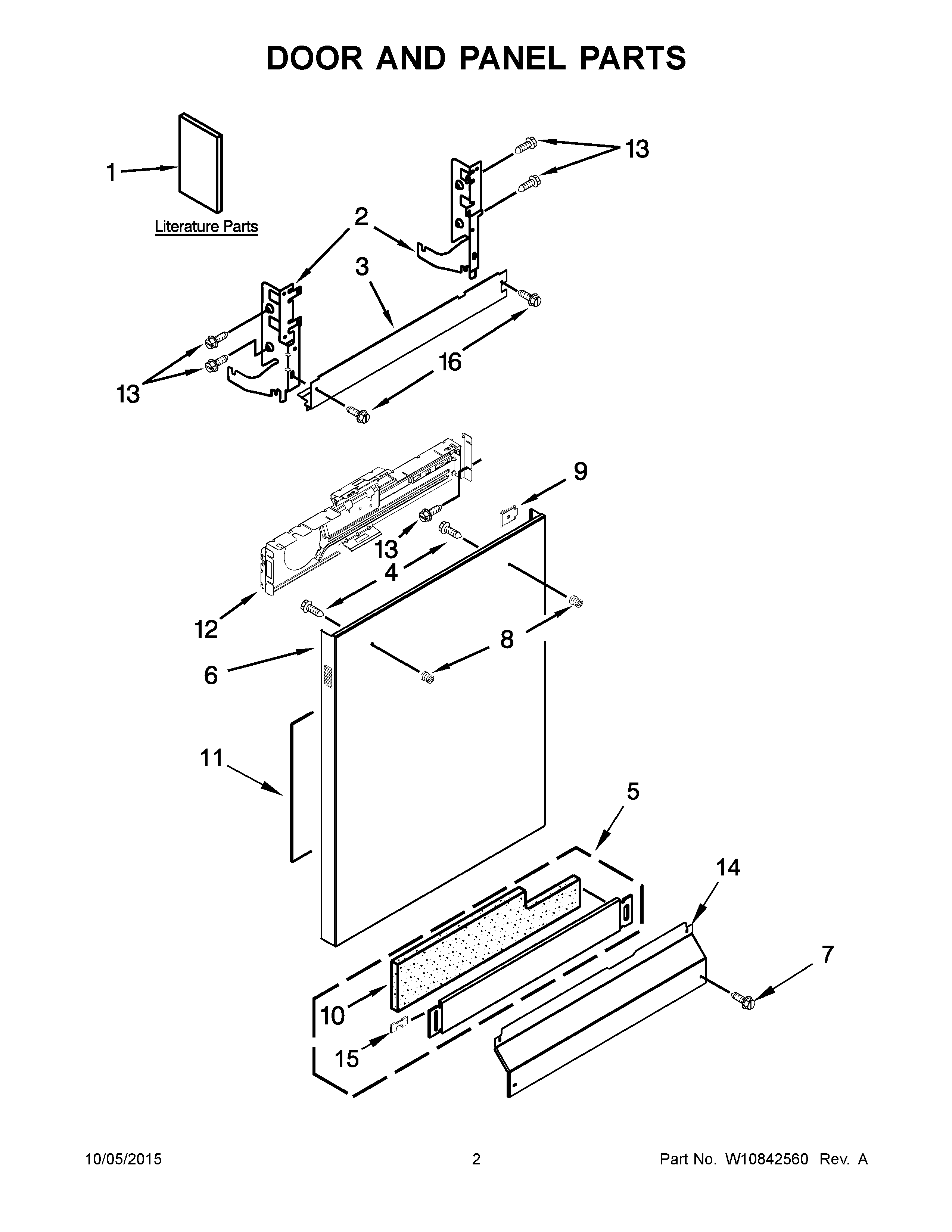

BLB14DRANA4 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE, PORTUGUESE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5W10871196 Whirlpool Toekick Plate
6WPW10474113 Whirlpool Panel
7WP302868 Whirlpool Screw
8W11157086 Whirlpool Dishwasher Door Handle Stud
9W10319007 Whirlpool Dishwasher Indicator Light
10SHIELD
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W10909064 Whirlpool Dishwasher Black Access Panel
15WP8269016 Whirlpool Clip Assembly
16WP489069 Whirlpool Compactor Screw
