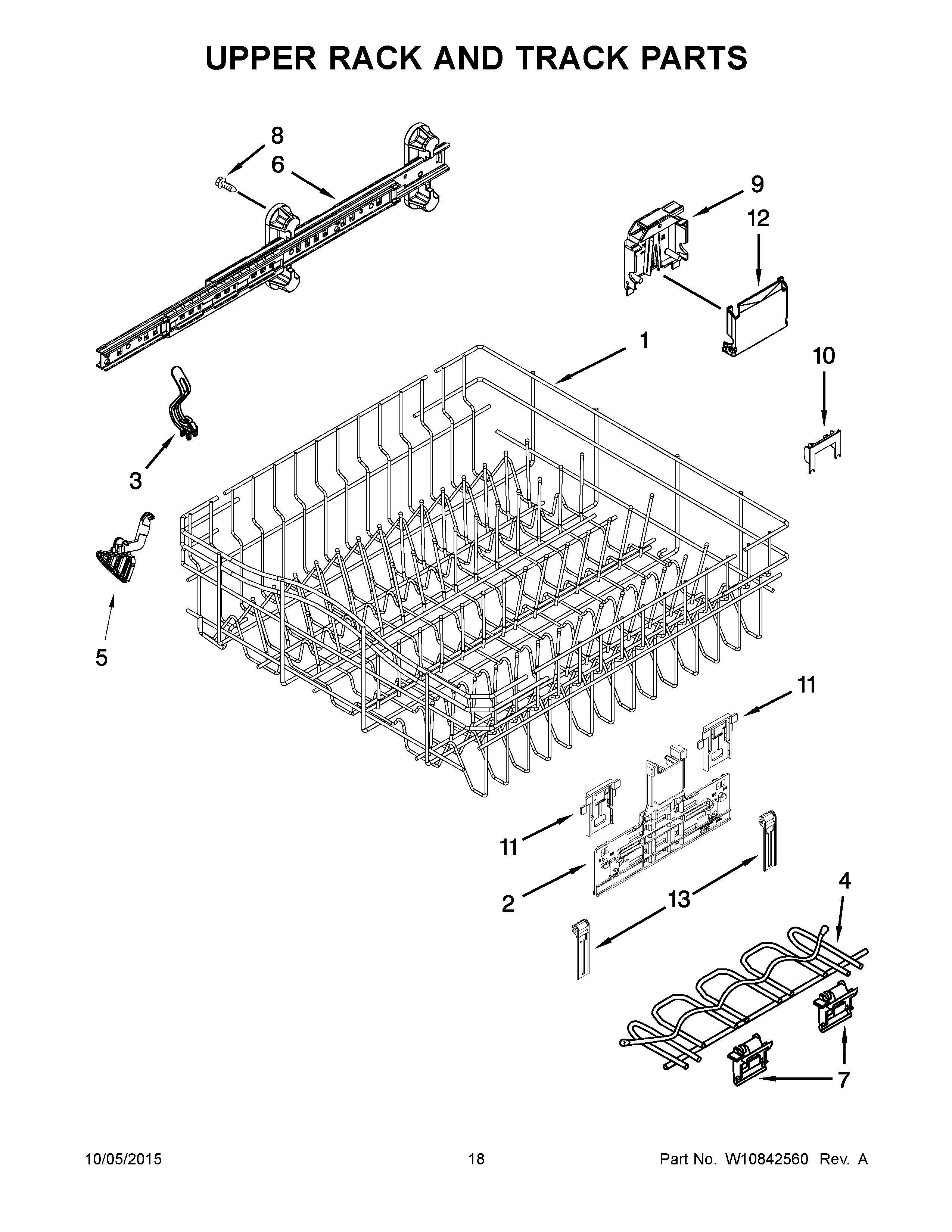

BLB14DRANA4 10 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10194864 Whirlpool Dishwasher Dishrack
2WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
3WP8539101 Whirlpool Dishwasher Clip
4W11238398 Whirlpool Dishwasher Cup Shelf
5W10919676 Whirlpool Dishwasher Dispenser Guard Clip
6W11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
6AW11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
78562026 Whirlpool Dishwasher Clip
8WPW10309090 Whirlpool Dishwasher Screw
9WPW10588165 Whirlpool Adjuster Housing
9AWPW10588164 Whirlpool Left Hand Housing Rack Adjuster
10WPW10250160 Whirlpool Clip
11WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
12COVER
13WPW10195839 Whirlpool Dishwasher Rack Adjuster
