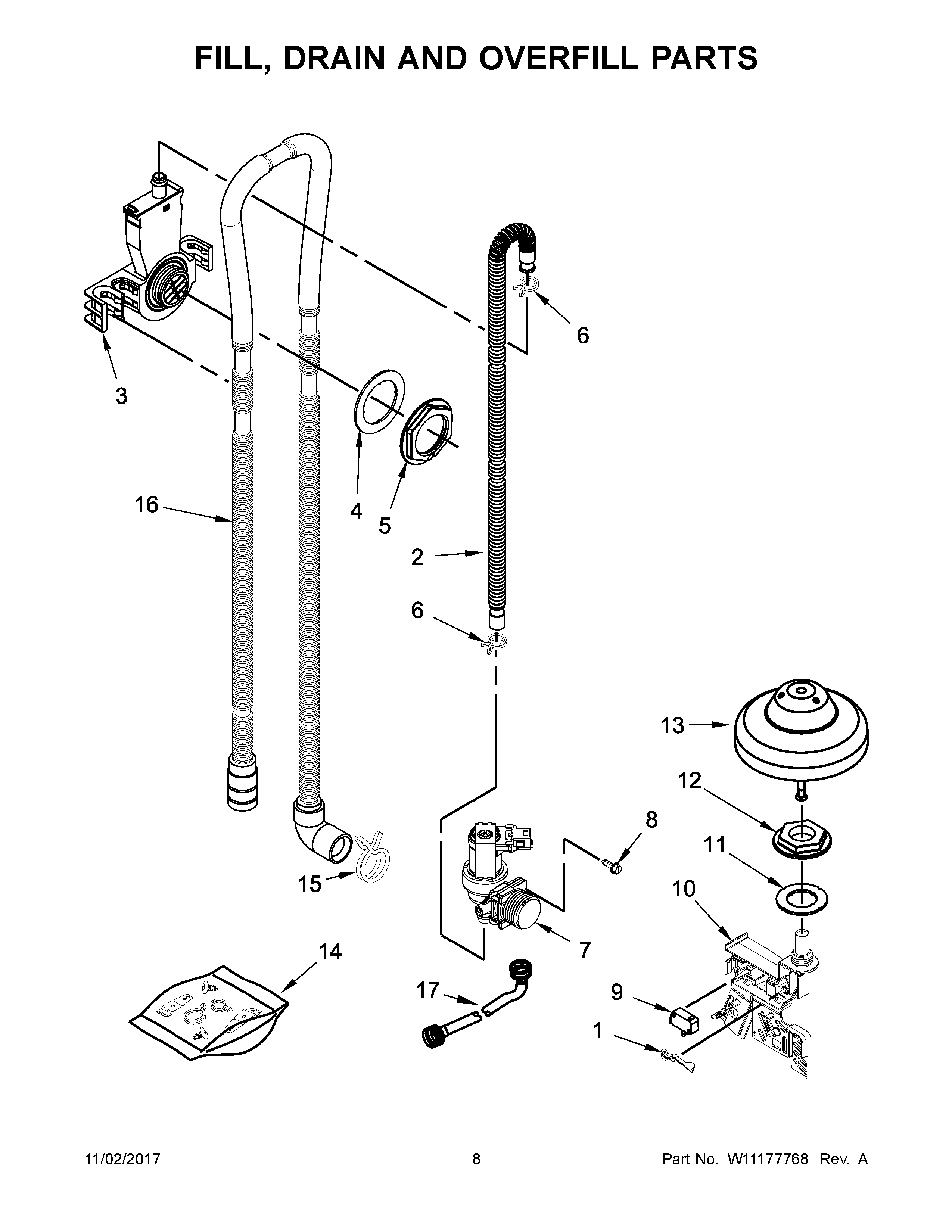

BLB14DRANA5 05 – FILL, DRAIN AND OVERFILL PARTS

BLB14DRANA5 05 – FILL, DRAIN AND OVERFILL PARTS

Written by

in

BLB14DRANA5 05 – FILL, DRAIN AND OVERFILL PARTS

Products

PositionProduct
1WPW10195037 Whirlpool Lever Assembly
2W10878507 Whirlpool Inlet Hose
3WPW10195536 Whirlpool Water Inlet Valve
4WP8531323 Whirlpool Gasket Seal
5WPW10213825 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10327249 Whirlpool Dishwasher Water Inlet Fill Valve
8WP489069 Whirlpool Compactor Screw
9WPW10195039 Whirlpool Dishwasher Float Switch
10W10873429 Whirlpool Housing
11WP8531743 Whirlpool Dishwasher Float Switch Base Gasket
12WPW10195038 Whirlpool Dishwasher Nut
13WPW10195036 Whirlpool Dishwasher Float
14WPW10292152 Whirlpool Hardware Kit
15WP285655 Whirlpool Hose Clamp
16WPW10545278 Whirlpool Drain Hose
17WPW10489643 Whirlpool Fill Hose
