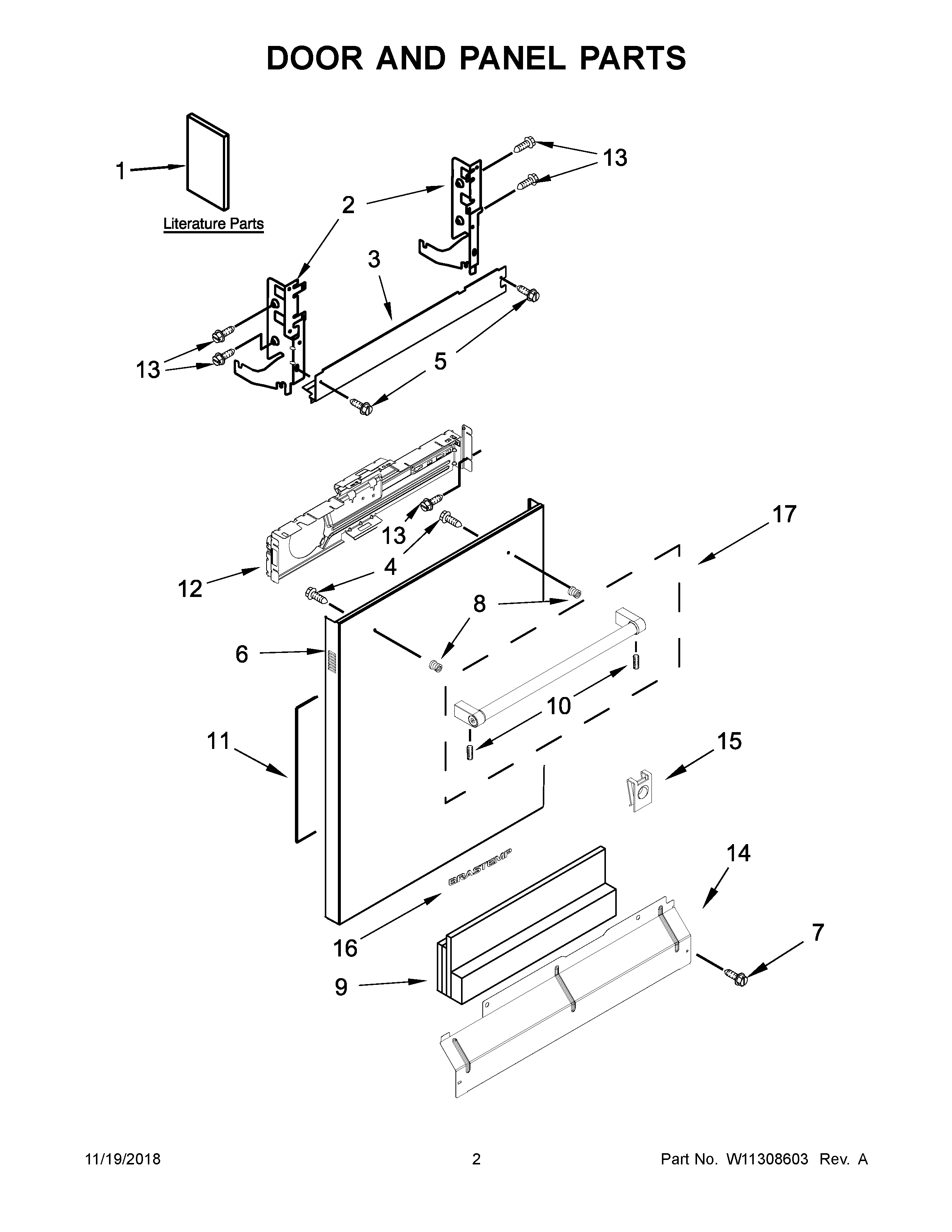

BLB14FRANA0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10826179 Whirlpool Dishwasher Screw
5WP489069 Whirlpool Compactor Screw
6FRONT PANEL (INCLUDES 4, 8 & 16) (STAINLESS)
7WP302868 Whirlpool Screw
8W11157086 Whirlpool Dishwasher Door Handle Stud
9SHIELD
10W10917698 Whirlpool Dishwasher Screw
11WPW10073520 Whirlpool Dishwasher Insulation Pad
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W10909064 Whirlpool Dishwasher Black Access Panel
15W10910629 Whirlpool Dishwasher Nut
16WPL W11292869
17HANDLE ASSEMBLY (STAINLESS)
