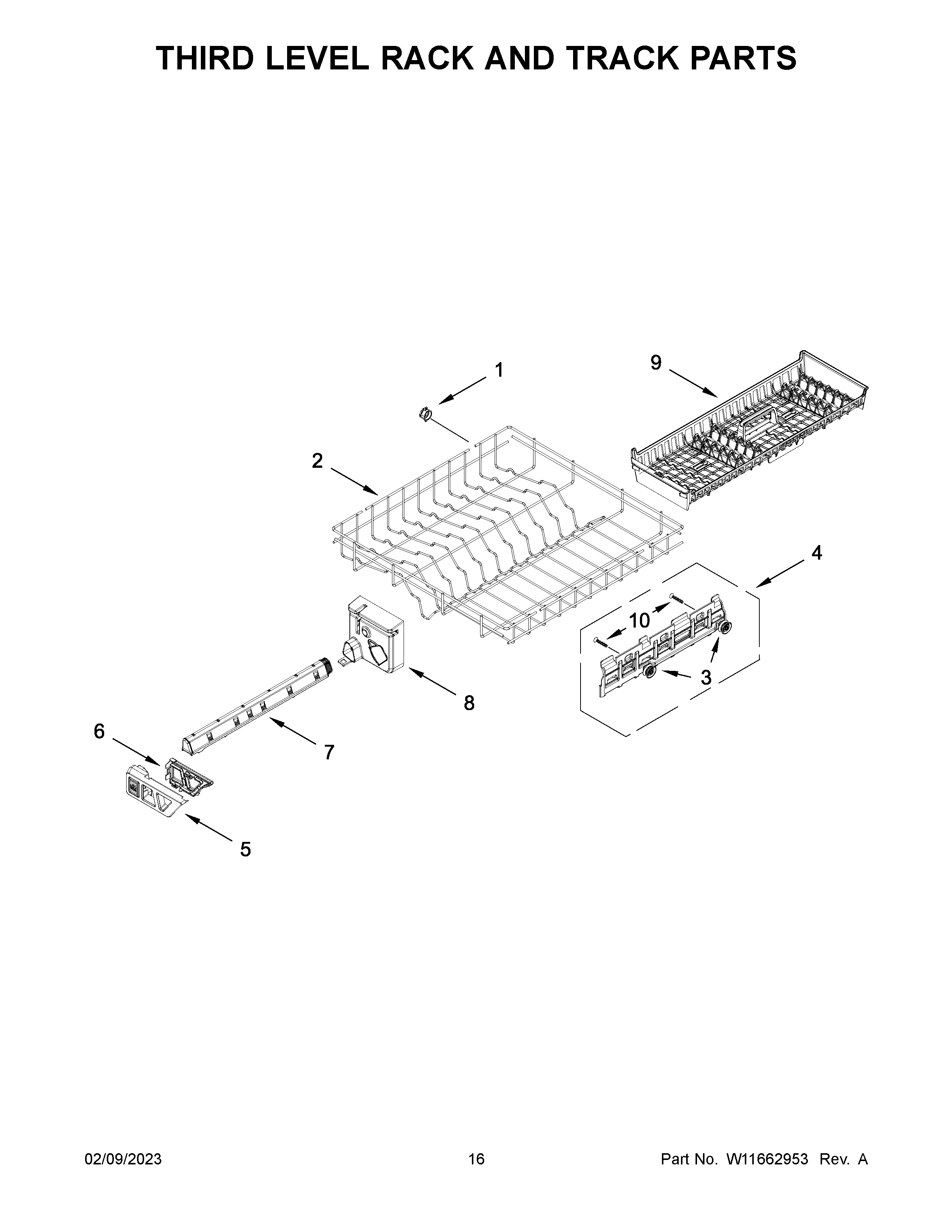

BLB14GRANA2 09 – THIRD LEVEL RACK AND TRACK PARTS

BLB14GRANA2 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

BLB14GRANA2 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1W11545286 Whirlpool Nut
2W11127770 Whirlpool Dishrack
3W11545296 Whirlpool Roller
4W11551395 Whirlpool Mounting Clip
4AW11569162 Whirlpool Mount
5W11305291 Whirlpool Manifold
6W11193057 Whirlpool Manifold Assembly
7W11175552 Whirlpool Feed Tube Assembly
8W11175564 Whirlpool Manifold Assembly
9W11690650 Whirlpool Basket Ware
10W11708397 Whirlpool Screw
